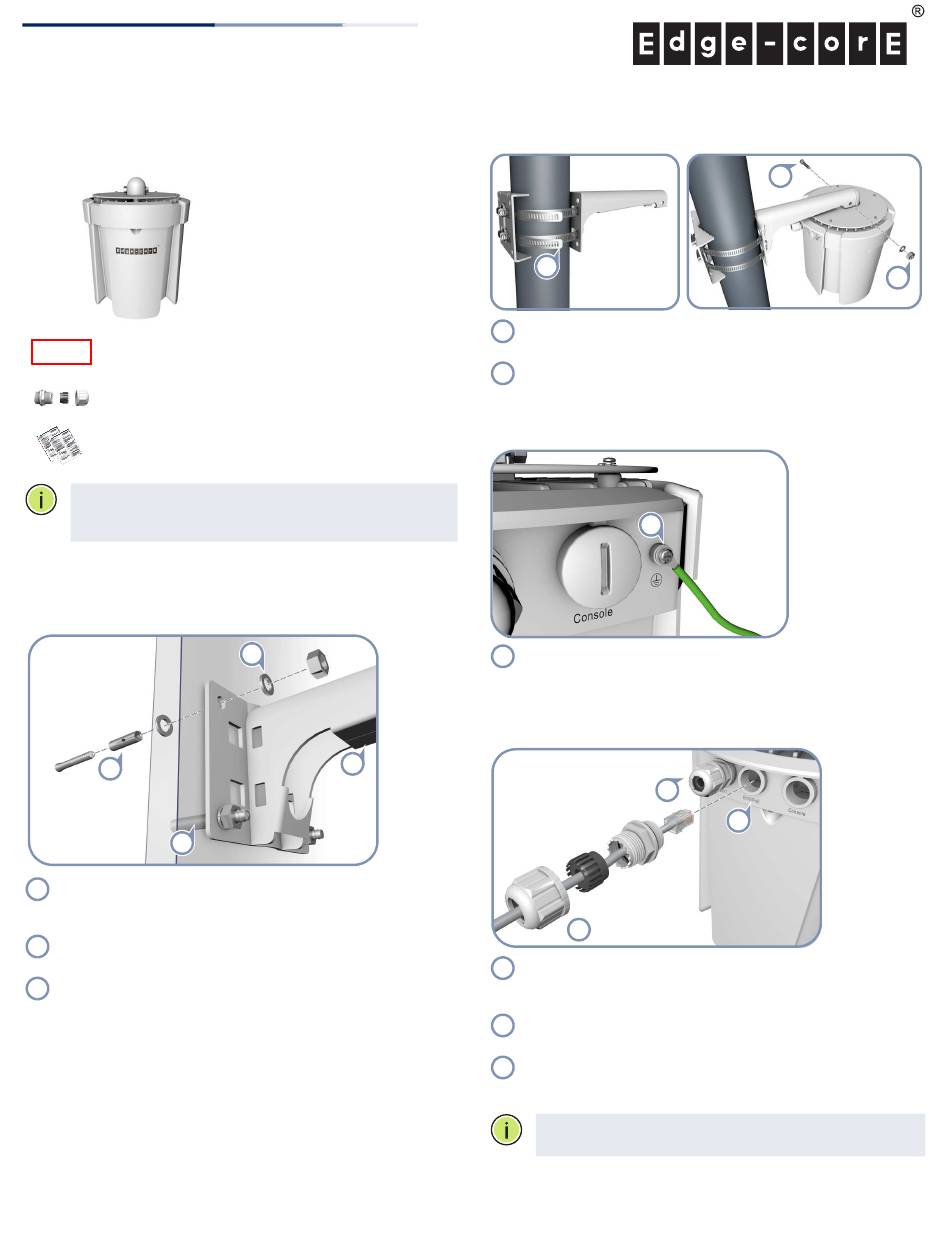

Q ui c k Sta r t G u id e

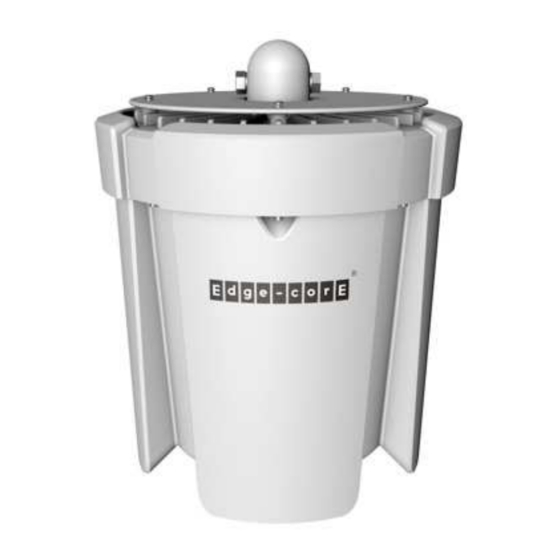

802.11a/ac/b/g/n Outdoor Wireless Access Point
ECWO7220-L

1. Unpack the AP and Check Contents

Mounting kit
Two weatherproof port covers
Documentation—Quick Start Guide (this document)
and Safety and Regulatory Information
Note:
For safety and regulatory information, refer to the
Safety and Regulatory Information document included with
the AP.

2. Mount the AP

The AP can be mounted on a wall, or pole.

a. Mounting on a Wall

1
1
1
Drill four holes in the wall deep enough for the included wall
expansion bolts. Insert the four bolts in the holes leaving the
threaded part exposed.
2
Place the wall-mount bracket over the four bolts and use the
nuts and washers to secure the bracket to the wall.
3
Slide the AP onto the bracket arm and secure it using the
included long bolt, nut, and washer.
www.edge-core.com
ECWO7220-L
802.11a/ac/b/g/n
Wireless Access Point
2
3

b. Mounting on a Pole

1
1
Secure the two mounting bracket parts to the pole using the
two included steel-band clamps.
2
Slide the AP onto the bracket arm and secure it using the
included long bolt, nut, and washer.

4. Ground the AP

1
Ground the AP by connecting the included ground wire to
the grounding point on the AP and to nearby good earth
connection.

3. Connect LAN Cables

2
1
Connect outdoor-rated Category 5e or better cable to the
1000BASE-T RJ-45 Eth0/PoE port. Be sure to use the included
weatherproof RJ-45 port cover.
2
Connect the other end of the outdoor-rated Ethernet cable
to an 802.3at-compliant PoE switch or power injector.
3
(Optional) Connect a local LAN switch or computer to the
Eth1 1000BASE-T RJ-45 port. Be sure to use the included
weatherproof RJ-45 port cover.
Note:
The Eth/PoE port connection provides PoE power to
the unit.
– 1 –
2
1
3
1
2
E042016-CS-R01
150200001440A
