Edge-Core ECWO7211-L Quick Start Manual

Q ui c k Sta r t G u id e
802.11a/ac/b/g/n Outdoor Wireless Access Point
ECWO7211-L / ECWO7220-L

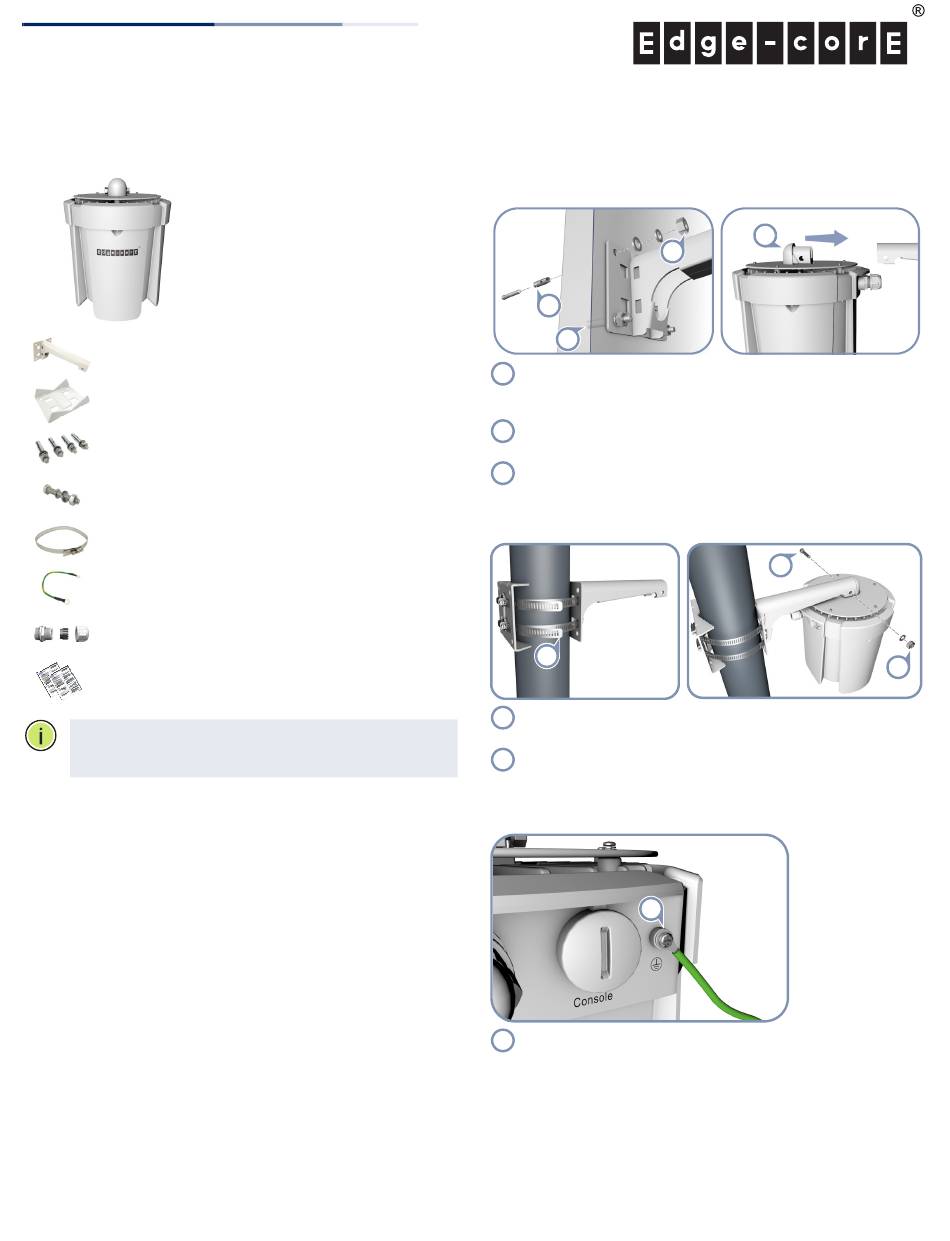

1. Unpack the AP and Check Contents
Wall/pole-mounting bracket arm
Pole-mounting bracket
Four expansion bolts with nuts and washers
Long bolt with nut and washers
Two steel-band clamps
Ground wire
Two weatherproof RJ-45 port covers
Documentation—Quick Start Guide (this document)
and Safety and Regulatory Information
Note: For safety and regulatory information, refer to the
Safety and Regulatory Information document included with
the AP.
www.edge-core.com
ECWO7211-L / ECWO7220-L
802.11a/ac/b/g/n
Wireless Access Point
2. Mount the AP
The AP can be mounted on a wall, or pole.
a. Mounting on a Wall
1
1
1 Drill four holes in the wall deep enough for the included wall
expansion bolts. Insert the four bolts in the holes leaving the
threaded part exposed.
2 Place the wall-mount bracket over the four bolts and use the
nuts and washers to secure the bracket to the wall.
3 Slide the AP onto the bracket arm and secure it using the
included long bolt, nut, and washer.
b. Mounting on a Pole
1
1
Secure the two mounting bracket parts to the pole using the
two included steel-band clamps.
2
Slide the AP onto the bracket arm and secure it using the
included long bolt, nut, and washer.
3. Ground the AP
1 Ground the AP by connecting the included ground wire to
the grounding point on the AP and to nearby good earth
connection.
– 1 –
3
2
2
1
2
E042016-CS-R01
150200001440A
