Quick Star t Guide
IEEE 802.11a/b/g/n/ac Enterprise Cloud Based Indoor Access Point
ECW7210-L
Installation Information
1. Unpack the AP
www.edge-core.com
Note:
For Safety and Regulatory information, refer to the Safety and Regulatory
Information document included with the AP.
The AP includes its own built-in features for mounting the unit to a wall or
suspended ceiling T-rail.
Caution:
The planning and installation of the AP requires professional personnel
that are trained in the installation of radio transmitting equipment. The user is
responsible for compliance with local regulations concerning items such as
antenna power, use of lightning arrestors, grounding, and radio mast or tower
construction. Therefore, it is recommended to consult a professional contractor
knowledgeable in local radio regulations prior to equipment installation.
Follow these steps to install the AP:
Unpack the AP and check the package contents.
◆

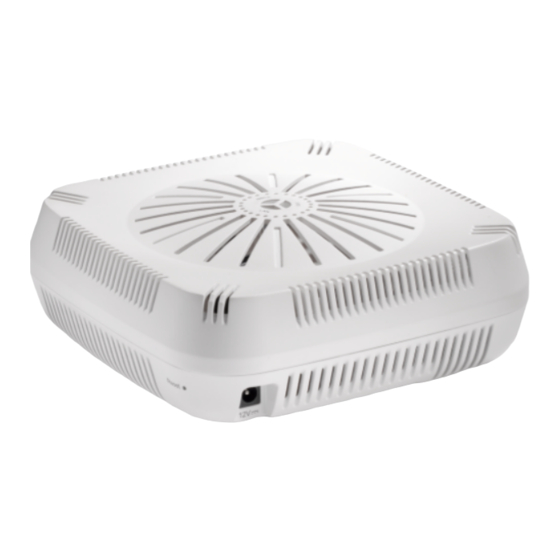

ECW7210-L Enterprise Access Point
◆
AC Power adapter
◆
Console cable (RJ-45 to DB-9)
◆
Quick Start Guide (this guide)
◆
Regulatory and Safety Information
◆
Screw Kit
– 1 –
E112014-AP-R01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECW7210-L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Edge-Core ECW7210-L

Summary of Contents for Edge-Core ECW7210-L

  • Page 1 Follow these steps to install the AP: 1. Unpack the AP Unpack the AP and check the package contents. ◆ ECW7210-L Enterprise Access Point ◆ AC Power adapter ◆ Console cable (RJ-45 to DB-9) ◆...

  • Page 2: Mounting On A Wall

    Quick Start Guide 2. Mount the AP After planning your installation, mount the unit on a wall or suspended ceiling T-rail. Mounting on a Wall Set two screws in the wall 137.2 mm (5.2 in.) apart. Slide the AP’s wall mounting slots down onto the screws so that the unit is secure. Mounting on a Ceiling T-rail Position the AP’s ceiling-mount clip holders on either side of the T-rail.

  • Page 3: Connect Cables

    Quick Start Guide 3. Connect Cables Connect network cable to the RJ-45 port for your network connection. The RJ-45 port connection can also provide PoE power to the unit. Connect Category 5e or better cable to the RJ-45 port. 4. Connect Power If you do not power the unit using PoE, connect the AC power adapter to the AP and to an AC power source.

  • Page 4: Connect To The Console Port

    Quick Start Guide 5. Verify AP Operation Verify basic AP operation by checking the system LEDs. The Power LED should be on green and the LAN LED on or flashing green. WiFi Power 6. Connect to the To make initial configuration changes to the AP, connect a PC to the AP’s console Console Port port using the included console cable.

  • Page 5: Connect To The Web User Interface

    Quick Start Guide Console Port Console Cable From a PC running VT-100 terminal emulator software, use the following settings: ◆ Baud rate — 115,200 bps ◆ Character Size — 8 Characters ◆ Parity — None ◆ Stop bit — One ◆...
  • Page 6 Quick Start Guide 8. Security Slot The access point includes a Kensington security slot on the rear panel. You can prevent unauthorized removal of the access point by wrapping the Kensington security cable (not provided) around an unmovable object, inserting the lock into the slot, and turning the key.

  • Page 7: Hardware Specifications

    Quick Start Guide Hardware Specifications Item Specification Chassis Specifications Size W x D x H: 180 x 160 x 53 mm (7.08 x 6.29 x 2.08 inches) Weight 638 g (1.40 lb) Temperature Operating: 0 °C to 40 °C (32 °F to 104 °F) Storage: -20 °C to 70 °C (-4 °F to 158 °F) Humidity Operating: 5% to 95% (non-condensing)
