- Page 1 ECWO5211-L Enterprise Access Point...
-
Page 2: Fcc Caution
Quick Installation Guide ECWO5211-L Enterprise Access Point ENGLISH FCC CAUTION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 3 Quick Installation Guide ECWO5211-L Enterprise Access Point ENGLISH CE CAUTION Hereby, Edgecore Networks Corporation declares that the radio equipment type ECWO5211-L is in compliance with Directive 2014/53/EU. Frequency Range and Transmit Power Frequency range (MHz) Max. transmit power (dBm) 2412-2472...
-
Page 4: Package Contents
Besides ECWO5211-L’s PoE uplink port is able to receive power from Power over Ethernet (PoE) sourcing devices, its LAN port also supports PoE with 802.11at standard which make network deployment more convenient and easier. -
Page 5: System Overview

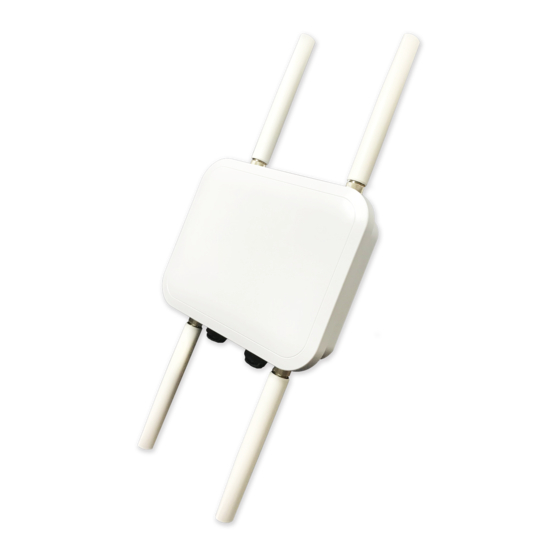

Quick Installation Guide ECWO5211-L Enterprise Access Point ENGLISH System Overview ECWO5211-L Side ECWO5211-L Back... - Page 6 ENGLISH ECWO5211-L status. The Power LED will start blinking when the Power LED ECWO5211-L is booting. After finishing booting, the Power LED will always LAN1 LED Uplink status. The LAN1 LED will light up when there is traffic passing through the LAN1 port.
-
Page 7: Hardware Installation
Please follow the steps mentioned below to install the hardware of ECWO5211-L : 1. Place the ECWO5211-L at the best location. The best location for ECWO5211-L is usually at the center of your intended wireless network. Wall mount 1. Secure screws on the wall. - Page 8 2. Connect the ECWO5211-L to your network device. Connect one end of the Ethernet cable to the LAN1 (PoE) port of ECWO5211-L and the other end of the cable to a switch, a router, or a hub. ECWO5211-L is then connected to your existing wired LAN network.
-
Page 9: Getting Started
1. To access the web management interface, connect the administrator PC to the LAN port of ECWO5211-L via an Ethernet cable. Then, set a static IP address on the same subnet mask as ECWO5211-L in TCP/IP of your PC, such as the following example: IP Address: 192.168.1.100... - Page 10 Quick Installation Guide ECWO5211-L Enterprise Access Point ENGLISH 4. After a successful login into ECWO5211-L’s Web user interface (Web UI), a System Overview page of web management interface will appear, as depicted below. The Web Management Interface - System Overview Page Congratulations! Now, Edgecore ECWO5211-L is installed and configured successfully.
