Quick Star t Guide
802.11ac Outdoor Stand-Alone Access Point
ECWO3320, ECWO3324, ECWO4320, ECWO4324, ECWO5320, ECWO5324
www.edge-core.com

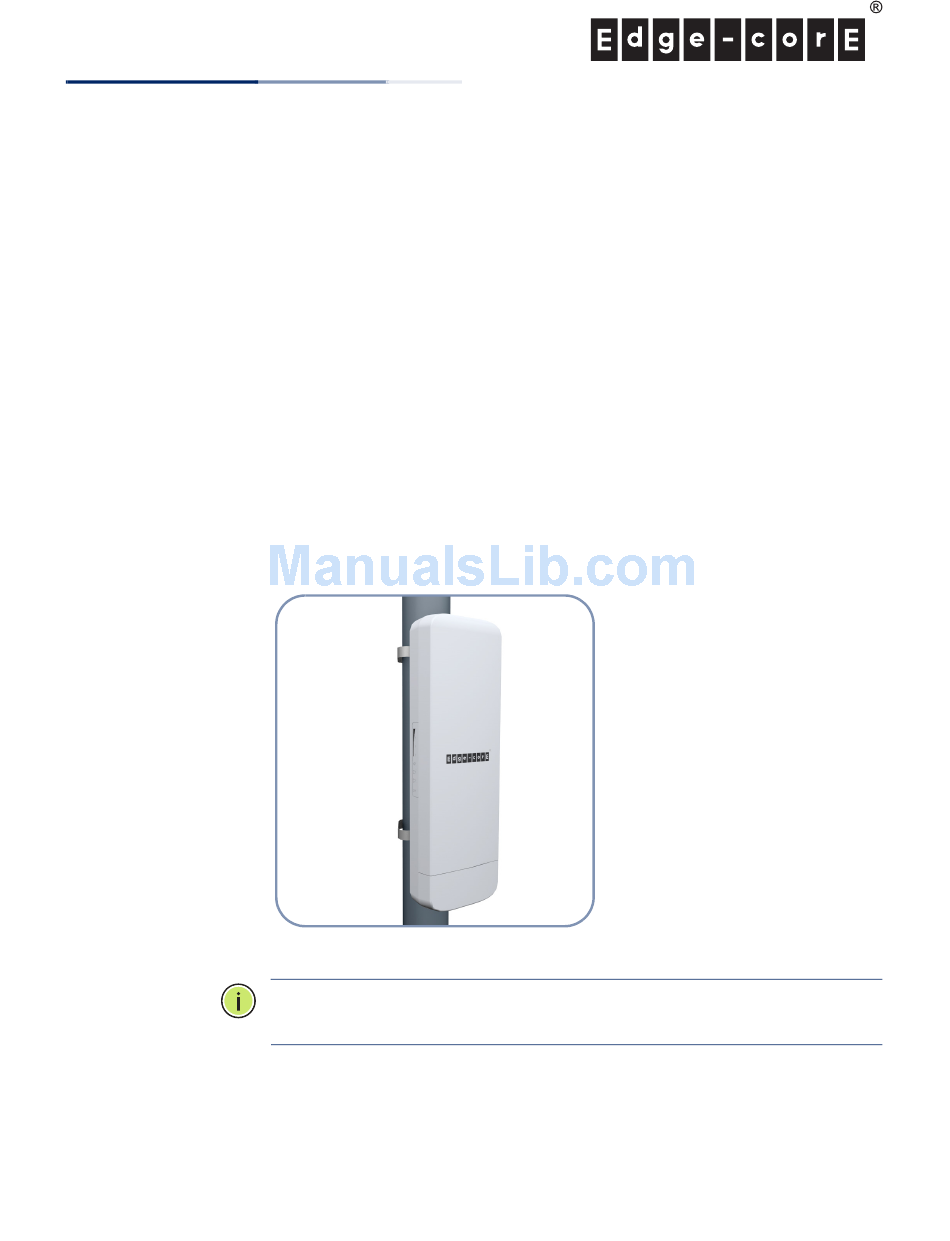

The ECWO3320/ECWO3324/ECWO4320/ECWO4324/ECWO5320/ECWO5324 are
single- and dual-band (2.4/5 GHz) access points (APs) that are housed in a
waterproof enclosure for mounting outdoors. The units include a built-in mounting
bracket for attaching to a 1.5 to 6-inch pole and they can be powered through their
Ethernet cable connection from a power injector module that is installed indoors.
The Outdoor Access Stand-Alone Points include these models:
ECWO3320 — 2.4 GHz stand-alone AP with internal antennas
ECWO3324 — 2.4 GHz stand-alone AP with external antennas
ECWO4320 — 5 GHz stand-alone AP with internal antennas
ECWO4324 — 5 GHz stand-alone AP with external antennas
ECWO5320 — Dual-band stand-alone AP with 5 GHz internal antennas
ECWO5324 — Dual-band stand-alone AP with external antennas
Note:
For Safety and Regulatory information, refer to the Safety and Regulatory
Information document included with the AP.
– 1 –
E052014-CS-R01
150200000891A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECWO3320 and is the answer not in the manual?

Questions and answers

Summary of Contents for Edge-Core ECWO3320

  • Page 1 1.5 to 6-inch pole and they can be powered through their Ethernet cable connection from a power injector module that is installed indoors. The Outdoor Access Stand-Alone Points include these models: ECWO3320 — 2.4 GHz stand-alone AP with internal antennas ◆ ECWO3324 — 2.4 GHz stand-alone AP with external antennas ◆...
  • Page 2: Pole Mounting

    1. Unpack the AP Unpack the AP and check the package contents. ◆ Outdoor Stand-Alone Access Point ECWO3320, ECWO3324, ECWO4320, ECWO4324, ECWO5320, or ECWO5324 ◆ Pole-mounting kit — includes two steel-band clamps ◆ PoE power injector with power cord — either US, Continental Europe or UK ◆...
  • Page 3: Connect Cables

    Quick Start Guide Attach External Antennas Remove the front port cover by pushing the locking tab up and then sliding the cover off. Connect external antennas to the AP’s 5 GHz RP-SMA connectors using RF coaxial cable provided in the antenna package.
  • Page 4: Verify Ap Operation

    Quick Start Guide Connect the Ethernet cable from the AP to the “POE” port on the power injector. Connect Ethernet cable from the “LAN” port on the power injector to a LAN switch. Connect the power cord to a nearby AC power source (100-240 VAC, 50/60 Hz).
  • Page 5: User Interface

    Quick Start Guide 6. Connect to the Web The stand-alone APs offer a web-based management interface for the configuration of all the unit’s features. User Interface You can make initial configuration changes by connecting a PC directly to the AP’s ETH1 RJ-45 port.
  • Page 6: Hardware Specifications

    Quick Start Guide Hardware Specifications Item Specification Chassis Size (H x W x D:) 283 x 94 x 50 mm (11.14 x 3.7 x 1.97 inches) Weight 762 g (1.68 lb) Temperature Operating: -20 °C to 65 °C (-4 °F to 149 °F) Storage: -30 °C to 80 °C (-22 °F to 176 °F) Humidity Operating: 15% to 95% (non-condensing)
