TECHNICAL DATA

4

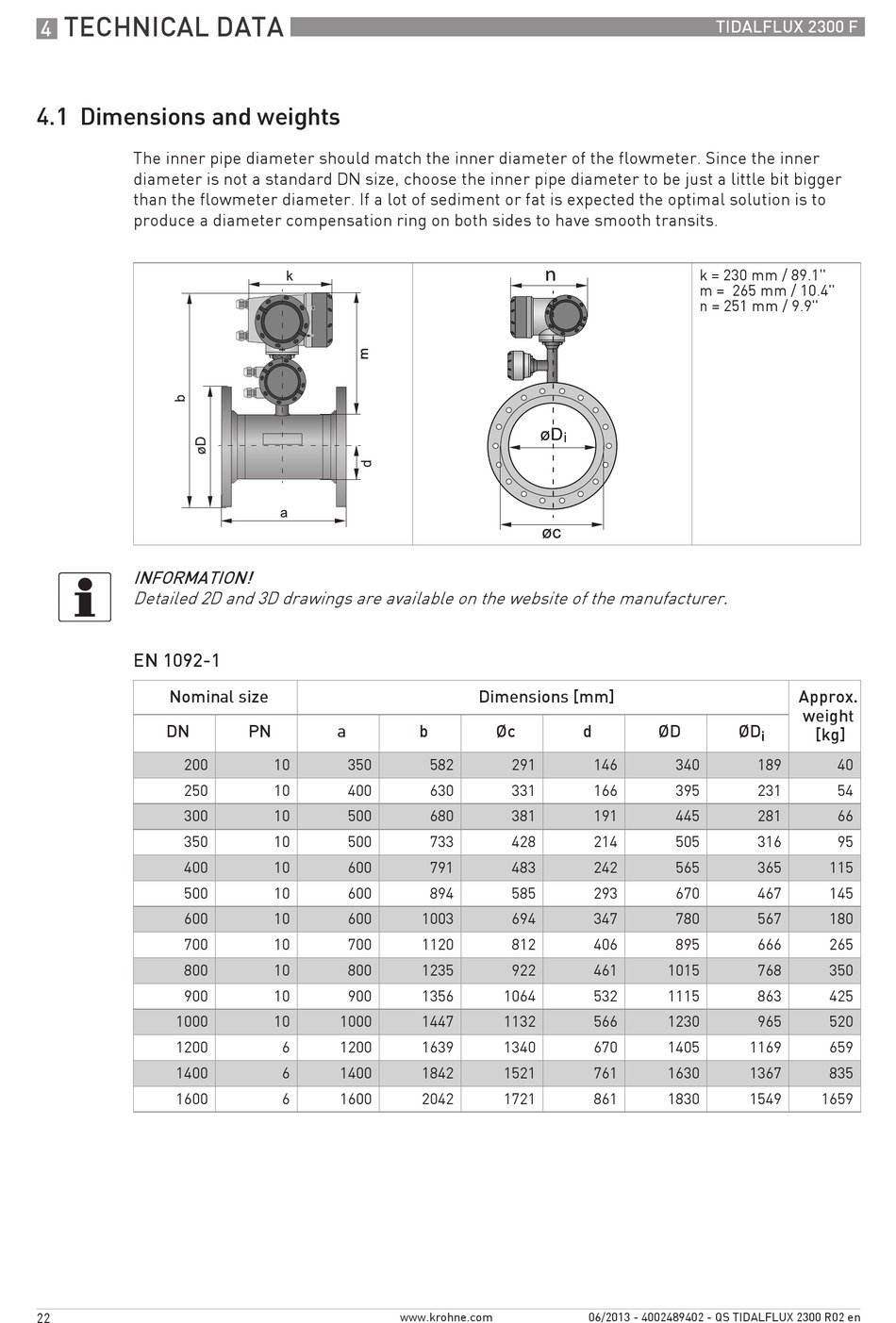

4.1 Dimensions and weights

The inner pipe diameter should match the inner diameter of the flowmeter. Since the inner
diameter is not a standard DN size, choose the inner pipe diameter to be just a little bit bigger
than the flowmeter diameter. If a lot of sediment or fat is expected the optimal solution is to
produce a diameter compensation ring on both sides to have smooth transits.
INFORMATION!
Detailed 2D and 3D drawings are available on the website of the manufacturer.
EN 1092-1
Nominal size
DN
200
250
300
350
400
500
600
700
800
900
1000
1200
1400
1600
22
PN a
10 350
10 400
10 500
10 500
10 600
10 600
10 600
10 700
10 800
10 900
10 1000
6 1200
6 1400
6 1600
www.krohne.com
Dimensions [mm]
b Øc d
582 291
630 331
680 381
733 428
791 483
894 585
1003 694
1120 812
1235 922
1356 1064
1447 1132
1639 1340
1842 1521
2042 1721
TIDALFLUX 2300 F
k = 230 mm / 89.1"
m = 265 mm / 10.4"
n = 251 mm / 9.9"
ØD ØD
146 340 189
166 395 231
191 445 281
214 505 316
242 565 365
293 670 467
347 780 567
406 895 666
461 1015 768
532 1115 863
566 1230 965
670 1405 1169
761 1630 1367
861 1830 1549
06/2013 - 4002489402 - QS TIDALFLUX 2300 R02 en
Approx.
weight
[kg]
i
40
54
66
95
115
145
180
265
350
425
520
659
835
1659
