OPTISENS ODO 2000
Quick Guide
The documentation is only complete when used in combination with the
relevant documentation for the signal converter.
© KROHNE 07/2012
TD OPTISENS ODO 2000 R01en
www.krohne.com

Advertisement

loading

Related Manuals for KROHNE OPTISENS ODO2000

Summary of Contents for KROHNE OPTISENS ODO2000

  • Page 1 OPTISENS ODO 2000 Quick Guide The documentation is only complete when used in combination with the relevant documentation for the signal converter. © KROHNE 07/2012 TD OPTISENS ODO 2000 R01en www.krohne.com...

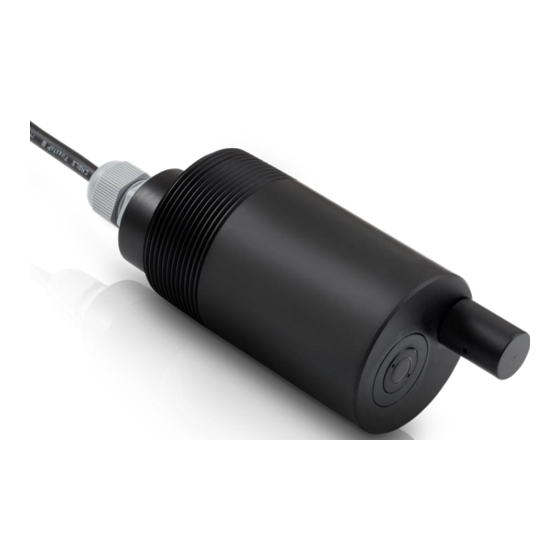

  • Page 2 Optical dissolved oxygen sensors are widely used to control and monitor oxygen concentration during the biological treatment of sewage water. The dissolved oxygen sensor OPTISENS ODO 2000 from KROHNE has a standardized robust design and a long lifespan. Therefore the sensor is especially designed for small and medium- sized wastewater treatment plants, where regular calibration and cleaning of the sensors is difficult due to limited maintenance resources.
  • Page 3 1. Dimension (1) Attached cable (2) Air input (3) Thread (4) Air nozzle (5) Sensing element © KROHNE 07/2012 TD OPTISENS ODO 2000 R01en www.krohne.com...
  • Page 4 Connecting sensor cable to signal converter Sensor connection terminals MAC 100 (1) Sensor connection terminals (2) Terminal block S (protective earth) (3) Terminal block A: terminals for sensor and temperature © KROHNE 07/2012 TD OPTISENS ODO 2000 R01en www.krohne.com...
  • Page 5 • To remove a cable, press down the white clip (8) on the corresponding terminal and pull the cable out. Wire Terminal block A White Green Yellow Grey Not connected © KROHNE 07/2012 TD OPTISENS ODO 2000 R01en www.krohne.com...
  • Page 6 • DC: When connecting to functional extra-low voltages, provide a facility for protective separation (PELV) (acc. To VDE 0100 / VDE 0106 and IEC 364 / IEC 536 or relevant national regulations). INFORMATION 12 V is not included in the tolerance range. © KROHNE 07/2012 TD OPTISENS ODO 2000 R01en www.krohne.com...

  • Page 7: Sensitivity Calibration

    Start now the sensitivity calibration and press  to confirm the entered value. On the display the actual concentration is highlighted. Wait till the value is stable and then press  to start the calibration. © KROHNE 07/2012 TD OPTISENS ODO 2000 R01en www.krohne.com...

  • Page 8: Zero Point Calibration

    If the message zero point calibration unsuccessful is highlighted if the calibration was not successful. Press  and answer the question to repeat the calibration with yes or no. Press ▲ or ▼ and confirm with . © KROHNE 07/2012 TD OPTISENS ODO 2000 R01en www.krohne.com...
  • Page 9 IP 68 Cleaning system Integrated cleaning nozzle for compressed air Connector core ends Cables 10 m/32,8 ft fixed cable Integrated temperature compensation; Others luminophore disc life >1 year (not exposed to sunlight) © KROHNE 07/2012 TD OPTISENS ODO 2000 R01en www.krohne.com...

  • Page 10: Order Code

    Sensor Options 1* Flush nozzle plus 10 m/33ft. flush hose Docum entation none English German (available from Q2 2012) French (available from Q2 2012) Spanish (available from Q2 2012) VGAO Order code © KROHNE 07/2012 TD OPTISENS ODO 2000 R01en www.krohne.com...
