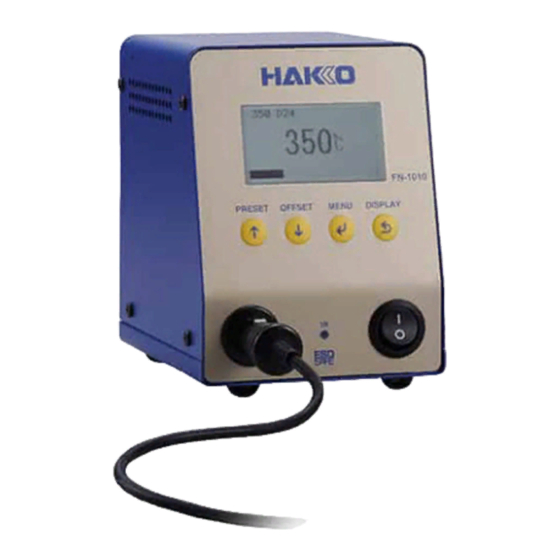

SOLDERING STATION
FN-1010
Instruction Manual
Thank you for purchasing HAKKO FN-1010 soldering station.
This product is a soldering iron with added functions for use
with peripheral equipment such as thermometer.
Please read the manual carefully
before operating the HAKKO FN-1010.
Please keep this manual readily accessible for reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FN-1010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hakko Electronics FN-1010

Summary of Contents for Hakko Electronics FN-1010

  • Page 1 SOLDERING STATION FN-1010 Instruction Manual Thank you for purchasing HAKKO FN-1010 soldering station. This product is a soldering iron with added functions for use with peripheral equipment such as thermometer. Please read the manual carefully before operating the HAKKO FN-1010.

  • Page 2: Table Of Contents

    Table of Contents PACKING LIST ...................... 1 SPECIFICATIONS ....................1 WARNINGS, CAUTIONS AND NOTES ..............2 PARTS NAMES ...................... 3 4-1 Unit ............................3 4-2 Normal display screen ......................3 INITIAL SETUP ...................... 4 5-1 Iron holder ..........................4 5-2 Handpiece ..........................4 5-2-1 Inserting tip ........................4 5-2-2 Removing tip .........................5...

  • Page 3: Packing List

    1. PACKING LIST Please check to make sure that all items listed below are included in the package. HAKKO FN-1010 soldering station .........1 Tip cleaner (FT401-81) ...........1 Soldering iron (FN1101-81) ..........1 Cleaning wire (A1561) ............1 Power cord ..............1 Instruction manual ............1 Iron holder ..............1...

  • Page 4: Warnings, Cautions And Notes

    ● Do not modify the HAKKO FN-1010. ● Use only genuine HAKKO replacement parts. ● Do not allow the HAKKO FN-1010 to become wet, or use it when hands are wet. ● Be sure to hold the plug when inserting or removing the iron cord.

  • Page 5: Parts Names

    Power receptacle Receptacle Receptacle Control Buttons The front panel of the HAKKO FN-1010 has 4 control buttons. Increases numerical values by 1 or moves cursor up one item. In setting screen During normal operation Opens preset selection screen. Decreases numerical values by 1 or moves cursor down one item.

  • Page 6: Initial Setup

    5. INITIAL SETUP 5-1 Iron holder CAUTION Be careful not to set the angle too high (close to vertical). Doing so will cause the grip to become hot. Be careful not to set the angle too low. Doing so may let the soldering iron to fall out. Loosen the two screws holding the iron receptacle (B5216), adjust it to the desired angle, and retighten the screws to secure it in place.

  • Page 7: Removing Tip

    5-2-2 Removing tip As shown in the diagram below, fit the handpiece (FN1101-81) into the tip removal attachment of the iron holder. Fix it by hand so that the soldering iron will not move. Pull the handpiece (FN1101-81) toward you to remove the tip. 5-2-3 About tips When a T36 tip is inserted into the handpiece, the station reads the tip information from the wavy-line...

  • Page 8: Operation

    6. OPERATION CAUTION ● At the time of shipment from the factory, the default temperature setting is 350°C. ● When not using, place the iron in the iron holder. — Note — Load repetition count function and supplied energy calculation function are influenced by factors such as tip shape, deterioration condition of tips, temperature setting, external environment and work size.

  • Page 9: Selecting A Preset Temperature

    6-2 Selecting a preset temperature The preset selection screen will appear. Press the button to select the desired Preset No. After selecting, press the button. The selection will be stored in the internal memory and after the new temperature setting has been displayed, heater control will start.

  • Page 10: Ir Input

    Step press the [AUTO/SEND] button to send the measured data to the IR receptor After the display shown below of the FN-1010. appears, the new offset value will be stored in the internal memory, and heater control will start.

  • Page 11: Performing "Auto Cal

    6-4 Performing “Auto Cal” When “Auto Cal” has been performed, if the measured temperature is within a previously set temperature range, it will be judged as passed and stored in the main body, and the product will return to normal operation. If the measured temperature is outside the temperature range, the offset value will be calculated from the measurement results, and control will be performed using the new offset value.

  • Page 12: Checking "Auto Cal" Information

    6-6 Setting the load detection function The HAKKO FN-1010 has the following functions for detecting the tip load. The number of times a specified load has occurred is counted and stored Load repetition count function: in the tip.
  • Page 13 *1 Values from 0 – 9 can be set. (The range is the same in °F mode.) Other items which can be set on the HAKKO FN-1010 include contrast adjustment, preset temperature settings, etc. Detailed information on how to change parameter details, etc. are described in the instruction manuals available from the HAKKO Document Portal.

  • Page 14: Maintenance

    High temperatures shorten tip life and may cause thermal shock to components. Always use the lowest possible temperature when soldering. The excellent thermal Tip temperature recovery characteristics of the HAKKO FN-1010 ensure effective soldering at low temperatures. Always clean the soldering tip before use, to remove any residual solder or flux adhering to it.

  • Page 15: Trouble Shooting Guide

    8. TROUBLE SHOOTING GUIDE WARNING Before checking the inside of the HAKKO FN-1010 or replacing parts, be sure to disconnect the power plug. Failure to do so may result in electric shock. The unit does not operate when Is the power cord and/or the connection plug disconnected? CHECK the power switch is turned on.
  • Page 16 HEAD OFFICE 4-5, Shiokusa 2-chome, Naniwa-ku, Osaka 556-0024 JAPAN TEL:+81-6-6561-3225 FAX:+81-6-6561-8466 http://www.hakko.com E-mail:sales@hakko.com OVERSEAS AFFILIATES U.S.A.: AMERICAN HAKKO PRODUCTS, INC. TEL: (661) 294-0090 FAX: (661) 294-0096 Toll Free (800)88-HAKKO 4 2 5 5 6 http://www.hakkousa.com HONG KONG: HAKKO DEVELOPMENT CO., LTD. TEL: 2811-5588 FAX: 2590-0217 http://www.hakko.com.hk E-mail:info@hakko.com.hk...
