Thank you for purchasing the HAKKO FX-888D soldering station.
Please read this manual before operating the HAKKO FX-888D.
1. PACKING LIST AND PART NAMES
HAKKO FX-888D Station
HAKKO FX-8801 Soldering iron
Iron holder (with cleaning sponge)
Instruction Manual
Receptacle
Power switch
HAKKO FX-888D Station
*HAKKO FX-8802 / FX-8803 / FX-8804 (not included) can be connected to HAKKO FX-888D station.
*When using the HAKKO FX-8802/FX-8803/FX-8804, please use it with the applicable iron holder.
2. SPECIFICATIONS
Power consumption 70W
● Station
Output voltage
AC 26V
Temperature range
400 - 899℉ (200 - 480℃)
Temperature stability
±1.8℉ (±1℃) at idle temperature
Dimensions (W × H × D)
3.9(W) × 4.7(H) × 4.7(D) in.
(100 × 120 × 120 mm)
Weight (w/o cord)
2.6 lb. (1.2kg)
* The temperature was measured using the FG-100 thermometer.
* Specifications and design are subject to charge without notice.
■ Electrostatic Protection
This product includes such features as electrically conductive plastic parts and grounding of the unit
as measures to protect the device to be soldered from the effects of static electricity. Be sure to observe
the following instructions:
1. The plastic parts are not insulators, they are conductors. When making repairs or replacing
parts, take sufficient care not to expose live electrical parts or damage insulation materials.
2. Be sure to ground the unit during use.
Instruction Manual
Keep this manual readily accessible for reference.
1
1
1
1
O N
F
O F
Cleaning wire
* This product is protected against electrostatic discharge.
Please check to make sure that all items listed
below are included in the package.
Cleaning wire
HAKKO FX-8801
Iron receptacle
Cleaning sponge
● HAKKO FX-8801 Soldering iron
Power consumption
65W (26V)
Tip to ground resistance
< 2 Ω
Tip to ground potential
< 2 mV
Heating element
Ceramic heater
Cord length
3.9 ft. (1.2m)
Total length (w/o cord)
8.5 in. (217mm) with 1.6D tip
Weight (w/o cord)
0.10 lb. (46g / 1.62 oz.) with 1.6D tip
1
Cord assembly
Iron holder
base
Iron holder

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FX-888D and is the answer not in the manual?

Questions and answers

Related Manuals for Hakko Electronics FX-888D

Summary of Contents for Hakko Electronics FX-888D

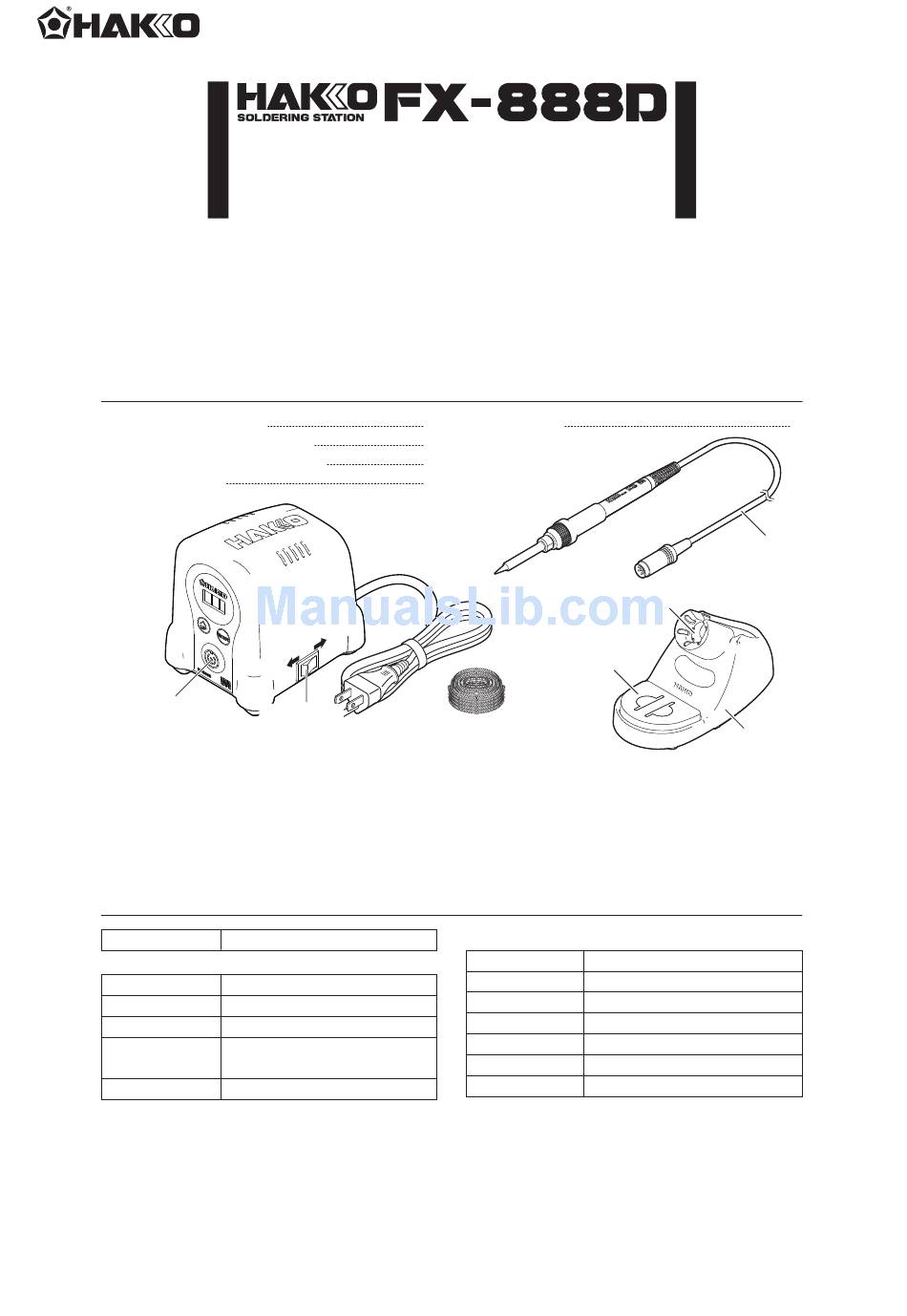

  • Page 1 HAKKO FX-888D Station base Iron holder *HAKKO FX-8802 / FX-8803 / FX-8804 (not included) can be connected to HAKKO FX-888D station. *When using the HAKKO FX-8802/FX-8803/FX-8804, please use it with the applicable iron holder. 2. SPECIFICATIONS ● HAKKO FX-8801 Soldering iron Power consumption 70W ●...
