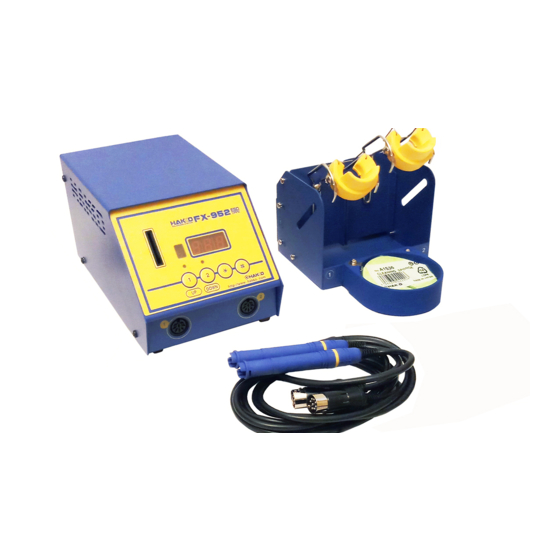

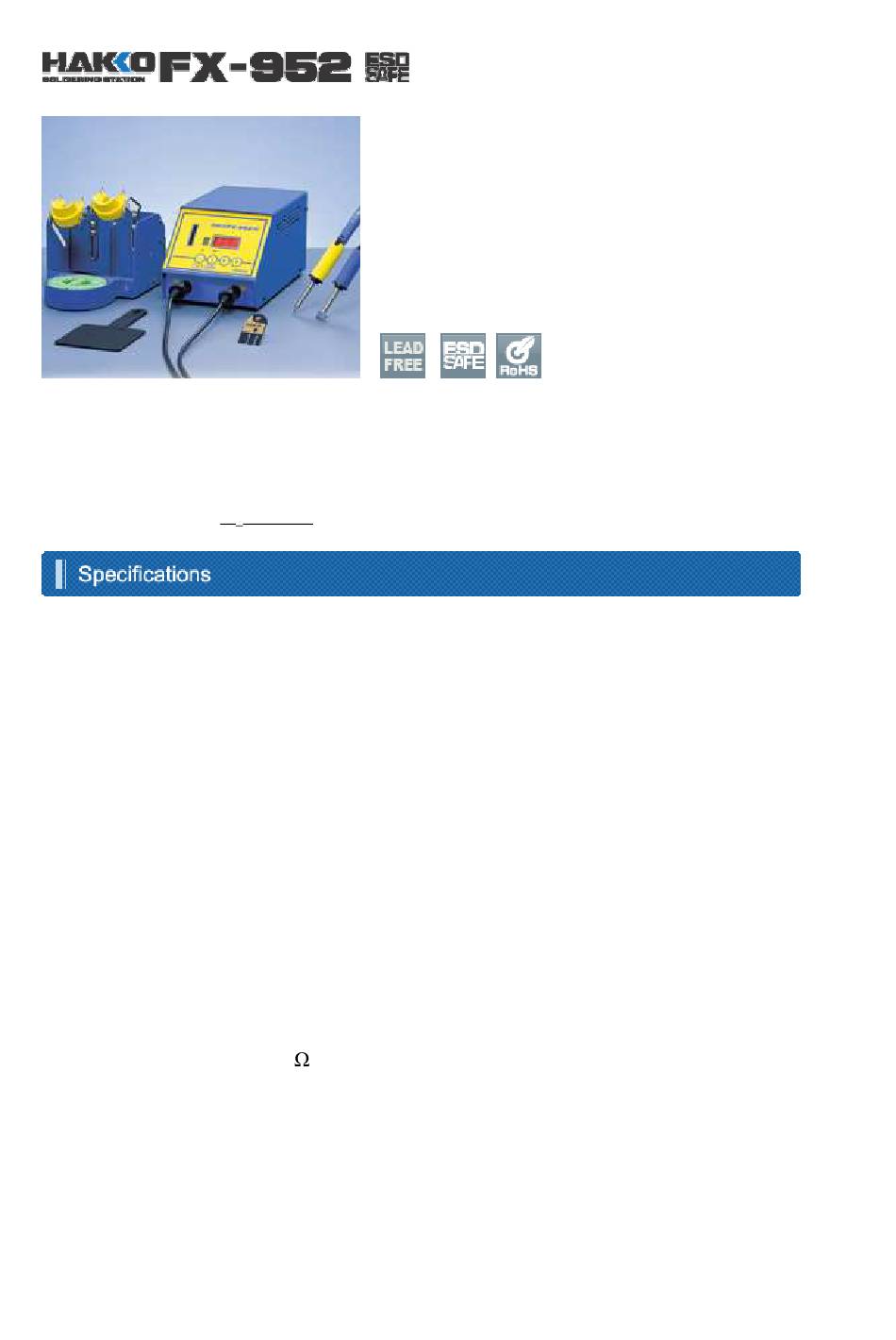

Soldering station with two irons (Two-iron type of HAKKO FX-951)
•
Two different soldering iron tips selected according to component sizes can be
simultaneously used.
•
Temperature on each station can be centrally controlled with one station
•
Supports the N
Model No.
Power consumption 140W
Temperature range 200-450ºC
Temperature stability ±5ºC at idle temperature
・Station
Output voltage 24V
Dimensions 113(W)×106(H)×206(D)mm
Weight
2.6kg
・Soldering Iron
Power consumption
Tip to ground resistance <2
Tip to ground potential <2mV
Heating element
Length of cord
Total length
Weight
•
Length and weight (w/o cord)
system.
2
FX952
70W (24V)
Composit heater
1.2m
188mm (with 2.4D tip)
30g (with 2.4D tip)
Soldering Station
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hakko Electronics FX952
Summary of Contents for Hakko Electronics FX952
- Page 1 • Temperature on each station can be centrally controlled with one station • Supports the N system. Model No. FX952 Power consumption 140W Temperature range 200-450ºC Temperature stability ±5ºC at idle temperature ・Station Output voltage 24V Dimensions 113(W)×106(H)×206(D)mm Weight 2.6kg...
- Page 2 Model No. Packing List No.FX-952 Station(HAKKO FX-952)(1), Soldering iron(HAKKO FM-2028)(2), Control card(1), Power cord(1), Heat resistant pad(1), Iron holder(1), Connecting cable(1), Instruction manual(1) Note: A soldering tip is not included in this product. The tips of desired shape should be purchased separately. We apologize for the previous misdescription in the HAKKO FX-952 Uses lock-type Sleeve Assembly soldering iron.
- Page 3 The excellent thermal recovery allows the soldering with lower preset temperature. It is also useful for Lead-free soldering which requires higher melting temperature Thermal Recovery Graph (The comparison of HAKKO products) ・Compositetip The composite tip is a ceramic soldering tip with integrated heating element and sensor.
- Page 4 ・Thermal Management · Possible to lock the temperature with the control card. · Digital offset makes temperature correction easy. · Capable of lower limit temperature setting. Combination of optional handpiece (such as FM-2026) allows use of N system. system enhances solderbility by Preventing Oxidation and Preheating Effect, featuring space- saving design.
- Page 5 Soldering Tip & Select the soldering tip T13 Series Nozzle appropriate for work. Assembly HAKKO With Racks for Station FX-780 Air tube Outer diameter: 6mm It can be placed perpendicularly or horizontally. Generator HAKKO FX-791 Flow Meter * The others are not others provided by HAKKO Air tube Outer diameter: 6mm...
- Page 6 Case1 "S-E" appears on the display. Causes： ： ： ： The heater or the sensor is switched off. Or the soldering iron is faulty. Countermeasures： ： ： ： Measure the resistance value in the soldering tip to see if the heater or the sensor is switched off. ■When the resistance value is not normal The heater or sensor is switched off.
- Page 7 Submit the unit for repair. Please return the unit to the place of purchase for repair. Case2 "C-E" appears on the display. Causes： ： ： ： A soldering iron other than HAKKO FM-2025/2028 is used. Or a connection plug may not be fully seated. Countermeasures：...
- Page 8 Case3 Only the soldering iron number appears on the display. Check the display after switching to the soldering iron number for the soldering iron that does not get hot. Only the soldering iron number appears as shown in the pictures above. Causes：...
- Page 9 Countermeasures： ： ： ： Press the operation button of the soldering iron number for more than one second to cancel this function. Case4 Nothing appears on the display. Causes： ： ： ： A power cable may not be fully seated or a fuse in the power receptacle may be blown.
- Page 10 Please return the unit to the place of purchase for repair. [Power cable check] [Check on a fuse in an power receptacle] Case5 "---" appears on the display. Causes： ： ： ： The P.W.B may be faulty.
- Page 11 Countermeasures： ： ： ： Repair is necessary. Contact a HAKKO office, a service center or a distribution outlet near you to have the faulty soldering station, the sleeve assembly, the connector assembly and the soldering tip repaired. Two ways to have a faulty assembly repaired: Submit the unit in a set of the station, soldering irons and tips for repair.
- Page 12 B3220 Connector cover Part No. Name Specifications A1519 Cleaning sponge yellow B3217 Sleeve assembly orange B3219 Sleeve assembly green 599B-01 HAKKO 599B tip cleaner B2756 Tip tray T15 széria...
- Page 13 Shape BCM/CM This type differs from Shape BC by the addition of a hollow to its cut face, providing high solder retention capability. It is used for drag soldering and correction of bridging. * Shape BCM/CM are not available for sale or use in the U.S.A. T15-BCM2 Shape-2BC Bevel with indent T15-BCM3 Shape-3BC Bevel with indent Shape BC/C...
- Page 14 • T15-BC28 Shape-2.8BC • T15-BC1 Shape-1BC • T15-BC2 Shape-2BC • T15-BC3 Shape-3BC • T15-BCF1 Shape-1BC Tinned cut surface only • T15-BCF2 Shape-2BC Tinned cut surface only • T15-BCF3 Shape-3BC Tinned cut surface only...
- Page 15 • T15-C1 Shape-1C • T15-C4 Shape-4C • T15-CF2 Shape-2C • T15-CF3 Shape-3C • T15-CF4 Shape-4C Tinned cut surface only • T15-SBC04 Shape-0.4SBC Shape B All-round type which can be used from any direction and is easy to hold at any position. Possible to solder any surface from small to large.
- Page 16 T15-B Shape-B • T15-B2 Shape-0.5B • T15-B3 Shape-0.7B • T15-B4 Shape-0.4B • T15-BLL Shape-BL Long • T15-SB02 Shape-0.2SB • T15-SB03 Shape-0.3SB...
- Page 17 • T15-SB05 Shape-0.5SB • T15-SB08 Shape-0.8SB • T15-SBS04 Shape-0.4SBS • T15-SBS07 Shape-0.7SBS Shape D This type has a shape like a flat-blade screwdriver and is capable of soldering by applying the tip in 2 ways: line and face. The width (size of tip) suitable for the workpiece can be selected, and it can be used for any soldering work.
- Page 18 • T15-D12 Shape-1.2D • T15-D16 Shape-1.6D • T15-D24 Shape-2.4D • T15-DL32 Shape-3.2D Long Just joined as standard tip. • T15-D4 Shape-4D • T15-D52 Shape-5.2D • T15-DL52 Shape-5.2D Long...
- Page 19 • T15-D2 Shape-2D • T15-DL4 Shape-4D Long • T15-D32 Shape-3.2D • T15-XD15 Shape-1.5XD Shape I This type has a thin conical end and is an ultrafine tip which is best suited for soldering at narrow pitches, etc. It is the best for soldering micro components such as 0603, etc. and for repairing high-density- mounting P.W.Bs.
- Page 20 • T15-IL Shape-IL • T15-ILS Shape-ILS Shape J This type differs from Shape B and I by bending the tip end and is capable of soldering by applying the tip in 2 ways: face and point. It is used for drag soldering and correction of bridging. T15-J02 Shape-0.2J (Shape-0.2RSB) •...
- Page 21 • T15-JD16 Shape-0.6JD Shape K This type has a shape like a knife and is capable of soldering by applying the tip in 3 ways: line, face and point. It is used for soldering at narrow pitches, correction of bridging and drag soldering. T15-K Shape-K •...
- Page 22 This type is capable of heating plural pins or lead wires at once and is used for rework of SMDs. It is used for removal of QFP. T15-1201 Quad Size 13.6 x 8.5 • T15-1202 Quad Size 10.3 x 10.3 •...
- Page 23 • T15-1207 Quad Size 15.5 x 15.5 • T15-1208 Quad Size 15.8 x 15.8 • T15-1209 Quad Size 8.4 x 8.4 • T15-1210 Quad Size 15.4 x 12.8 SMD Type : Shape Tunnel This type is capable of heating plural pins or lead wires at once and is used for rework of SMDs.
- Page 24 • T15-1002 Tunnel Size 5.1 x 10.4 • T15-1003 Tunnel Size 9.5 x 18.3 • T15-1004 Tunnel Size 9.5 x 15.8 • T15-1005 Tunnel Size 9.5 x 13.2 • T15-1006 Tunnel Size 6.9 x 11.4 • T15-1007 Tunnel Size 7.9 x 18.8...
- Page 25 • T15-1008 Tunnel Size 19.5 x 10.2 • T15-1009 Tunnel Size 13.4 x 20.5 • T15-1010 Tunnel Size 19.5 x 12 SMD Type : Shape Spatula This type is capable of heating plural pins or lead wires at once and is used for rework of SMDs.
- Page 26 • T15-1403 Spatula Size 21.2 • T15-1406 Spatula Size 40 Shape R This type has a groove at the tip end. It is suitable for removing ICs. T15-R20 Shape-2.0R • T15-R23 Shape-2.3R • T15-R27 Shape-2.7R • T15-R34 Shape-3.4R...
- Page 27 • T15-R48 Shape-4.8R...
