Instruction Manual
Thank you for purchasing the HAKKO FX-100 Soldering Station.
Please read this manual before operating the HAKKO FX-100.
Keep this manual readily accessible for reference.
1. PACKING LIST AND PART NAMES
HAKKO FX-100 soldering station
HAKKO FX-1001 soldering iron
Sleeve (Green)
Sleeve (Gray)
Cleaning wire

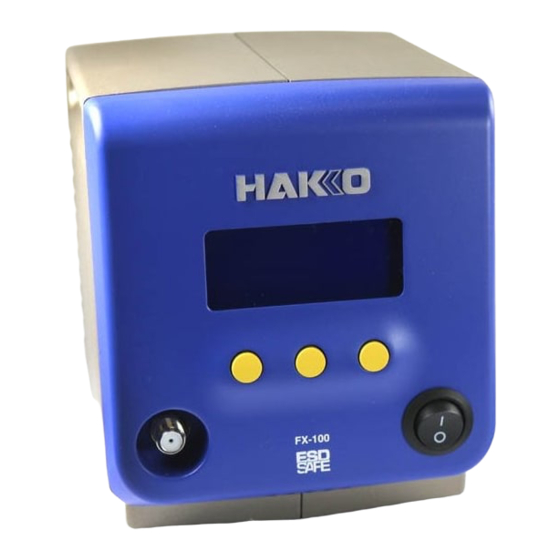

HAKKO FX-100
Soldering station
Receptacle
2. COMPATIBLE MODELS
Use this product with the following models.
• FX-1001 (Soldering Iron) T31 series (tip for FX-1001)
• FX-1002 (Micro Soldering Iron) T35 series (tip for FX-1002)
3. SPECIFICATIONS
Power consumption
28 W (85 W)
Tip series /
T31-01 Series / 450℃ (840°F)
Tip temperature
T31-02 Series / 400℃ (750°F)
T31-03 Series / 350℃ (660°F)
Temperature stability
±1.1℃ (±2.0℉)
 Station
Output power
50 W
Output frequency
13.56 MHz
Dimensions
127 (W) × 150 (H) × 167 (D) mm
(5.0 × 5.9 × 6.6 in.)
Weight
3 kg (6.6 lb.)
* Specifications and design are subject to change without notice.
CAUTION
This product includes such features as electrically conductive plastic parts and grounding of the handpiece
and station as measures to protect the device to be soldered from the effects of static electricity. Be sure to
observe the following instructions:
1. The handle and other plastic parts are not insulators, they are conductors. When replacing parts or
repairing, take sufficient care not to expose live electrical parts or damage insulation materials.
2. Be sure to ground the unit during use.
Soldering Station
Please check to make sure that all items listed
below are included in the package.
1
Heat resistant pad
1
Iron holder
1
Power cord
1
Instruction manual
1
HAKKO FX-1001
Soldering iron
Cleaning wire
Cleaning
Power switch
sponge
Heat resistant
pad
 HAKKO FX-1001 soldering iron
Length of cord
Total Length (w/o cord)
Weight (w/o cord)
NOTE:
This product is protected against electrostatic discharge.
1
1
1
1
Power cord
Sleeve
Sleeve
(Green)
(Gray)
Iron holder
Iron holder
base
1.3 m (4.3 ft.)
190 mm (7.5 in.) with T31-02D24 tip
31 g (0.07 lb.) with T31-02D24 tip
