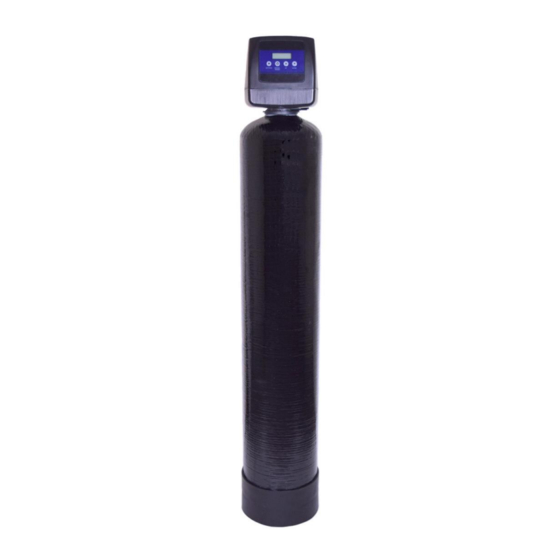

7800 Carbon Filter Installation & Start-Up Guide
Thank you for purchasing a Clean Water System! With proper installation and a little
routine maintenance your system will be providing chlorine free water for many years.
CARBON MEDIA CONTAINS DUST.
USE PAPER MASK AND VENTILATE TO AVOID BREATHING DUST.
Questions?
Call us toll-free: 1-888-600-5426 or 1-831-462-8500
Email us:
support@cleanwaterstore.com
See more information on our website:
Clean Water Made Easy
www.cleanwaterstore.com/resources
www.cleanwaterstore.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clean Water Systems 7800

Summary of Contents for Clean Water Systems 7800

  • Page 1 Clean Water Made Easy www.cleanwaterstore.com 7800 Carbon Filter Installation & Start-Up Guide Thank you for purchasing a Clean Water System! With proper installation and a little routine maintenance your system will be providing chlorine free water for many years. CARBON MEDIA CONTAINS DUST.

  • Page 2: Table Of Contents

    Fig 1 - Carbon Filter Tank Water Flow ....................5 Fig 2 - Typical Carbon Filter 7800 piping installation with ball valve and hose bib after the filter ..6 Fig 3: 7800 from the rear showing the inlet (left) and outlet (right) end-connector fittings 3/4” or 1”...

  • Page 3: Packing List

    7800 Carbon Filter Installation & Startup Guide Packing List Carbon Filter 1.0 cubic foot size 7800 Backwash Control Valve w/ Bypass Assembly and Pipe connector kit (1”or ¾”) 9” x 48” filter tank with distributor tube Blue media funnel for adding the Carbon media 12lbs.

  • Page 4: Pre-Installation

    1. See typical installation on page 7 (Fig 2). The Carbon filter is installed after the pressure tank. 2. Make sure to connect the IN pipe to the 7800 inlet and the OUT pipe to the outlet (see Fig 2). As you face the 7800 control from the front, the water enters on the right and exits on the left.

  • Page 5: How Your Carbon Filter Works

    7800 Carbon Filter Installation & Startup Guide 6. You do not need unions to install your 7800 control valve. If you need to remove it, the 7800 has quick-release couplings that make it easy to put the Carbon filter on by-pass and remove the filter system from the piping.

  • Page 6: Fig 2 - Typical Carbon Filter 7800 Piping Installation With Ball Valve And Hose Bib After The Filter

    7800 Carbon Filter Installation & Startup Guide Fig 2 - Typical Carbon Filter 7800 piping installation with ball valve and hose bib after the filter Page 6 www.cleanwaterstore.com Rev 120215...

  • Page 7: Npt In Noryl Plastic. Brass End-Connectors Are Also Available For Connecting To Copper Tubing

    7800 Carbon Filter Installation & Startup Guide Fig 3: 7800 from the rear showing the inlet (left) and outlet (right) end- connector fittings 3/4” or 1” NPT in Noryl plastic. Brass end-connectors are also available for connecting to copper tubing.

  • Page 8: Assembly And Installation Instructions

    Assembly and Installation Instructions 1. By hand, unscrew the entire 7800 control valve from top of tank if it was shipped screwed on. Place distributor tube in tank if not already inside. If not already done, make sure the blue cap is on top of distributor tube, or wrap the top of distributor tube with electrical or duct tape.

  • Page 9: Fig 5: 7800 By-Pass And Pipe Connectors

    (#3). 11. Note that the 7800 is usually shipped in the bypass position. There is a bypass valve knob on both the inlet and the outlet. You can easily tell if it is in bypass because the two knobs will be in line with each other (Fig 4).

  • Page 10: Initial Programming

    It is OK to run the drain line up and over the 7800 Carbon Filter up to 4 feet above the top of the tank. If the drain line will be more than 20 feet, use larger diameter tubing such as ¾”...
  • Page 11 First open the Inlet Side of the bypass valve. Second slowly open the Outlet Side of the bypass until it is in the full service position. The 7800 bypass valve knobs are a little stiff, so you can use Allen wrench placed in the holes to turn the knobs. Turn the bypass valve knobs in the correct direction which is counter-clockwise as you face the bypass valve knobs.

  • Page 12: Troubleshooting The 7800 Carbon Filter

    7800 Carbon Filter Installation & Startup Guide 2.5 Cubic Foot Model: 10 GPM recommended 31. The next cycle is the Rinse cycle and this runs for 6 to 8 minutes. After the backwash, the 7800 will automatically advance to the rinse cycle.
  • Page 13 7800 Carbon Filter Installation & Startup Guide 6) Open the Inlet valve just enough so you can hear the water passing thru the valve- you should notice a corresponding slow flow out of the drain line. After a minute, if there are no air bubbles present, open the valve about another quarter inch- again, you should see a corresponding increase in the flow…...
