Specifications

Weight without external battery
Weight with external battery
Dimensions
LCD touch screen display
LED indicators
Internal battery
External battery
External AC adapter/battery charger
Communication and accessory ports
Network analysis ports
Shock and vibration
Laser
Safety
EMC

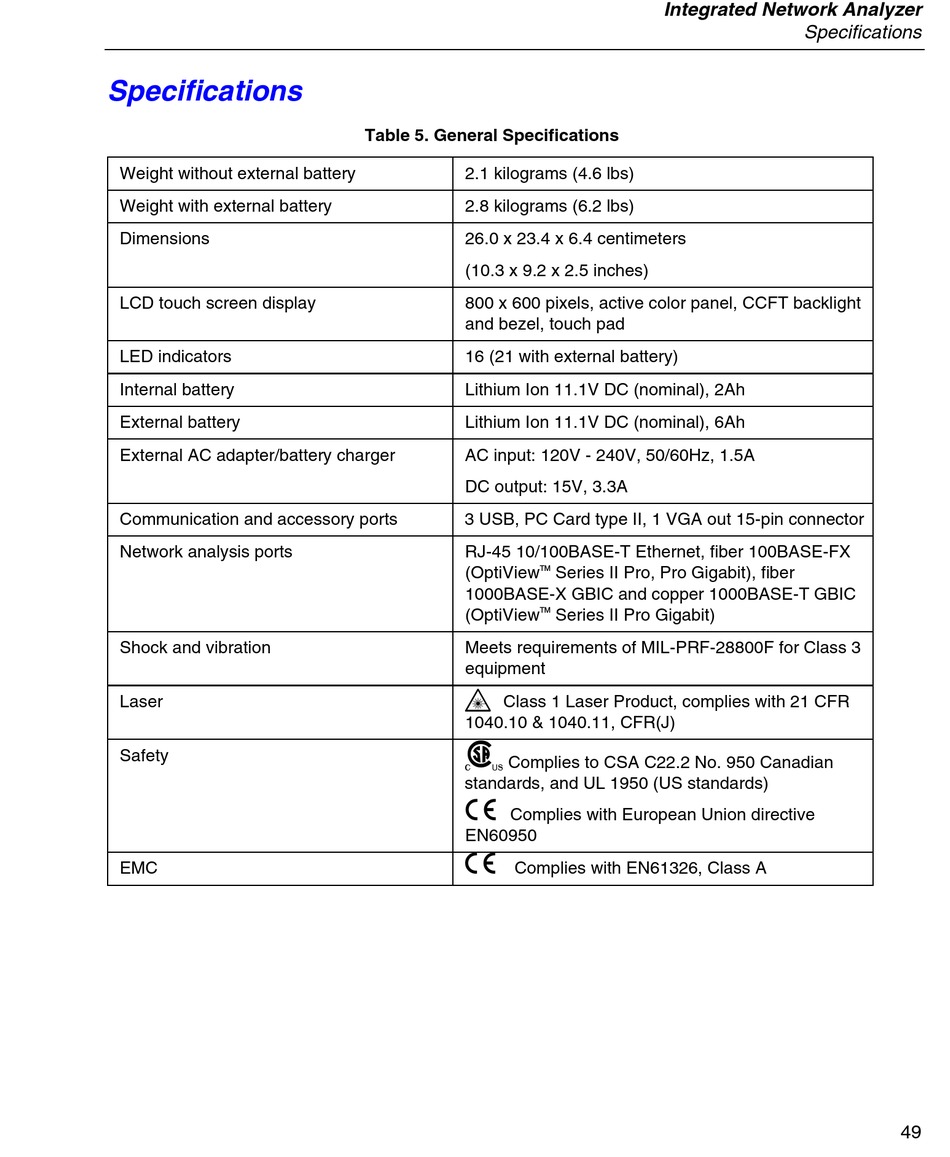

Table 5. General Specifications
2.1 kilograms (4.6 lbs)
2.8 kilograms (6.2 lbs)
26.0 x 23.4 x 6.4 centimeters
(10.3 x 9.2 x 2.5 inches)
800 x 600 pixels, active color panel, CCFT backlight
and bezel, touch pad
16 (21 with external battery)
Lithium Ion 11.1V DC (nominal), 2Ah
Lithium Ion 11.1V DC (nominal), 6Ah
AC input: 120V - 240V, 50/60Hz, 1.5A
DC output: 15V, 3.3A
3 USB, PC Card type II, 1 VGA out 15-pin connector
RJ-45 10/100BASE-T Ethernet, fiber 100BASE-FX
TM
(OptiView
1000BASE-X GBIC and copper 1000BASE-T GBIC
TM
(OptiView
Meets requirements of MIL-PRF-28800F for Class 3
equipment
*
Class 1 Laser Product, complies with 21 CFR
1040.10 & 1040.11, CFR(J)
)
Complies to CSA C22.2 No. 950 Canadian
standards, and UL 1950 (US standards)
P
Complies with European Union directive
EN60950
P
Complies with EN61326, Class A
Integrated Network Analyzer
Series II Pro, Pro Gigabit), fiber
Series II Pro Gigabit)
Specifications
49
