Connecting the External Battery
The external battery can be connected or removed with the analyzer
powered on.
The external battery is connected to the back of the analyzer as shown in Figure 4.
First, slide the external battery tabs into the tab slots on the bottom of the back of
the analyzer. Next, press the battery firmly against the analyzer, and turn the
thumb screws clockwise until finger tight.
Take care to align the battery tabs into the slots. Do not force the
external battery connection. If the thumb screws do not engage,
remove the external battery and try again.
Charger jack and status LED on battery

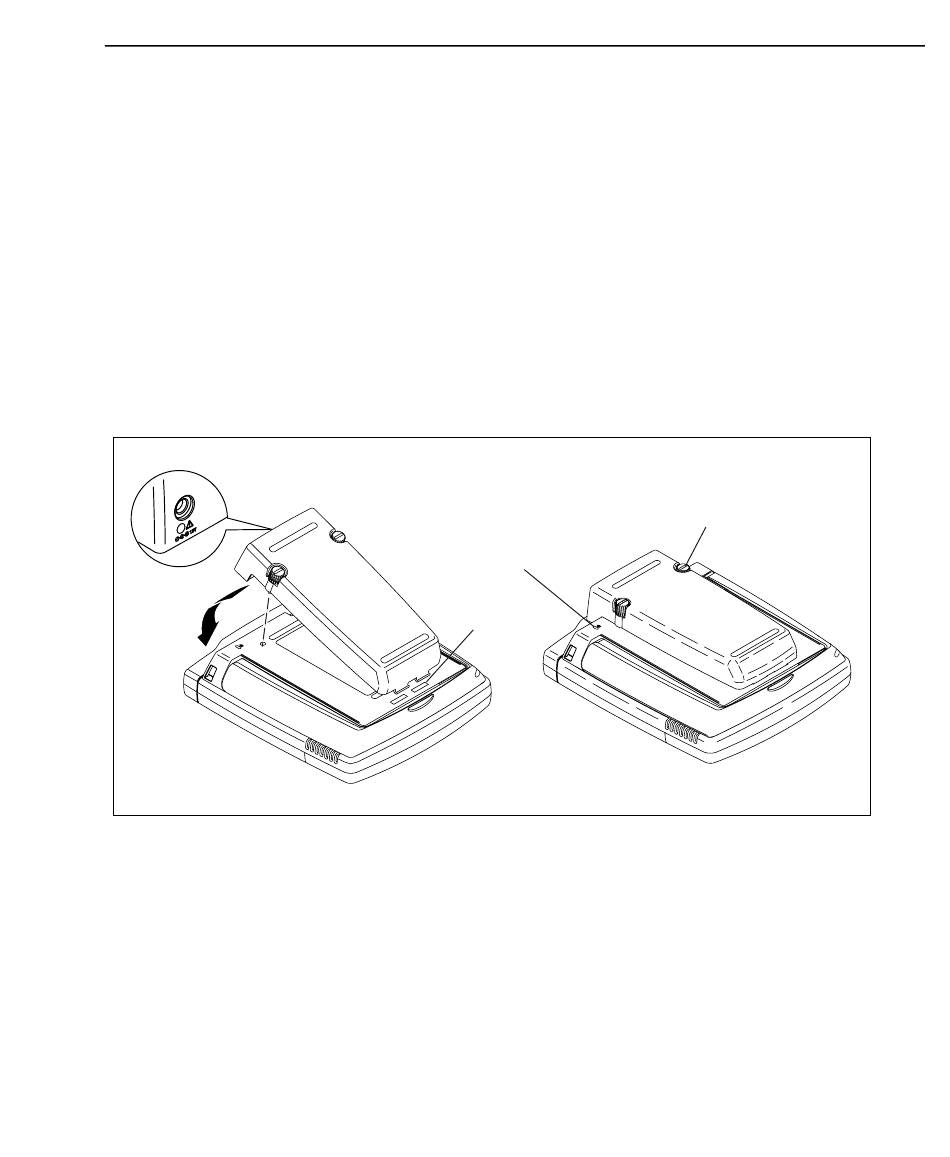

Figure 4. Installing the external battery and Charger Jack Location
Note
Note
Kensington
slot
Tabs
Integrated Network Analyzer
Using the Analyzer
Thumb screws
ahq07f.eps
11
