Panda xControl Manual
Panda_xControl_eng.R02
29.9.16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the xControl Series and is the answer not in the manual?

Questions and answers

Related Manuals for Fischer Panda xControl Series

Summary of Contents for Fischer Panda xControl Series

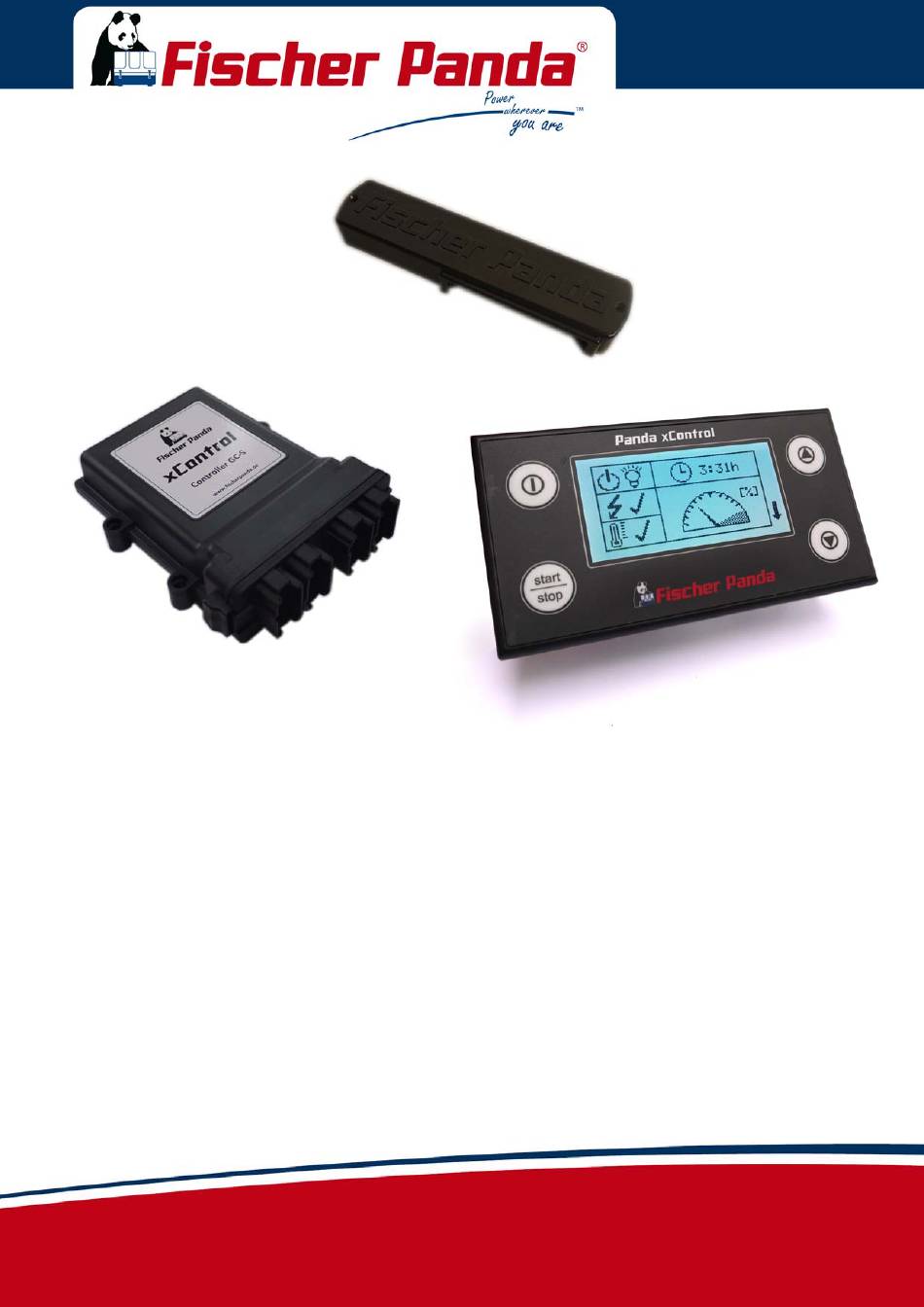

  • Page 1 Panda xControl Manual Panda_xControl_eng.R02 29.9.16...

  • Page 2: Current Revision Status

    Reproduction of and changes to the manual are permitted only by agreement and with the permission of the manufacturer! Fischer Panda GmbH, 33104 Paderborn, reserves all rights regarding text and graphics in this document. Details are given to the best of our knowledge. No liability is accepted for correctness. Please note: technical modifications aimed at improving the product may be implemented without prior notice.

  • Page 3: Table Of Contents

    Table of Contents Current Revision Status ............................. 2 1 Panda xControl Safety Instructions ......................5 Personnel.............................. 5 Safety Precautions..........................5 ................................6 2 Panda xControl .............................. 7 Components of the xControl ......................... 7 2.1.1 xControl - CP-G ......................
  • Page 4 Table of Contents 2.6.1 Symbols and messages on the display ................25 2.6.1.1 Example of message - "Sensor defective" ............25 2.6.1.2 Example of message - "Sensor/Cable break" ............25 2.6.2 Error code ........................... 25 2.6.2.1 Table of Faults....................

  • Page 5: Panda Xcontrol Safety Instructions

    The installation should be implemented by specially trained technical personnel or by authorised workshops (Fischer Panda Service Points), only. 1.2 Safety instructions Adhere to the safety instructions in the Fischer Panda Note! generator manual. If these instructions are not to hand, they can be requested from Fischer Panda GmbH, 33104 Paderborn, Germany.
  • Page 6 Panda xControl Safety Instructions Also observe the safety instructions for the other Note! components of your system. Page 6 - Chapter 1: Panda xControl Safety Instructions 29.9.16...

  • Page 7: Panda Xcontrol

    The xControl GC-S is usually installed in the generator capsule. The xControl GC-S takes over the monitoring and control of the diesel engine of the Fischer Panda generator, as well as the control of the output voltage and frequency of the generator.

  • Page 8: Installation

    2.2.3 Installation of the xControl - CP-G The xContol - CP-G is a CAN Bus module. All Fischer Panda CAN bus modules have two RJ45 ports. One for connection to the module on the CAN bus, the second to relay the CAN bus. The last module on the CAN bus must have a terminating resistor in the RJ45 port.

  • Page 9: Operation

    Panda xControl 2.3 Operation The xControl is operated by means of the xControl CP-G panel. Fig. 2.3-1: xControl CP-G front 2.3.1 Switching on the generator Press the "ON/OFF" switch to switch on the control Fig. 2.3.1-1: Switching on the generator system of the generator.

  • Page 10: Overview Page With Autostart Activated

    Panda xControl At the end of the power-on routine, the CP-G displays the Fig. 2.3.1-4: Overview Page 1 first overview page. The language as well as the display mode can be set in the menu. Overview Page 1 is the same in all display modes/languages. 2.3.1.1 Overview page with Autostart activated Deadly danger! - The generator can be equipped with an WARNING: Autostart...

  • Page 11: Symbols Used In The Overview

    Panda xControl 2.3.3 Symbols used in overview pages Overview Page 1: Fig. 2.3.3-1: Symbols used in Overview Page 1 01. Generator Status (on/off) 02. AC OK 03. Temperature of the generator (OK/Error) 04. Operating hours of the generator 05. Info screen Overview Page 1 is the same in all languages.
  • Page 12 Panda xControl Overview Page 3: Fig. 2.3.3-4: Overview Page 3 Symbols/English 09. Frequency of the generator [Hz] 10. Generator speed (r.p.m.) 11. Voltage of the starter battery [V] Overview Page 4: Fig. 2.3.3-5: Overview Page 4 Symbols/English 12. Temperature of the cylinder head 13.

  • Page 13: Starting The Generator

    Panda xControl 2.4 Starting up the generator. 2.4.1 Preparations for starting up / Checks (daily) for marine version 1. Oil level check (ideal level: 2/3 Max). The level should be about 2/3 of the maximum level when the engine is cold. Further, if installed, the oil level of the oil-cooled bearing must be checked before each start - see sight glass on generator front cover!.

  • Page 14: Starting The Generator

    Panda xControl 2.4.3 Starting up the generator Deadly danger! - The generator can be equipped with an WARNING: Automatic start-up Autostart function. This means that the generator is started by an external signal. In order to prevent an inadvertent start-up, the starter battery must be disconnected before work on the generator may commence.

  • Page 15: Stopping Des Generators

    Panda xControl 6. Starter and preheater Fig. 2.4.3-6: Preheating As soon as the high inrush current of the starter has dropped, preheating is switched on again. The engine idles for the first few seconds. Thereafter, the Fig. 2.4.3-7: Increase revolutions xControl increases the speed to the operating speed and indicates this in the display.

  • Page 16: The Menu

    2. "Generator" sub-menu - All settings related to the generator can be made in the "Generator" sub-menu, e.g. bleeding the fuel pump etc. 3. The "Service" sub-menu is blocked and can only be accessed by trained personnel and Fischer Panda employees.

  • Page 17: Sub-Menu: "Panel

    Panda xControl 2.5.2 Sub-menu: "Panel" The following items can be selected in the Panel sub- Fig. 2.5.2-1: Sub-menu: Panel menu: 1. Lighting - changes the brightness of the display in normal mode. 2. Contrast - changes the contrast of the display. 3.

  • Page 18: Setting The Contrast Of The Cp-G

    Panda xControl The value is changed by using the "Step-up"/"Step-down" Fig. 2.5.2.1-1: Sub-menu: Illumination keys and the setting is confirmed with the "Start/Stop - Enter“ key. "Cancel" or "Confirm" can be selected by using the "Step-up"/ "Step-down" keys and then confirmed with the "Start/Stop - Enter“...

  • Page 19: Setting The Language Of The Text Pages Of The Cp-G

    Panda xControl respective menu item opens. "Symbolic View" or "Text View" can be selected by using the Fig. 2.5.2.5-1: Sub-menu: Display Mode "Step-up"/"Step-down" keys and then confirmed with the "Start/Stop - Enter“ key. The "Back" item returns you to the "Panel" sub-menu. "Cancel"...

  • Page 20: Setting The Display To Flash In The Event Of A Fault

    Panda xControl "Off" or "On" can be selected by using the "Step-up"/"Step- Fig. 2.5.2.8-1: Sub-menu: Aural Alarm down" keys and then confirmed with the "Start/Stop - Enter“ key. The "Back" item returns you to the Panel sub-menu. "Cancel" or "Confirm" can be selected by using the "Step-up"/ "Step-down"...

  • Page 21: Resetting All Values Of The Panel Sub-Menu To Default Values

    Panda xControl The desired optional measurement data is changed by using Fig. 2.5.2.11-1: Sub-menu: Optional Measurement Data the "Step-up"/"Step-down" keys and the setting is confirmed with the "Start/Stop - Enter“ key. The desired option is selected by using the "Step-up"/"Step- down"...

  • Page 22: Setting The Autostart Of The Cp-G

    Panda xControl the factory settings 7. Back - Switching from the "Generator" sub-menu to the Main Menu 2.5.3.1 Setting the Autostart of the CP-G The menu item is selected by using the "Step-up"/"Step-down" keys confirmed with the "Start/Stop - Enter“ key. The respective menu item opens.

  • Page 23: Setting The Optional Dc Output Of The Cp-G

    Panda xControl The first overview page shows if the Autostart is active. Fig. 2.5.3-4: Overview Page 1 with Autostart 2.5.3.2 Setting the optional DC output of the CP-G The menu item is selected by using the "Step-up"/"Step-down" keys confirmed with the "Start/Stop - Enter“ key. The respective menu item opens.

  • Page 24: Reading Out The Event Memory Of The Cp-G

    Panda xControl Select the "Fuel Pump" or "Opt. DC Outputs" by using the Fig. 2.5.3.3-1: Sub-menu: Switching Outputs "Step-up"/"Step-down" keys and then confirm with the "Start/ Stop - Enter“ key. The "Back" item returns you to the "Generator" sub-menu. The value of the output can be set to "0" for deactivated or "1"...

  • Page 25: How To Set The Panel Language After A Reset

    Panda xControl 2.5.4.1 How to set the panel language after a reset. 1. Switching on the xControl Panel CP-G 2. Wait until the first overview screen appears. 3. Scroll to the last overview screen. 4. Press the "Start/Stop - Enter" key to access the menu. 5.

  • Page 26: Table Of Faults

    Panda xControl Fig. 2.6.2.0-1: Sub-menu: "Event Log" Error type Error symbol/ (Warning/Error shutdown) Error text QR Code Error number 2.6.2.1 Table of Faults See also the "Faults" chapter in the manual of the generator. Fig. 2.6-1: Table of faults Description Cause Explanation Warning...

  • Page 27: Description Of The Symbols

    Panda xControl Description Cause Explanation Warning Gen.Stop Info Stop solenoid - Pull Failure stop solenoid pull coil Short circuit n.a. Optional DC out Failure optional DC out Short circuit n.a. Power Supply Current Sensor Current too Short circuit defect high Boost Relay Failure Boost relay short circuit or too many...

  • Page 28: Accessories

    Panda xControl Symbol Description Symbol Description Faults No contact Voltage Generator output Broken Short circuit (%)/Load Generator runs AC Voltage Generator off Run-up phase/Over- Generator start-up Temperature ride Standby Engine Automatic start-up. Exhaust system Starter battery Winding Operating hours Preheating Oil pressure Speed/RPM Self test...
  • Page 29 Panda xControl Terminating resistor:34.02.02.133H Fig. 2.7-2: Terminating resistor:34.02.02.133H Adapter Frame: 31.03.20.263H Fig. 2.7-3: Adapter Frame: 31.03.20.263H xContol CP-G in a Generator Control (P6+) section 29.9.16 Chapter 2: Panda xControl - Page 29...

  • Page 30: Dimensional Drawing

    Panda xControl 2.7.1 Dimensional drawing Fig. 2.7.1-1: CP-G Page 30 - Chapter 2: Panda xControl 29.9.16...
