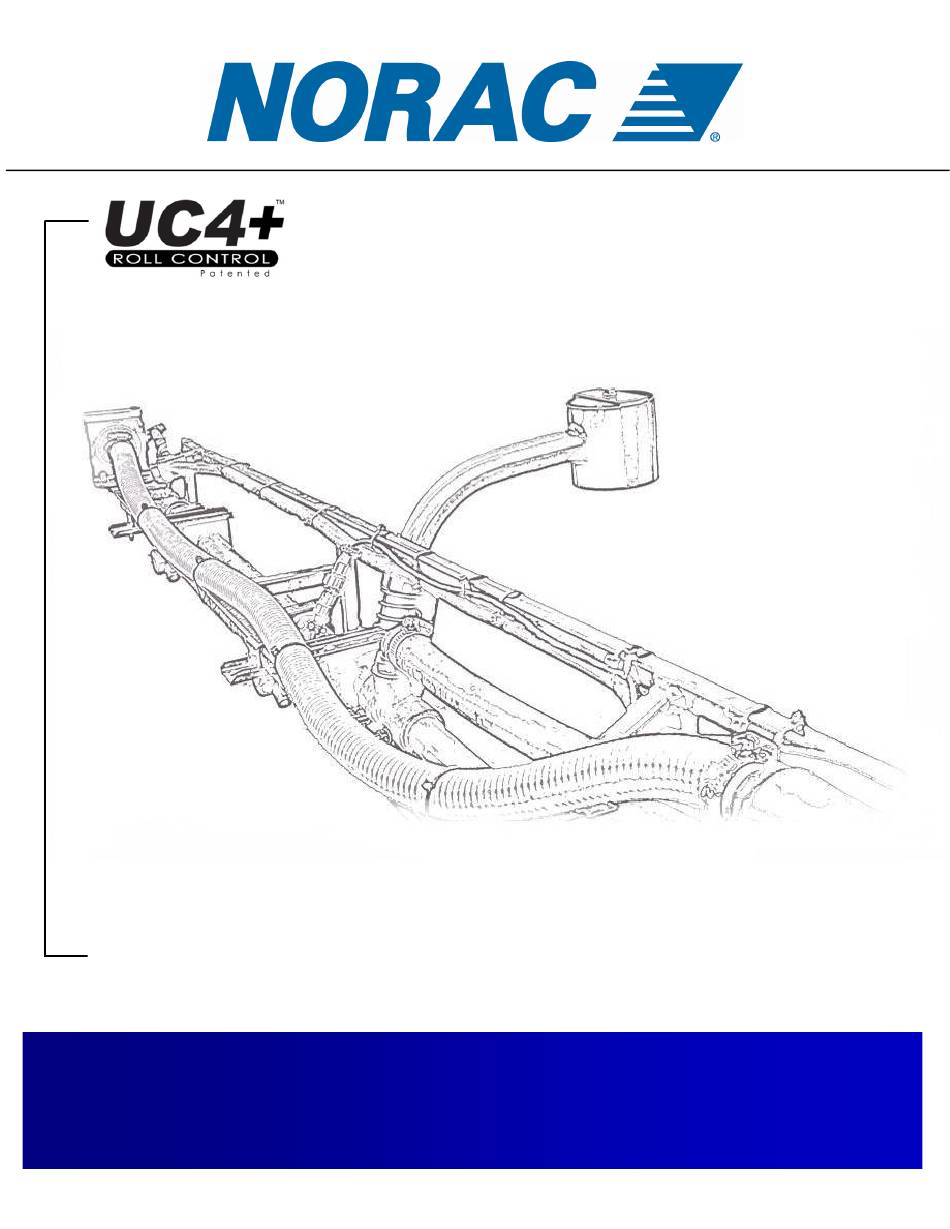

Spray Height Controller
RAU OEM (Variable Geometry- RA1)
Installation Manual
Improving the competitiveness of Industry and
Agriculture through Precision Measurement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC4+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Norac UC4+

Summary of Contents for Norac UC4+

  • Page 1 Spray Height Controller RAU OEM (Variable Geometry- RA1) Installation Manual Improving the competitiveness of Industry and Agriculture through Precision Measurement...
  • Page 2 Reorder P/N: UC4+BC+RA1-INST Rev E (RAU VARIABLE GEOMETRY OEM) NOTICE NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and without the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information contained...

  • Page 3: Table Of Contents

    4.5.1 RAU Boom Roll Sensor Mounting ..................18 4.5.2 RAU Chassis Roll Sensor Mounting ..................18 4.5.3 Temperature Probe ....................... 19 ......................20 YDRAULIC NSTALLATION NORAC V ..................22 ALVE OUNTING ARDWARE RAU V ....................... 23 ALVE OUNTING ......................... 24...

  • Page 4: Introduction

    INTRODUCTION Congratulations on your purchase of the NORAC UC4+ Spray Height Controller. This system is manufactured with top quality components and is engineered using the latest technology to provide operating features and reliability unmatched for years to come. When properly used the system can provide protection from sprayer boom damage, improve sprayer efficiency, and ensure chemicals are applied correctly.

  • Page 5: General System Description

    All parts supplied are selected specially to fit the sprayer to facilitate a complete installation. However, NORAC cannot guarantee all parts fit as intended due to the variations of the sprayer by the manufacturer. Please read this manual in its entirety before attempting installation.

  • Page 6: Parts Lists

    HYDRAULICS FITTING KIT - GN1 M01A* 446BC+MAN6-1 MANUAL UC4+ BOOM CONTROL 2008 OPERATORS SMALL BOOKLET M01B* 446BC+MAN6-2 MANUAL UC4+ BOOM CONTROL 2008 QUICK REFERENCE SMALL BOOKLET UC4+BC+RA1-INST MANUAL INSTALLATION UC4+ RAU VARIABLE GEOMETRY M13* UC4+BC+RA1-INSTE MANUAL INSTALLATION END-USER RAU 44933D VALVE...
  • Page 7 Table 2 - 44865-43 (Rev B) - Hydraulics Fittings Kit Details Item Part Number Name Quantity Picture 501304 COUPLING HYD 6MB 4MBSPP 104369 COUPLING HYD 6MBP ORIFICE INSERT .047 IN ONE WAY 44928 6 M B - 6 M OR X 90 Fitting Name Example: ANGLE...
  • Page 8 The parts that come with your UC4+ System are shown below in their general installation configuration. Figure 2 – UC4+ Spray Height Control Components *If your valve connectors or cables appear different than shown, refer to Appendix A for more details.
  • Page 9 Figure 3 – Hydraulic Plumbing Schematic...

  • Page 10: Installation Procedure

    Inspect boom suspension wear-pads for excessive wear o This UC4+BC+RA1 kit is designed to control the RAU variable-geometry boom. This requires that the boom is fitted with variable-geometry tilt cylinders. If this install requires adding tilt cylinders:...
  • Page 11 o Set the boom suspension to be critically damped (Figure 4). Adjust the boom springs and dampers accordingly. A) Unlock the boom, and push boom tip down approximately 75 cm (30 inches). B) Hold the boom steady for a moment, and release. C) Ensure the boom returns to its relaxed state as quickly as possible, with little to no overshoot.

  • Page 12: Wing Sensor Installation

    3. Mount the NORAC UC4+ ultrasonic sensor (E02) into the sensor brackets. The sensors should be oriented forward (ahead) of the boom (see Figure 8 and Figure 10).
  • Page 13 General mounting rules for UC4+ ultrasonic wing sensors: a) In its lowest position, the sensor mouth must be 9 inches or more from the ground. b) The bottom of the sensor must be at least 9 inches in front of the spray nozzles. c) The bottom of the sensor must be at least 9 inches above the spray nozzles.

  • Page 14: Suggested Mounting Location For Wing Bracket On Hsa (Aluminum) Boom

    4.3.1 Suggested Mounting Location for Wing Bracket on HSA (Aluminum) Boom Mounting the NORAC UC4 breakaway bracket to the HSA aluminum boom will require the use of a RAU aluminum boom clamp, as illustrated below. RAU CLAMP Figure 11: UC4 Sensor Bracket mounted to boom using RAU HSA boom clamp Using this clamp will also require adjusting the hole width of the NORAC bracket to accommodate the larger bolts and differences in dimensions between the 2 parts.
  • Page 15 NOTE: It may be necessary to create an adapter to mount the NORAC UC4+ bracket to the RAU HSA boom. This bracket, when used in conjunction with the RAU HSA boom clamp, will prevent the boom from rotating down towards the ground due to the clamp slipping on the aluminum.

  • Page 16: Suggested Mounting Location For Wing Bracket On Hss (Steel) Boom

    Use the square bracket mounting plate and the included hardware to mount the UC4 bracket to the HSS boom, as illustrated. NORAC HARDWARE Figure 14: HSS Boom Mount the UC4 bracket to the HSS boom as shown below, inside of the break-away section.
  • Page 17 NOTE: When arranging height sensors, install the serial numbers from lowest to highest, left to right. Figure 16 – Sensor serial number installation location (Example)

  • Page 18: Main Lift Sensor Mounting

    4.4 M ENSOR OUNTING The General Mounting Rules for UC4+ Ultrasonic Sensors (Section 4.3), must also be followed for the Main Lift sensor. It is not required that the Main Lift sensor be mounted at the same height (above the nozzles) as the wing sensors. The Main lift sensor bracket (Item B11) can be mounted as illustrated below.

  • Page 19: Roll Sensor Installation

    4.5 R ENSOR NSTALLATION Mount the roll sensors to the included roll sensor brackets using the machine screws and nylon lock nuts, as illustrated in Figure 19. Ensure roll sensor assemblies are oriented as shown in Figure 20 with the cable exiting towards the Right-hand wing.

  • Page 20: Rau Boom Roll Sensor Mounting

    4.5.1 RAU Boom Roll Sensor Mounting Mount the boom roll sensor to the rolling part of the boom. After the NORAC valve block is mounted (in step 4.7), it is possible to mount to the boom roll sensor to the valve block mounting bracket (B10) as illustrated.

  • Page 21: Temperature Probe

    4.5.3 Temperature Probe Once the block is mounted, fasten the temperature probe (E03) to the UC4 valve block using the included 3/8x1/2” bolt as illustrated in Figure 21. Figure 21 - UC4+ Valve block with temperature probe installed...

  • Page 22: Hydraulic Installation

    1. Refer to Figure 22. On a clean surface remove the plastic plugs from the “A”, “B”, “P”, and “T” ports of the NORAC hydraulic valve (Item V01). Install the 6MB-4MBSPP fittings (Item F02) on the “P” and “T” ports and tighten to 18 ft-lbs.
  • Page 23 Figure 22 - UC4+ valve block ports Figure 23 – Single-acting valve assembly...

  • Page 24: Norac Valve Mounting Hardware

    4.7 NORAC V ALVE OUNTING ARDWARE Mount the Norac valve block using the included mounting hardware (Item B10). Two lengths of mounting studs are included for different mounting applications- choose the length to suit your needs. Item B10 Tighten Nut against Block...

  • Page 25: Rau Valve Mounting

    ALVE OUNTING Mount the NORAC valve block to the sprayer as shown in Figure 25 and Figure 26. Figure 25: Valve mounting location on RAU boom (Viewed from rear of sprayer) Figure 26: Valve mounting (Viewed from front of sprayer)

  • Page 26: Hydraulic Plumbing

    The wing tilt “raise” must be connected to the “B” ports of the NORAC block, and the existing RAU lines (if applicable) must be connected). a. Connect the “B” ports of the Norac block to the wing raise lines by connecting hoses between the “B” ports and “raise” side of the tilt cylinders.

  • Page 27: Electrical Installation

    2. Connect the 6-pin tower on the valve cable (C03) to the mating 6-pin shroud (S6) on C11. 3. Install the square DIN connectors from C03 onto each NORAC valve as shown in Figure 28. The connectors on C03 are marked RIGHT UP, LEFT UP, RIGHT PORT (“right down”), and LEFT PORT (“left down”).

  • Page 28: Rau Valve Connections

    ONNECTIONS 1. Refer to Figure 29. 2. Connect the RAU Valve Drive PCB (C12) to the NORAC harness (Item C11) using harness C13. Connect all 3 Weatherpack connectors. 3. Plug item C12 into C14, and securely fasten the module with cable-ties.
  • Page 29 Figure 30: C15 cable 5. Connect Item C14 to the RAU valve drivers and power connections: a. Insert the 6-conductor wire into the RAU valve driver enclosure (SHC box) by removing a plug from an unused hole. Use a strain-relief grommet to protect the cable and weatherproof the entry.

  • Page 30: Completing The Factory Installation

    UC4 sensors as this may result manufacturer’s boom controls. in measurement error. NORAC Control Panel (E01) does not 7. At this point the UC4 panel should need to be powered up for the original display the Main Operating Screen: switches to function.

  • Page 31: Electrical Reference - Cable Drawings

    ELECTRICAL REFERENCE – CABLE DRAWINGS C02: 44668 – S ENSOR RANCH ABLE 5.2 I C02B: 44664 – C UC4 CAN N ABLE...

  • Page 32: Item C3: 44656 - Valve Cable (Variable Rate )

    5.3 I C3: 44656 – V ALVE ABLE ARIABLE...

  • Page 33: Item C10: 44650-35- Cable Power Generic Pull -Type

    5.4 I C10: 44650-35- C ABLE OWER ENERIC...

  • Page 34: Item C11: 44651-03- Cable Extension Valve Generic

    5.5 I C11: 44651-03- C ABLE XTENSION ALVE ENERIC...

  • Page 35: Item C13: 44658-58- Interface Cable Uc4 Rau I/O 1

    5.6 I C13: 44658-58- I UC4 RAU I/O 1 NTERFACE ABLE...

  • Page 36: Item C14: 44658-59- Interface Cable Uc4 Rau I/O 2

    5.7 I C14: 44658-59- I UC4 RAU I/O 2 NTERFACE ABLE...

  • Page 37: Item C15: 44658-61- Interface Cable Uc4 Rau Bypass

    5.8 I C15: 44658-61- I UC4 RAU B NTERFACE ABLE YPASS...

  • Page 38: Appendix A - Valve Connector Change

    APPENDIX A – VALVE CONNECTOR CHANGE Starting in January 2009, NORAC is changing the connectors on the boom height control valve block. The new style valve block will have 2-pin Deutsch connectors on the coils. The previous models had Hirschman style connectors as shown in Figure 2. The new style valve blocks and cabling look similar to Figure 31 and Figure 32.
  • Page 39 Canada NORAC Systems International Inc. CALL TOLL FREE: 1-800-667-3921 (306)664-6711 SHIPPING ADDRESS: 3702 Kinnear Place Saskatoon, SK S7P 0A6 United States Norac, Inc. CALL TOLL FREE: 1-866-306-6722 (763)786-3080 SHIPPING ADDRESS: 1290 Osborne Rd NE, Suite F Fridley, MN 55432-2892...
