Summary of Contents for Sensidyne Gilian BDXII

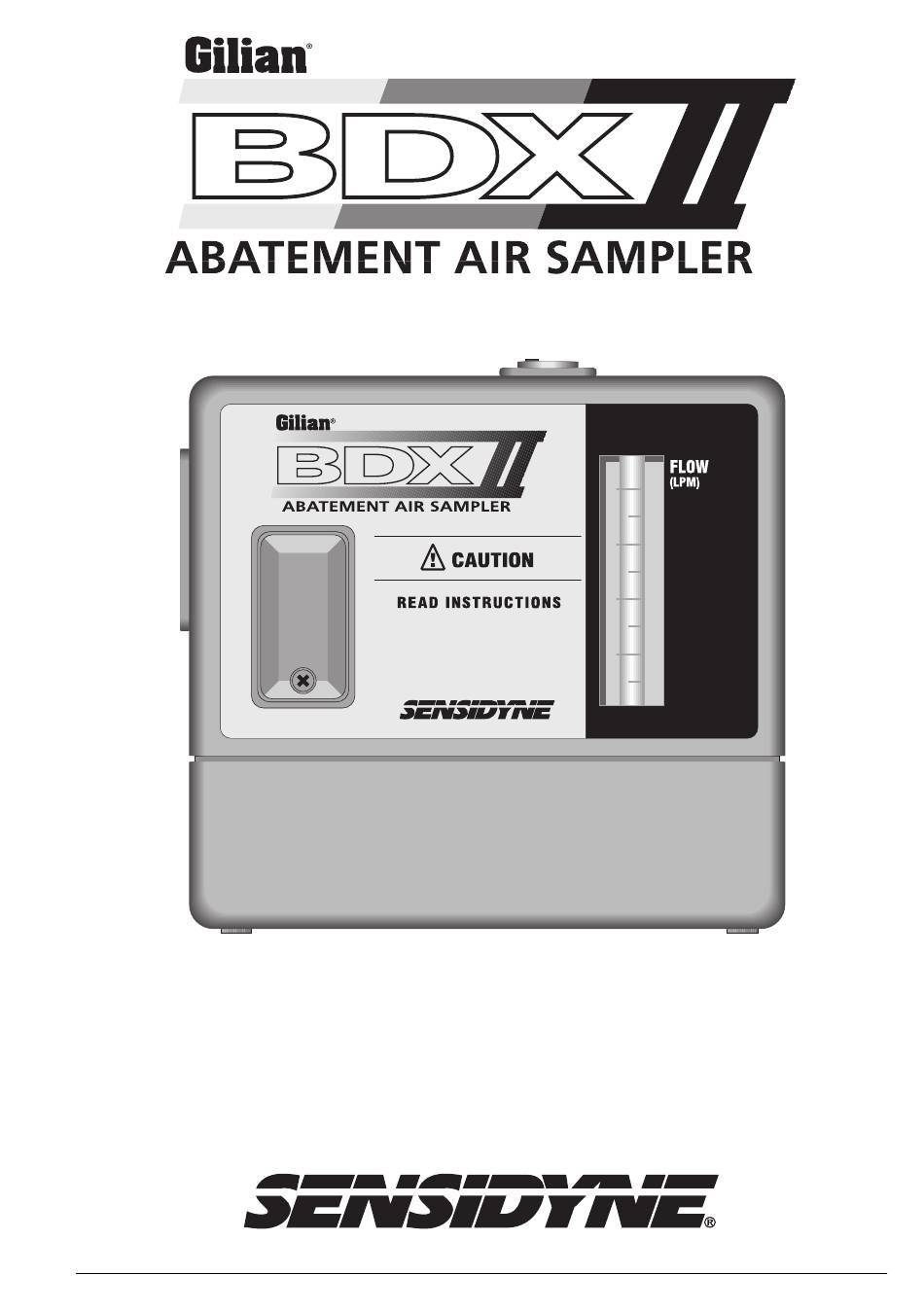

- Page 1 Use only with specified BDXII Battery Pack (Part No. 801862) Made in USA by ® Patent Pending OPERATION & SERVICE MANUAL 16333 Bay Vista Dr. • Clearwater, FL 33760 • (800) 451-9444 • (727) 539-0550 [FAX] Revision A • Document No. 801863M...
- Page 2 BDXII ABATEMENT AIR SAMPLING PUMP PROPRIETARY NOTICE This manual was prepared exclusively for the owner of the Gilian BDXII Abatement Air Sam- pler. The material within this manual is proprietary information and is to be used only to under- stand, operate, and service the instrument. By receiving this document, the recipient agrees...
-
Page 3: Table Of Contents
TABLE OF Gilian ® BDXII ABATEMENT AIR SAMPLING PUMP CONTENTS • PREFACE • Packing List ...................... 3 • Notices ......................4 • WARNINGS ....................... 7 SECTION ONE: INTRODUCTION Overview ....................8 General Description ................8 SECTION TWO: OPERATION Introduction ..................11 Calibration (Flow Adjust) .............. - Page 4 TABLE OF Gilian ® BDXII ABATEMENT AIR SAMPLING PUMP CONTENTS SECTION FOUR: APPENDICES • Appendix A: Parts List ................18 • Appendix B: Specifications ..............19 • Appendix C: Troubleshooting Guide ............ 20 • Appendix D: Returned Material Authorization • Returned Material Authorization ............
-
Page 5: Warnings
Manual . Contact the Service Department to arrange for a Returned Material Authorization (RMA). Use ONLY genuine Sensidyne replacement parts when performing any maintenance procedures described in this manual. Failure to do so may seriously impair instrument performance . Repair or... -
Page 6: Overview

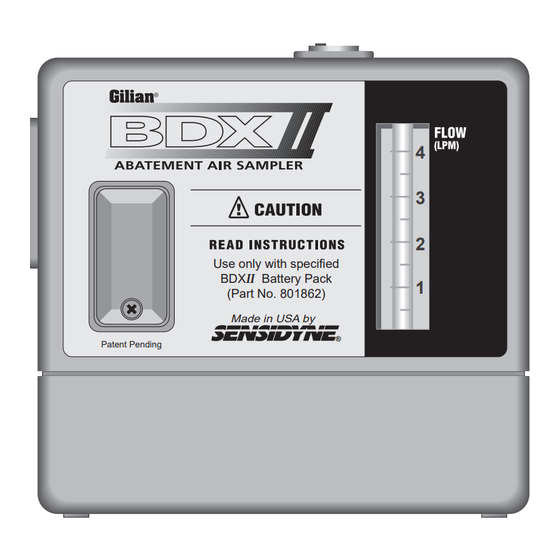

SECTION ONE Gilian ® BDXII ABATEMENT AIR SAMPLING PUMP INTRODUCTION OVERVIEW GENERAL DESCRIPTION The BDXII Abatement Air Sampler consists IMPORTANT of a pump contained in a Lexan plastic You must read this manual in its entirety to case, electronic flow control system, a ensure proper operation of your unit. - Page 7 Gilian ® BDXII ABATEMENT AIR SAMPLING PUMP OPEN CIRCLE: EXTERNAL CLOSED CIRCLE: INTERNAL INTERNAL/EXTERNAL VENT CONTROL Use only with specified BDXII Battery Pack (Part No. 801862) Made in USA by ® Patent Pending Flow Adj. FLOW ADJUST CONTROL POWER SWITCH ANTI-TAMPER DOOR Figure 1.1 BDXII Abatement Air Sampler (Front view)
- Page 8 Gilian ® BDXII ABATEMENT AIR SAMPLING PUMP INTERNAL/EXTERNAL VENT CONTROL FILTER ASSEMBLY SCREWS (4) INTERNAL FILTER ASSEMBLY BATTERY CHARGING JACK RECHARGEABLE BATTERY PACK BELT CLIP Figure 1.2 BDXII Abatement Air Sampler (Side view) Document No. 801863M (Rev A)
-
Page 9: Introduction
SECTION TWO ® Gilian BDXII ABATEMENT AIR SAMPLING PUMP OPERATION INTRODUCTION CALIBRATION (FLOW ADJUST) Before using the BDXII for sampling, the To ensure proper operation of the BDXII unit must be properly prepared. This in- Abatement Air Sampling Pump, the unit cludes charging and calibrating the unit for should be properly calibrated prior to sam- proper flow rate. -
Page 10: Bdxii Pump Calibration (Flow Adjust)
® Gilian BDXII ABATEMENT AIR SAMPLING PUMP FLOW Adjust flow (LPM) ABATEMENT AIR SAMPLER on pump Flow Adj. CAUTION READ INSTRUCTIONS Use only with specified BDXII Battery Pack (Part No. 801862) Made in USA by ® Patent Pending BDXII ABATEMENT AIR SAMPLER GILIBRATOR 2 (or equivalent precision flowmeter) -
Page 11: Operation
Gilian ® BDXII ABATEMENT AIR SAMPLING PUMP OPERATION 4) Move the On/Off switch to the On po- Begin the sample run by switching the sition. On/Off switch to the On position. Secure the front anti-tamper cover. The pump will 5) Set the pump flow rate by turning the operate at the flow rate set at the last cali- flow adjust screw (clockwise for in- bration (flow adjustment). -
Page 12: General Maintenance
BDXII ABATEMENT AIR SAMPLING PUMP MAINTENANCE GENERAL MAINTENANCE BATTERY MAINTENANCE The BDXII Abatement Air Sampling Pump The Gilian BDXII Abatement Air Sampler is relatively maintenance free. Most main- uses rechargeable Nickel-Cadmium batter- tenance involves periodic inspection of ies. The battery packs must be fully... -
Page 13: Battery Pack Removal
Gilian ® BDXII ABATEMENT AIR SAMPLING PUMP BATTERY PACK SCREWS (2) BATTERY CHARGING JACK RECHARGEABLE BATTERY PACK Figure 3.1 Battery Pack Removal Document No. 801863M (Rev A) -
Page 14: Battery Charging
Gilian ® BDXII ABATEMENT AIR SAMPLING PUMP 3.2.1 Battery Charging 3.2.2 Available Battery Chargers • Battery Life • Single-Unit Charger Battery life is usually measured in charge/ Single unit chargers provide a constant- discharge cycles. Gilian battery packs are rate charge of 190 mA and can fully charge capable of providing 300–500 charging a BDXII battery pack in 14 hours. -
Page 15: Filter Maintenance
® Gilian BDXII ABATEMENT AIR SAMPLING PUMP FILTER MAINTENANCE The BDXII internal filter should be 5) Insert a new filter in the filter housing. changed whenever it becomes clogged or Make certain the filter is properly cen- dirty. The condition of the internal filter is tered and flat. -
Page 16: Appendix B: Specifications
APPENDIX B Gilian ® BDXII ABATEMENT AIR SAMPLING PUMP SPECIFICATIONS General Specifications Controls ..........Power Switch, Flow Control Flow Indicator ........Built-in rotameter, range 500–4000 cc/min, with 500 cc/div @ ± 20% Full Scale accu- racy. Additional Features ......See-through external filter housing, with filter monitoring lens;... -
Page 17: Appendix C: Troubleshooting Guide
APPENDIX C Gilian ® BDXII ABATEMENT AIR SAMPLING PUMP TROUBLESHOOTING GUIDE • o l f o l f t l i f i t c t l i f . r e • o l f r i s n i t i l p t l i f e t t... -
Page 18: Returned Material Authorization
Please indicate if RMA #:_______________________ SERVICE OPTIONS The Sensidyne Service Department offers you a variety of service options which will help increase your user confidence while minimizing costly interruptions and maintenance costs. These options include initial training, on-site technical assistance, and full factory repairs.
