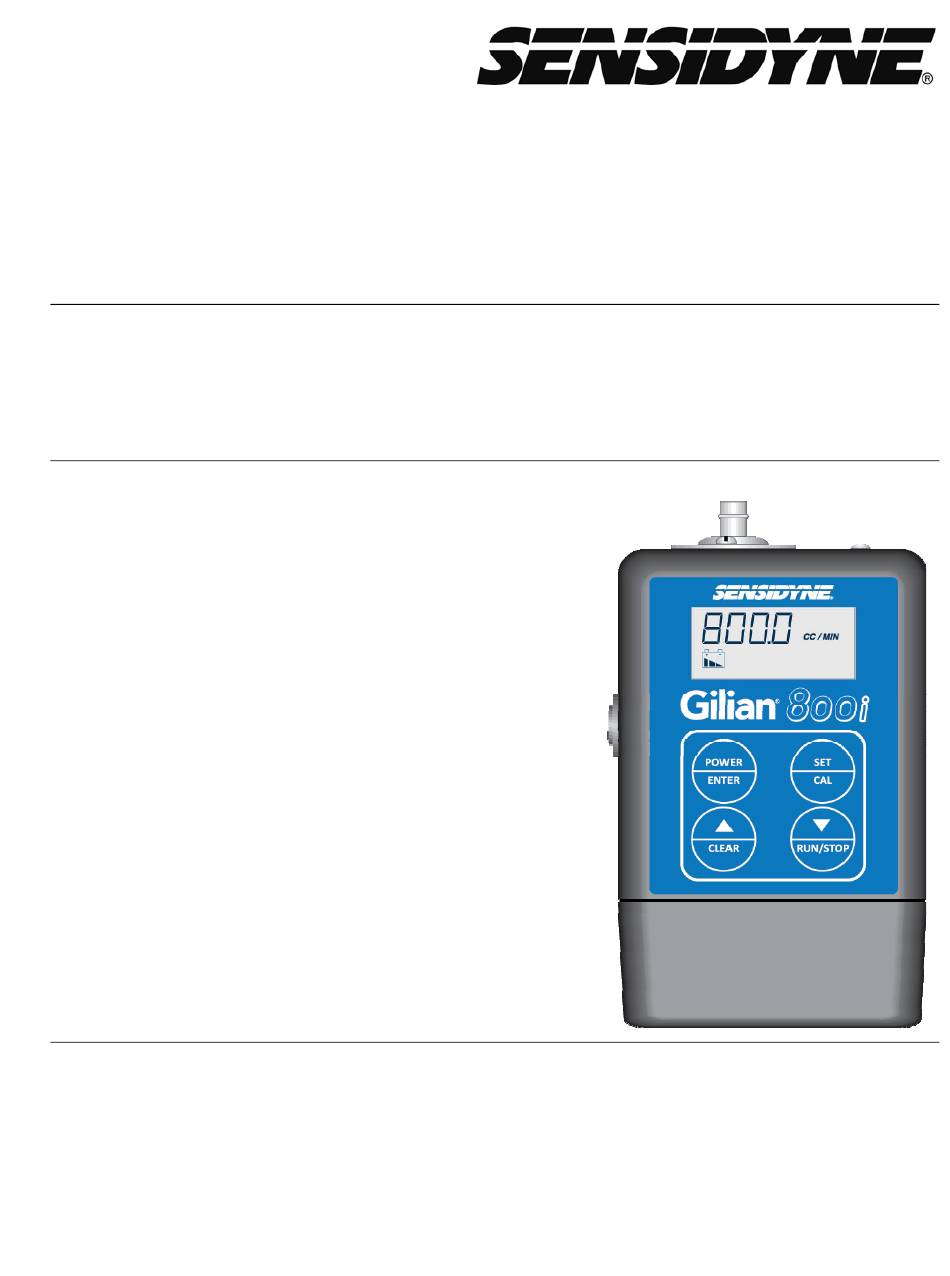

Gilian 800i Quick Start Manual
This manual covers specifications, warnings and basic operation. For compete information,
including detailed operation, options, and other details see the Operation Manual (PN 360-
0166-01). The warnings, safe operation, installation and maintenance instructions in that
manual should be adhered to at all times.
Cautions:
Pump is intrinsically safe for use in areas designated in the attached specifications listed on
page 4. Do not replace or charge batteries in hazardous area. Charge batteries completely
before each use. No special discharge or battery conditioning required. Use only specified
charger, and charge only within specified temperature range.

Operation Guide

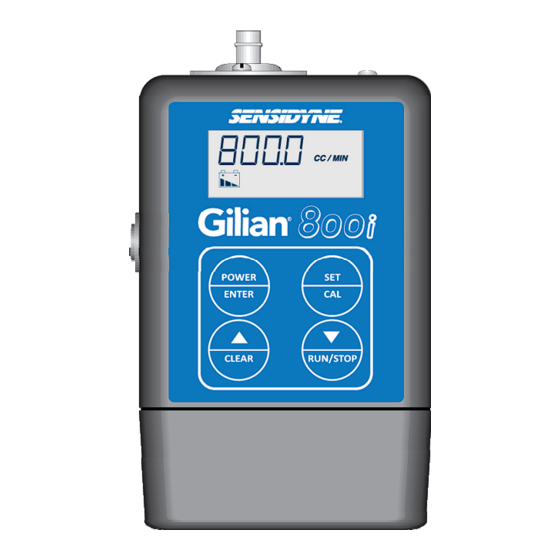

Keypad Operation

Power/Enter: Press momentarily to turn on. While on,
press for five seconds to turn off. Also used to confirm
entries and adjustments.
Set/Cal: Used to select flow rate set (FLO)
or Calibration (CAL)
▲/Clear: Used in set modes to adjust
displayed value upward. Also used to reset
accumulated run data before initiating new
sample when held down for 15 seconds.
▼/Run/Stop: Used in set modes to adjust
displayed value downward. Also used to
start and stop sampling when held down
for five seconds.

Turning Pump power ON and OFF

On: Press Power/Enter key momentarily to turn power on. Display turns on all segments
and indicators briefly, shows the software revision, shows the number of hours since
last calibration, then enters the Ready mode.
Off: While the pump is in Ready mode (not running), press and hold the Power/Enter key
for several seconds, until the display shows "OFF". After a few seconds, the pump will
turn power off.
