Sensidyne Gilian GilAir Plus Series Quick Start Manual

Advertisement

Quick Links


































Quick‐Start Guide
GilAir Plus Basic, PN 610‐0901‐01‐R
GilAir Plus Datalog, PN 610‐0901‐02‐R
GilAir Plus STP, PN 610‐0901‐03‐R



16333 Bay Vista Dr. • Clearwater, FL 33760 USA
(800) 451‐9444 / +1 (727) 530‐3602
 www.Sensidyne.com •info@Sensidyne.com
REF 360-0135-01 (Rev A)

© 2010 Sensidyne, LP


Advertisement

loading
Need help?

Need help?

Do you have a question about the Gilian GilAir Plus Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Sensidyne Gilian GilAir Plus Series

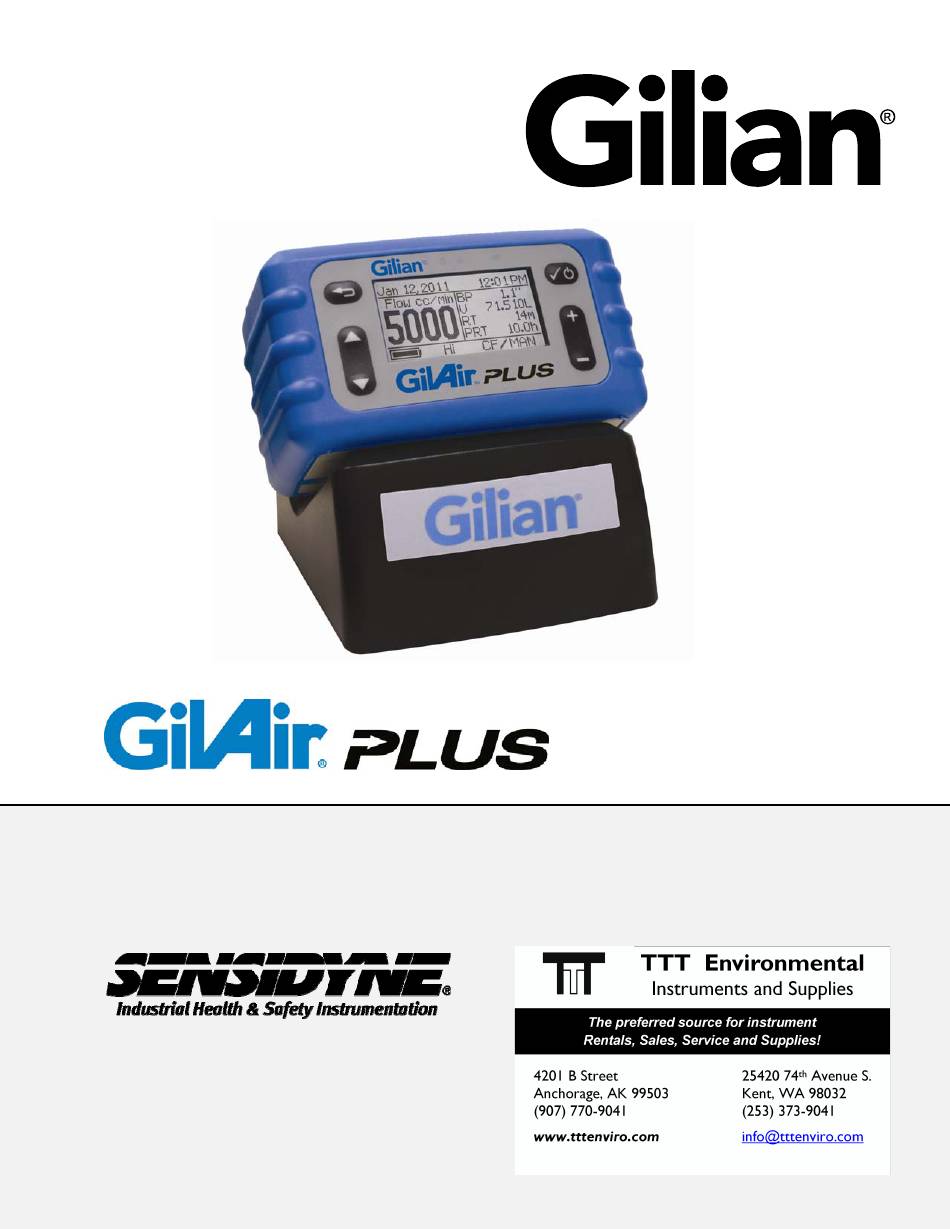

  • Page 1                           Quick‐Start Guide   GilAir Plus Basic, PN 610‐0901‐01‐R  GilAir Plus Datalog, PN 610‐0901‐02‐R  GilAir Plus STP, PN 610‐0901‐03‐R        16333 Bay Vista Dr. • Clearwater, FL 33760 USA (800) 451‐9444 / +1 (727) 530‐3602   www.Sensidyne.com •info@Sensidyne.com  REF 360-0135-01 (Rev A) © 2010 Sensidyne, LP...
  • Page 2 POWER/ENTER    Constant    Flow Run      Menu          NAV    INC/DEC            Main Menu        Operation Guide  Power Pump On and Off    Pump should be fully charged before use.   Power Pump On  Power Pump Off  Press and hold the POWER/ENTER key until the pump  When pump is not running or in a program pause,  displays the Start up Screen   press and hold POWER/ENTER key.  Continue to hold POWER/ENTER until Power down    window appears and countdown completes.  © 2011 Sensidyne, LP  Gilian GilAir® Plus – Personal Air Sampling Pump – Quick‐Start Guide ...
  • Page 3 While pump displays the Main Menu use the NAV  keys to select Calibrate, then Press the  POWER/ENTER key.    Field Calibration Note:  Display calibration procedures above make internal pump adjustments and improve the accuracy of the flow display. This does  not replace field calibration as described by OSHA and NIOSH. Conduct flow verification using a Primary Calibrator prior to  each field sample. Field calibration procedures are referenced in the NIOSH Manual of Analytical Methods at    www.cdc.gov/niosh and the OSHA Technical Manual at www.osha.gov.     Starting the Sample Run    Stopping the Sample Run  With pump displaying the Main Menu use the NAV  keys to select Run.   From any display, press POWER/ENTER.  Press the POWER/ENTER key.  The Pause/Stop Menu will appear in the upper   Note:  Before it enters the Run mode, the pump  left corner of the display.   may go into a self‐calibration mode for 7‐10  Select Stop and press POWER/ENTER to stop the  seconds.  During this interval, "Sensor Calibration"  sample.  displays.     Retrieving Data  From the Main Menu, using the NAV keys select Review.  Press POWER/ENTER.  Use the NAV keys to select among the last sixteen events.  Note:   Total Run Time and Total Volume Sampled do not reset during Pause. However, Stop will end the sampling event and the  data will clear at the next sampling event. Data displays until the next event starts. Select Review to retrieve previous    sampling data.  See Retrieving the Data (above). © 2011 Sensidyne, LP  Gilian GilAir® Plus – Personal Air Sampling Pump – Quick‐Start Guide ...
  • Page 4: Specifications

    ► SETPOINT                 (2000)  ► RUN OPTIONS ►  ► PROG STEP              (01)  ► STANDARD TEMP  ► FUNCTION                (Time / On    ► STANDARD PRESSURE                Interval / Off Interval / Cycle)  ► DISPLAY OPTIONS ►  ► FUNCTION VALUE   00:00  ► LANGUAGE (English / Spanish / French / Italian / Dutch  ► SAVE        / Portuguese / German)    ► TEMPERATURE UNITS  REVIEW  ► PRESSURE UNITS (˝ H O / mmHg / KPa)  MAINTENANCE ►  ► CLOCK SET ►   ► FACTORY DEFAULTS ►  ► CLOCK (hours / minutes)  ► GLOBAL RESET  ► DATE (year / month / date)  ► RESET (SAVE PROGRAMS)  ► TIME FORMAT (12 hour / 24 hour)  ► T‐AMBIENT CAL             (Enter Ta (˚C) (Ta Sensor (˚C)  ► DATE FORMAT (mm/dd/yy / dd/mm/yy)  ► BAROMETRIC P CAL     (Enter PB (mmHg) (PB Sensor (mmHg)     ► PASSWORD (0)  ►Pressure      (Enter BP )     CONTROL MODE (CF / CPL /CPH)    RUN MODE (Manual / Timed / PROG #)  © 2011 Sensidyne, LP  Gilian GilAir® Plus – Personal Air Sampling Pump – Quick‐Start Guide ...
