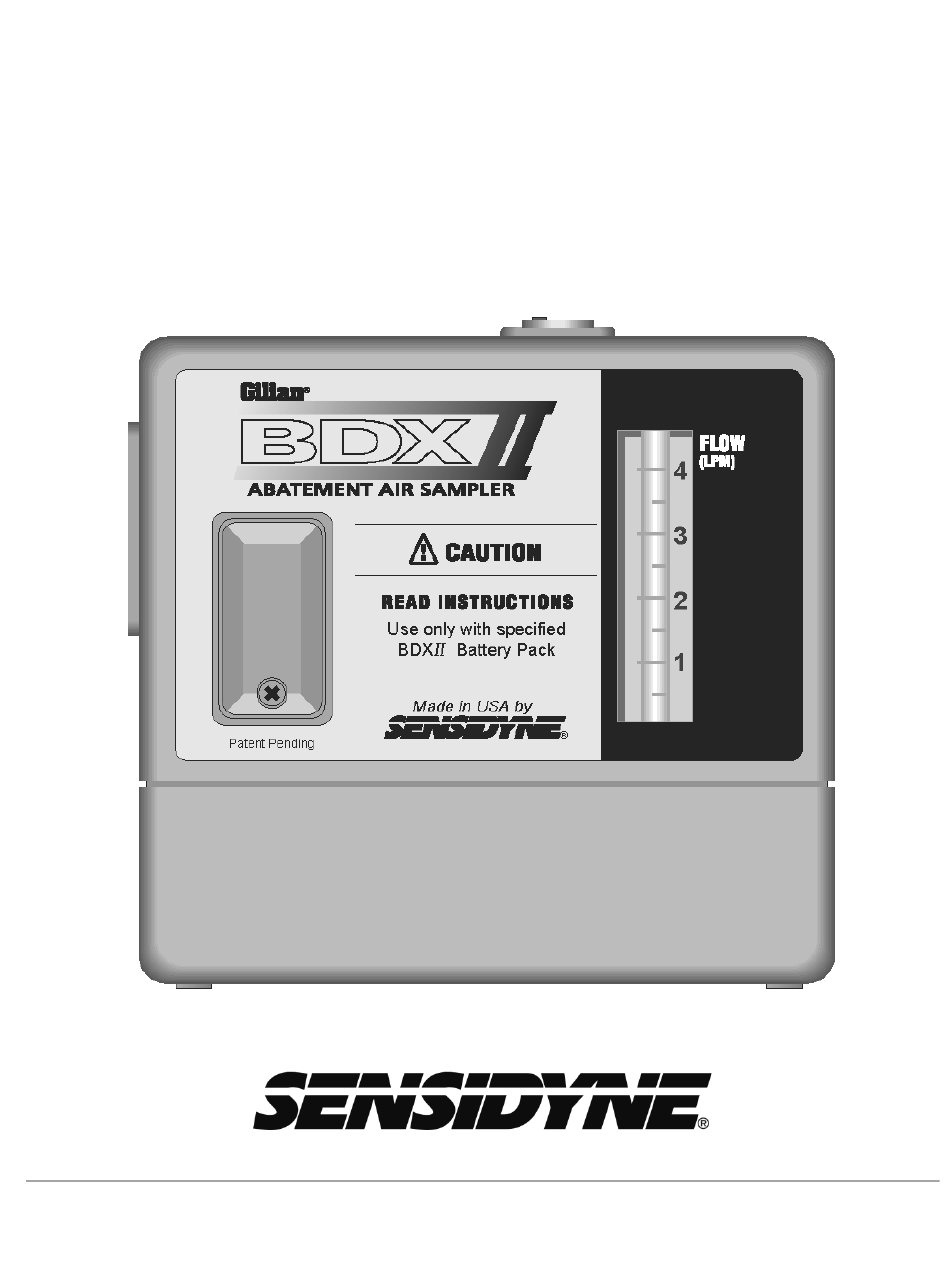

- Page 1 Gilian BDX-II Air Sampling Pump Operation Manual Circle N, Suite 100 • St. Petersburg, Florida 33716 USA 1000 112 (800) 451-9444 • (727) 530-3602 • (727) 539-0550 [FAX] • www.sensidyne.com REF 360-0136-01 (Rev E)
-
Page 3: Packing List
Gilian® BDXII ABATEMENT AIR SAMPLING PUMP PACKING LIST The items listed below are shipped with the Gilian BDXII Abatement Air Sampler: • BDXII Abatement Air Sampler • Tool Kit • Tubing • Operation and Service Manual ALWAYS check to make certain You have received all of the items listed above. -
Page 4: Notices
Sensidyne, LP. TRADEMARK NOTICE Sensidyne, the Sensidyne logo, Gilian and the Gilian logo are registered trademarks. These trademarks are protected through use and registration in the United States. The trademarks and service marks used in this document are the property of their respective companies and are used only for informational and explanatory purposes. -
Page 5: Table Of Contents
Gilian® BDXII ABATEMENT AIR SAMPLING PUMP TABLE OF CONTENTS PREFACE • Packing List ............................3 • Notices ..............................4 • WARNINGS ............................7 SECTION ONE: INTRODUCTION Overview ............................ 8 General Description ....................8 SECTION TWO: OPERATION Introduction .......................... 11 Calibration (Flow Adjust) ....................11 Operation .......................... - Page 6 Gilian® BDXII ABATEMENT AIR SAMPLING PUMP TABLE OF CONTENTS SECTION FOUR: APPENDICES • Appendix A: Parts List ....................... 18 • Appendix B: Specifications ....................... 19 • Appendix C: Troubleshooting Guide ..................20 • Appendix D: Returned Material Authorization • Returned Material Authorization ..................21 •...
-
Page 7: Warnings
Operation and Service Manual. Contact the Service Department to arrange for a Returned Material Authorization (RMA). Use ONLY genuine Sensidyne replacement parts when performing any maintenance procedures described in this manual. Failure to do so may seriously impair instrument performance. Repair or alteration of the product beyond... -
Page 8: Overview
Gilian® BDXII ABATEMENT AIR SAMPLING PUMP SECTION ONE Introduction OVERVIEW IMPORTANT You must read this manual in its entirety to ensure proper operation of your unit. This manual contains basic information for operating and maintaining the Gilian BDXII Abatement Air Sampler. The BDXII is capable of delivering up to 3.0 LPM of sample air for periods exceeding 8 hours, with a nominal head restriction of up to 20”... -
Page 9: Bdxii Abatement Air Sampler (Front View)

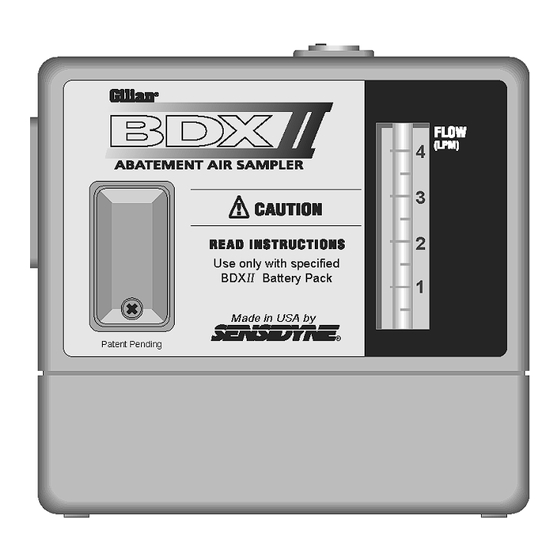

Gilian® BDXII ABATEMENT AIR SAMPLING PUMP Figure 1.1 BDXII Abatement Air Sampler (Front view) 360-0136-01 - (Rev E) -
Page 10: Bdxii Abatement Air Sampler (Side View)
Gilian® BDXII ABATEMENT AIR SAMPLING PUMP Figure 1.2 BDXII Abatement Air Sampler (Side view) 360-0136-01 - (Rev E) -
Page 11: Section Two: Operation
Gilian® BDXII ABATEMENT AIR SAMPLING PUMP SECTION TWO Operation 2.1 INTRODUCTION Before using the BDXII for sampling, the unit must be properly prepared. This includes charging and calibrating the unit for proper flow rate. When charging the unit make certain that the unit is fully charged. This provides the unit with enough charge to complete a full period of sampling. -
Page 12: Bdxii Pump Calibration (Flow Adjust)
Gilian® BDXII ABATEMENT AIR SAMPLING PUMP Figure 2.1 BDXII Pump Calibration (Flow Adjust) 360-0136-01 - (Rev E) -
Page 13: Operation
Gilian® BDXII ABATEMENT AIR SAMPLING PUMP 4) Move the On/Off switch to the On position. 5) Set the pump flow rate by turning the flow adjust screw (clockwise for increased flow and counterclockwise for decreased flow). 6) Use the built-in rotameter on the BDXII as a flow indicator only. Accurate flow adjustment settings must be made by using a Gilibrator-2, or equivalent flow calibration device, for calibration measurements. -
Page 14: General Maintenance
Gilian® BDXII ABATEMENT AIR SAMPLING PUMP 3.1 GENERAL MAINTENANCE The BDXII Abatement Air Sampling Pump is relatively maintenance free. Most maintenance involves periodic inspection of the unit, battery maintenance, and filter maintenance. General inspection involves checking the unit for blockage and pump capacity as follows: 1) Examine the unit for physical damage. -
Page 15: Battery Pack Removal
Gilian® BDXII ABATEMENT AIR SAMPLING PUMP Figure 3.1 Battery Pack Removal 360-0136-01 - (Rev E) -
Page 16: Battery Charging
Gilian® BDXII ABATEMENT AIR SAMPLING PUMP 3.2.1 Battery Charging • Battery Life Battery life is usually measured in charge/ discharge cycles. Gilian battery packs are capable of providing 300–500 charging cycles. Since this is very difficult to track over the life of the battery, Table 3.1 will help you to anticipate how long the battery should last. -
Page 17: Filter Maintenance
Gilian® BDXII ABATEMENT AIR SAMPLING PUMP 3.3 FILTER MAINTENANCE The BDXII internal filter should be changed whenever it becomes clogged or dirty. The condition of the internal filter is visible through the clear window on the filter assembly. To change the BDXII filter, refer to Figure 3.2 and follow the steps below. 1) Make certain the pump is turned off. -
Page 18: Appendix Aparts List
Gilian® BDXII ABATEMENT AIR SAMPLING PUMP APPENDIX A PARTS LIST Part No. Description 801863-7 Abatement Air Sampler (pump only) with Ni-MH Battery Pack ** 783-0008-04 Rechargeable Battery Pack (Ni-MH) ** 911-0601-US-R Single Unit Charger (120V @ 50/60 Hz), Output: 194 mA 911-0601-EU-R Single Unit Charger (230V @ 50/60 Hz), Output: 194 mA 811-9919-US Universal Multi-Station Charger (115V 50/60 Hz), Output: 180 mA 811-9919-EU Universal Multi-Station Charger (230 V 50/60 Hz), Output: 180 mA... -
Page 19: Appendix B: Specifications
Gilian® BDXII ABATEMENT AIR SAMPLING PUMP APPENDIX B SPECIFICATIONS General Specifications Controls ..........Power Switch, Flow Control Flow Indicator .........Built-in rotameter, range 500–4000 cc/min, with 500 cc/div @ 20% Full Scale accuracy. Additional Features ......See-through external filter housing, with filter monitoring lens; built-in belt clip. Dimensions ........3.6”... -
Page 20: Appendix C: Troubleshooting Guide
Gilian® BDXII ABATEMENT AIR SAMPLING PUMP APPENDIX C TROUBLESHOOTING GUIDE Cause Remedy • Pump is running but no flow (or reduced flow). Internal filter may be clogged Remove obstruction or replace filter. • Unable to adjust flow rate to desired setting. Sampling filter cassette is clogged. -
Page 21: Returned Material Authorization
APPENDIX D RETURN MATERIAL AUTHORIZATION Sensidyne maintains an instrument service facility at the factory to provide its customers with both warranty and non-warranty repair service. Sensidyne assumes no liability for service performed by personnel other than Sensidyne personnel. To facilitate the repair... -
Page 22: Service Options
Gilian® BDXII ABATEMENT AIR SAMPLING PUMP SERVICE OPTIONS The Sensidyne Service Department offers you a variety of service options which will help increase your user confidence while minimizing costly interruptions and maintenance costs. These options include initial training, on-site technical assistance, and full factory repairs. - Page 23 Notes...
- Page 24 Sensidyne, LP 1000 112 Circle N, Suite 100 St. Petersburg, Florida 33716 800-451-9444 • 727-530-3602 • 727-539-0550 [fax] www.Sensidyne.com • info@sensidyne.com Authorized EU Representative Schauenburg Electronic Technologies GmbH Weseler Str. 35 · 45478 Mülheim-Ruhr Germany +49 (0) 208 9 99 10 • +49 (0) 208 5 41 10 [fax]...
