Sensidyne Gilian 5000 Basic Manual

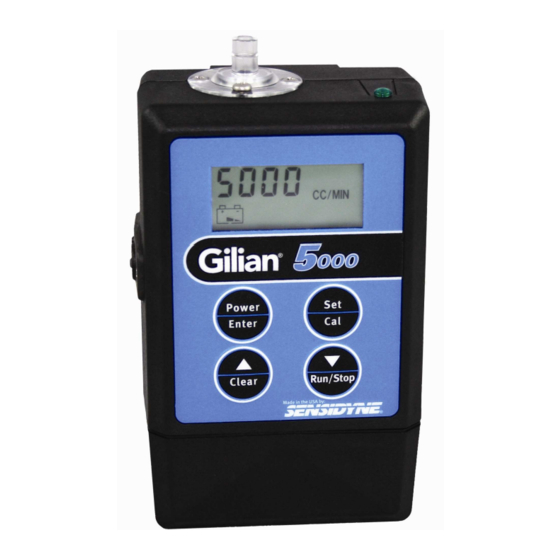

Gilian 5000
This manual covers specifications, warnings and basic operation. For compete information,
including detailed operation, options, and other details see the Operation Manual (PN 360-
0103-01). The warnings, safe operation, installation and maintenance instructions in that
manual should be adhered to at all times.
Cautions:
Pump is intrinsically safe for use in areas designated in the attached specifications listed on
page 4. Do not replace or charge batteries in hazardous area. Charge batteries completely
before each use. No special discharge or battery conditioning required. Use only specified
charger, and charge only within specified temperature range.
Operation Guide
Keypad Operation
Power/Enter: Press momentarily to turn on.
While on, press for five seconds to turn off.
Also used to confirm entries and adjustments.
Set/Cal: Used to select flow rate set (FLO) or
Calibration (CAL)
▲/Clear: Used in set modes to adjust
displayed value upward. Also used to reset
accumulated run data before initiating new
sample when held down for 15 seconds.
▼/Run/Stop: Used in set modes to adjust
displayed value downward. Also used to start
and stop sampling when held down for five
seconds.
Turning Pump power ON and OFF
On: Press Power/Enter key momentarily to
turn power on. Display turns on all
segments and indicators briefly, shows
the software revision, shows the number
of hours since last calibration, then
enters the Ready mode.
Off: While the pump is in Ready mode (not
running), press and hold the
Power/Enter key for several seconds, until the display shows "OFF". After a few
seconds, the pump will turn power off.
