Configuration
September 2019
Postrequisites
To remove the sensor, compress the two latching tabs and pull downward until the
module is released from the transmitter housing.
2.4
Install the power module
The transmitter is powered by the Emerson 701 SmartPower
the module to the transmitter, do the following:
Procedure
1. Remove the rear housing cover.
2. Connect the Emerson 701 SmartPower Module - Black.
14
Table 2-1: Maximum Warm up Periods
Gas type
Oxygen (O
)
2
Carbon monoxide (CO)

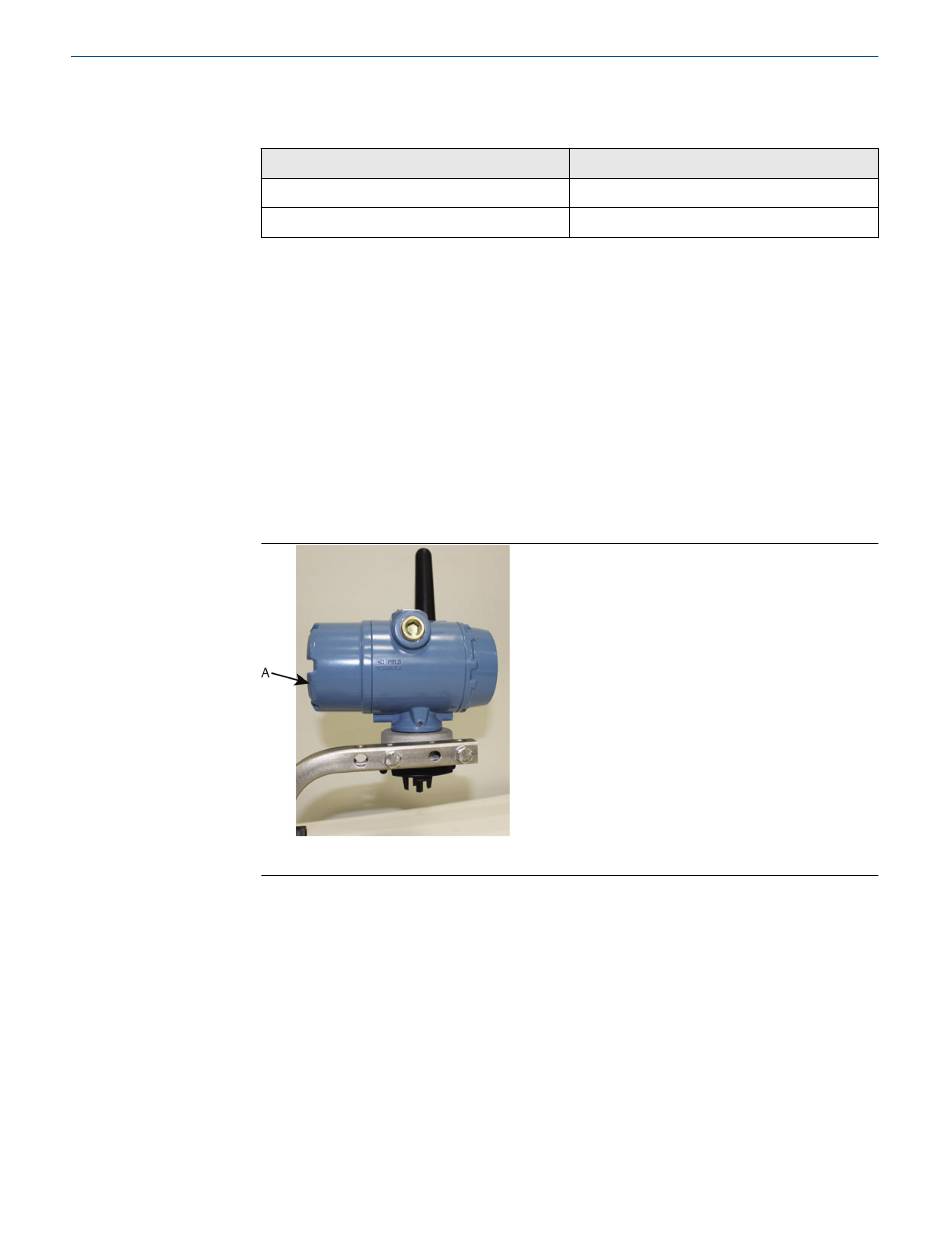

A. Rear housing cover
Reference Manual
(continued)
Maximum warm up period
Seven minutes
One minute
™
Module - Black. To connect
