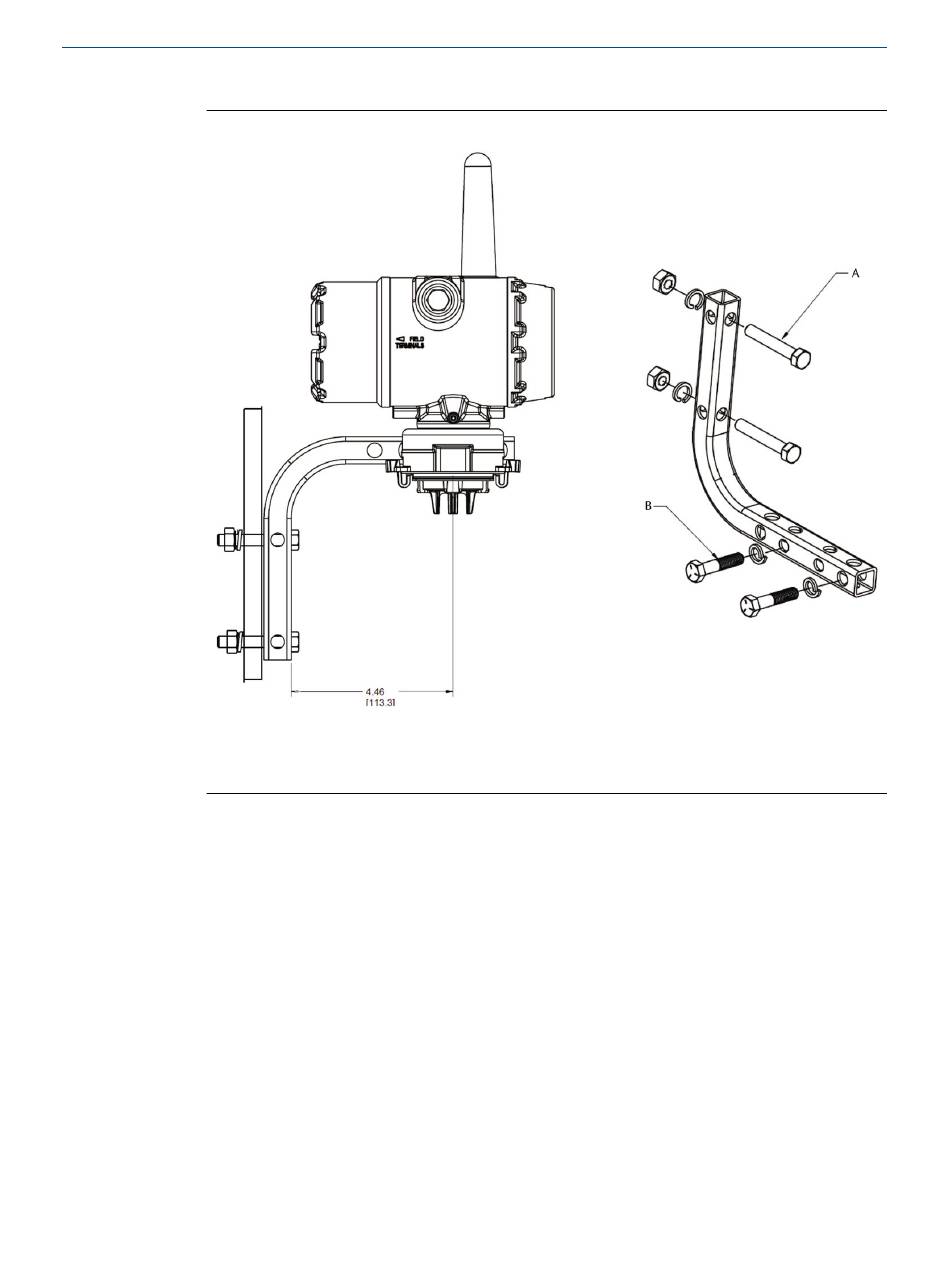

Figure 3-3: Pipe Mounting
Dimensions are in inches [millimeters].
A. 2-in. bolt for pipe mounting (clamp shown)
B. 5/16-18 x 1¼-in. bolts for transmitter mounting
3.6.2 Panel mount
Required equipment
• Mounting kit (part number 03151-9270-0004)
—
—
• A 5/16-in. combination wrench or adjustable wrench
• A ¼-in. combination wrench or adjustable wrench
• Two 5/16-18 bolts with nuts and washers (not included)
Rosemount 928
One B4 mounting bracket
Two ¼-in. x 1¼-in. bolts
Install
