PART NUMBER:
0000 - 8E - G01

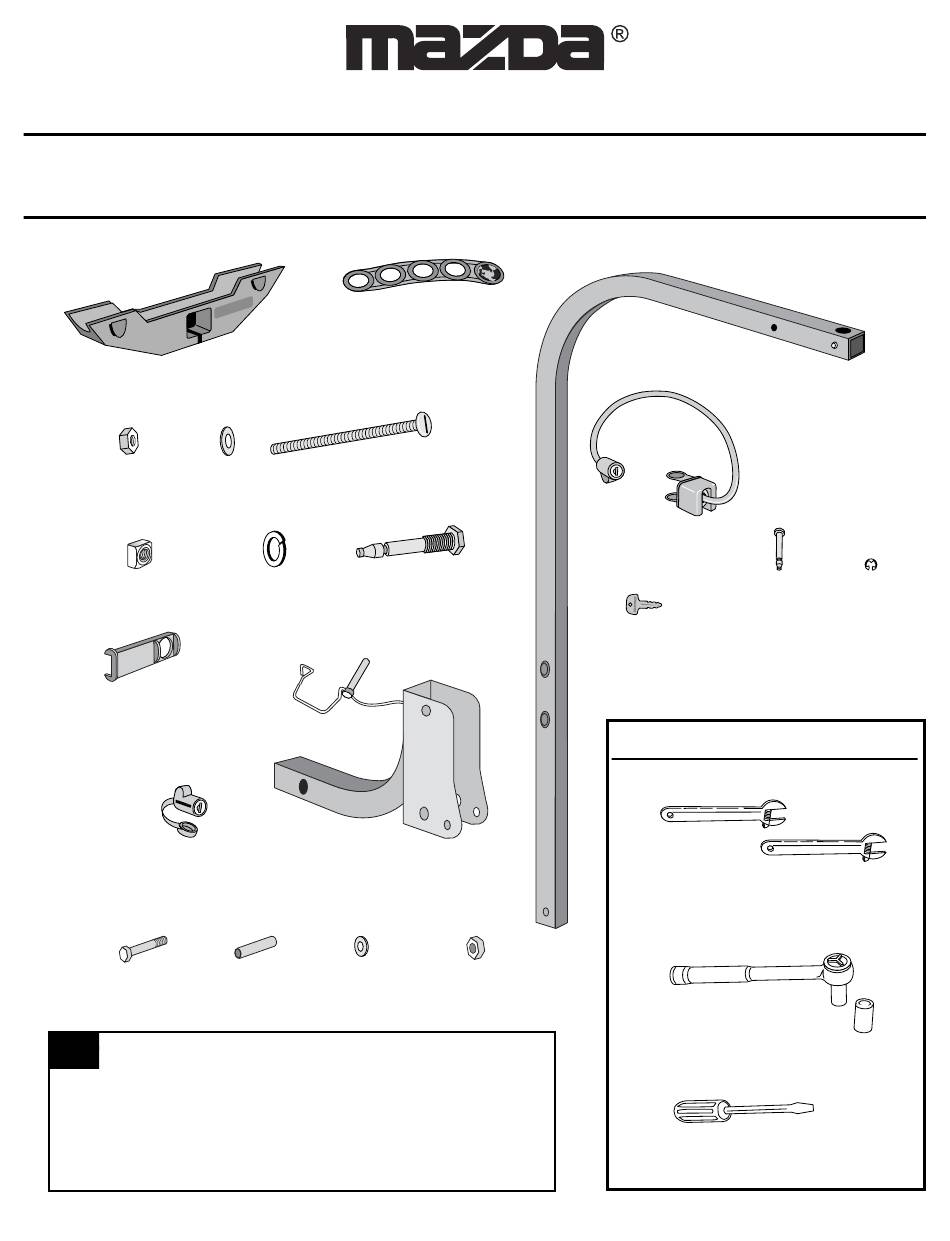

PACKAGE CONTENTS
CRADLE (QTY.2)
NUT (QTY.2)
WASHER (QTY.2)
HITCH NUT (QTY.1)
LOCK WASHER (QTY.1)
HITCH NUT HOLDER (QTY.1)
HITCH LOCK (QTY.1)
BOLT (QTY.2)
CLEAR SLEEVE (QTY.1)
0
BEFORE INSTALLATION
READ THESE WARNINGS:
• HITCH LOAD IS LIMITED TO THREE BIKES WITH THE
ADDITION OF ONE CRADLE.
• OFF-ROAD DRIVING IS NOT RECOMMENDED AND COULD
RESULT IN DAMAGE TO YOUR VEHICLE OR YOUR BIKES.
1032601C-1/4
GENUINE ACCESSORIES
INSTALLATION INTRUCTIONS
2 BIKE CARRIER, HITCH
WORLD STRAP (QTY.4)
SCREW (QTY.2)
HITCH BOLT (QTY.1)
CARRIER BASE (QTY.1)
WASHER (QTY.2)
CARRIER MAST
(QTY.1)
CABLE LOCK
(QTY.1)
KEY (QTY.2)
NUT (QTY.2)
APPLICABLE MODELS:
1996>MPV
2001>TRIBUTE
LOCK POST
(QTY.1)
TOOLS REQUIRED
2 ADJUSTABLE-END WRENCHES
3/4 INCH SOCKET WRENCH
FLATHEAD SCREWDRIVER
PART #1032601 REV.C
"C" CLIP
(QTY.1)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mazda 0000-8E-G01
Summary of Contents for Mazda 0000-8E-G01
- Page 1 GENUINE ACCESSORIES INSTALLATION INTRUCTIONS PART NUMBER: APPLICABLE MODELS: 2 BIKE CARRIER, HITCH 1996>MPV 0000 - 8E - G01 2001>TRIBUTE PACKAGE CONTENTS WORLD STRAP (QTY.4) CARRIER MAST (QTY.1) CRADLE (QTY.2) NUT (QTY.2) WASHER (QTY.2) SCREW (QTY.2) CABLE LOCK (QTY.1) LOCK POST “C”...
- Page 2 PUSH BASE ONTO ALIGN HOLES IN MAST AND BASE. CARRIER MAST. AT CENTER HOLE NEAR END: INSERT BOLT AND WASHER. ATTACH ANOTHER WASHER AND NUT TO BOLT. TIGHTEN WITH INSERT SECOND BOLT ADJUSTABLE INTO ADJACENT HOLE. WRENCHES. POSITION CLEAR SLEEVE SO BOLT CAN PASS THROUGH.
- Page 3 CRADLES HAVE A FRONT AND BACK. THE SMOOTH DEPRESSION ON RIGHT FRONT SIDE MUST FACE TOWARD YOU. YOUR PRODUCT INCLUDES THE CRADLE WITH YAKIMA A STOP-RIVET. FLEX SHOULD GO ON LAST, WITH CRADLES AND PUSH OVER “YAKIMA” FACING OUT. STOP-RIVET ON MAST. SECURE CRADLES TO MAST.
- Page 4 INSTALL LOCK PIN AND “E” CLIP. MANEUVER THE PIN INTO THE HOLE, BYPASSING THE INTERNAL CABLE. HOOK STRAPS OVER LOAD YOUR BIKE. BIKE’S TUBE. NEST BIKE’S TOP TUBE INTO FIRST CRADLE. BE SURE STRAPS ARE SECURED ONTO CRADLE HOOKS. • LOAD BIKES IN OPPOSITE DIRECTIONS.
