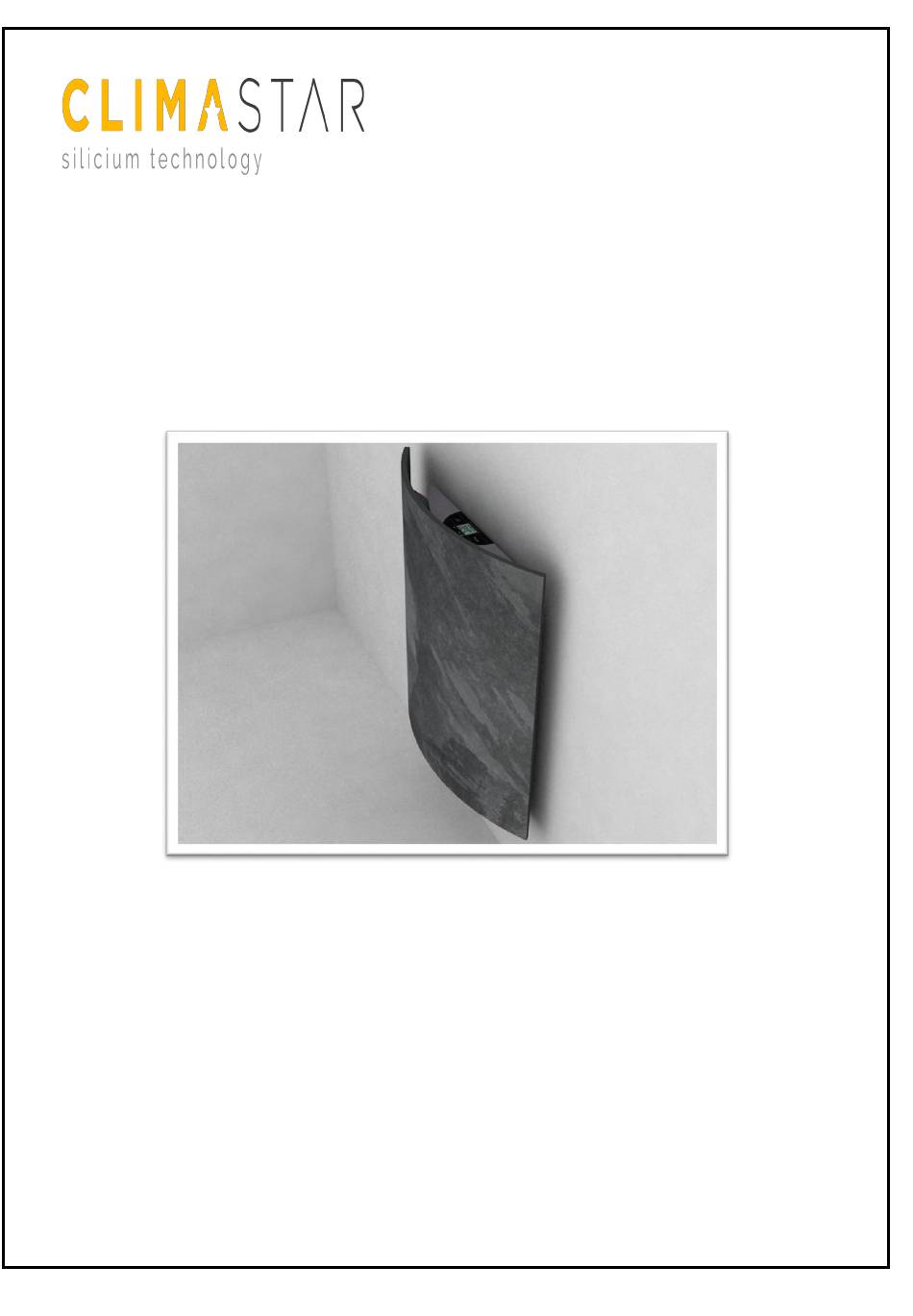

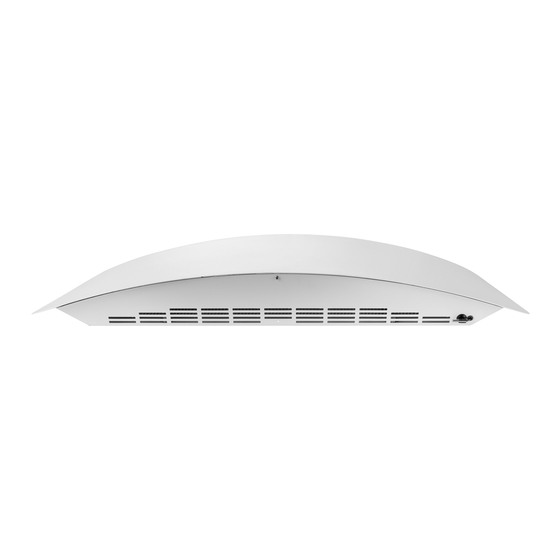

USER'S GUIDE CURVE WIFI In accordance with Commission Regulation (EU) 2015/1188 of 28 April 2015 implementing Directive 2009/125 / EC of the European Parliament and of the Council, we inform you that “This product is not suitable for primary” heating purposes.
INDEX 1- INTRODUCTION ................... 4 2- INSTALLATION INSTRUCTIONS ............. 5 3- STARTING AND SETTING UP ..............6 3.1.- SETTING UP THE WIFI CENTRAL UNIT ....................6 3.2.- SCREEN DISPLAY ............................8 3.3.- HOW TO LINK HEATERS TO THE WIFI CENTRAL UNIT ..............8 3.4.-SETTING UP THE HEATER ..........................
1- INTRODUCTION - Please, read carefully this user’s guide before installing your device. - Make sure the supply voltage corresponds with that on the nameplate (located on the left side of the device). - The Schuko plug must be connected to a compatible Schuko socket.
must not be carried out by children without prior supervision. - WARNING: some parts of this device may overheat and cause burns. Pay special attention when children and vulnerable people are around. WARNING: To avoid possible overheating, do not cover the device 2- INSTALLATION INSTRUCTIONS - The device includes a mounting kit with the required bolting: plugs and 6mm screws, and the wall support.
- Once decided the location to install the heater, remove the packaging and extract the heater and its mounting kit. - Fix the heater as shown on the figure: Square Heater Vertical Heater 1480 mm 850 mm 630 mm 250 mm 3- STARTING AND SETTING UP 3.1.- SETTING UP THE WIFI CENTRAL UNIT In order to manage the heaters using the web application or a smartphone...
Page 7
3- Check the lights. Orange and green lights alternate: orange light keeps fixed for 5 seconds, then green light flashes. If not, see section 6 FAQ. 4- Register on the web app: avantwifi.climastar.es to connect via your computer or download the CLIMASTAR WIFI App from Google Playstore or Apple AppStore.
3.2.- SCREEN DISPLAY Schedule: temperature set per hour Link symbol, connection with Day of the week the Wi-Fi central unit Desired temperature Heating unit display Operation mode display Increase Decrease Set and Mode setting programme (Auto/Man/Off) To turn on the device, connect the power cable to a mains power outlet and click the switch on the right.
Once linked, an antenna with the word "Link" will appear right-side up. The heater is ready to be controlled by the Apps. 3.4.-SETTING UP THE HEATER The user can set up the heater through the Web App or the mobile Apps in a very easy and intuitive way.
3.4.2 Manual mode - Select the manual mode. - Set up the desired temperature by clicking the +/-. 3.4.3 Automatic mode - Select the automatic mode. - Temperature settings: In Automatic mode, the set temperatures will automatically change as per the user’s settings.
Page 11
Select the temperature to set: comfort, economy or frost. You can modify the temperature selected (e.g. comfort) Do not forget to confirm and validate: Prog (this can be done for any of the three temperature options) - Time schedule modification The radiator can be programmed hour per hour with any of the 3 available temperatures: comfort, eco and frost protection.
Page 12
IMPORTANT: schedule starts the day 1 of the week at midnight. Day of the week Bar showing set temperature /time Time Temperature Start to programme Select the temperature at midnight, 00.00 Select the time Select the temperature and the following hour And so on until you have programmed all hours and all days of the week.
Page 13
If the device is already connected to the WiFi gateway and internet, the time is automatically set. If not, proceed as follows to set real time: Day of the week Minutes Hour Change the day of the week Change the time Change the minutes Exit...
- Temporary manual mode operation Being on automatic mode, the user can increase or decrease the temperature; said modification will be set up until next change in program. Manually modify the temperature in the automatic mode Odifica 3.5 KEY LOCK FUNCTION Lock word is displayed on the screen Unlock 3.6 RESET TO FACTORY SETTINGS...
4- CLEANING AND MAINTENANCE - Keep the room clean to avoid possible spots on the walls due to convection. - At the beginning of the year's heating season, vacuum any dust that has accumulated in the inner heating element while the radiator has been off for long periods during warmer weather.
6- FAQ.s PROBLEM PROBABLE CAUSE SOLUTION The heater does not The heater is in energy saving mode Increase the temperature in the heater if you need more room temperature. warm up Incorrect setting of the set temperature Check the set temperature on the display to verify it is the desired temperature. The room Improper sizing, the heater is too small for The power rating of the heater is not adequate for the place in which it has been...
7.- WARRANTY TERMS AND CONDITIONS CLIMASTAR guarantees that in the moment of its purchase the product is free of any defect in the materials and in the workmanship (limited guarantee). CLIMASTAR offers a commercial and voluntary guarantee; conditions included are similar to those of the legal guarantee, being CLIMASTAR responsible for the non- conformities arisen in the terms and conditions mentioned below.
