Maximum Ac Fuse Protection - Fronius Symo Advanced Series Installation Instructions Manual

Maximum AC Power circuit breaker
Fuse Protection
Inverter
Fronius Symo Advanced 10.0-3 208–240
Fronius Symo Advanced 12.0-3 208–240
Fronius Symo Advanced 15.0-3 480
Fronius Symo Advanced 20.0-3 480
Fronius Symo Advanced 22.7-3 480
Fronius Symo Advanced 24.0-3 480
RCCB
National Standards
26
AC ~
max. 80 A
≥ 100 mA
I
ΔN
?
§
NOTE! A residual current circuit breaker for the AC connecting cable may be re-
quired depending on local regulations, the grid operator, and other conditions. A
type A residual current circuit breaker with a trip current of at least 100 mA is gen-
erally sufficient in this case. However, false alarms can be triggered for the resid-
ual current circuit breaker type A in individual cases and depending on local
conditions. For this reason, Fronius recommends that you use a residual current
circuit breaker suitable for frequency converters.

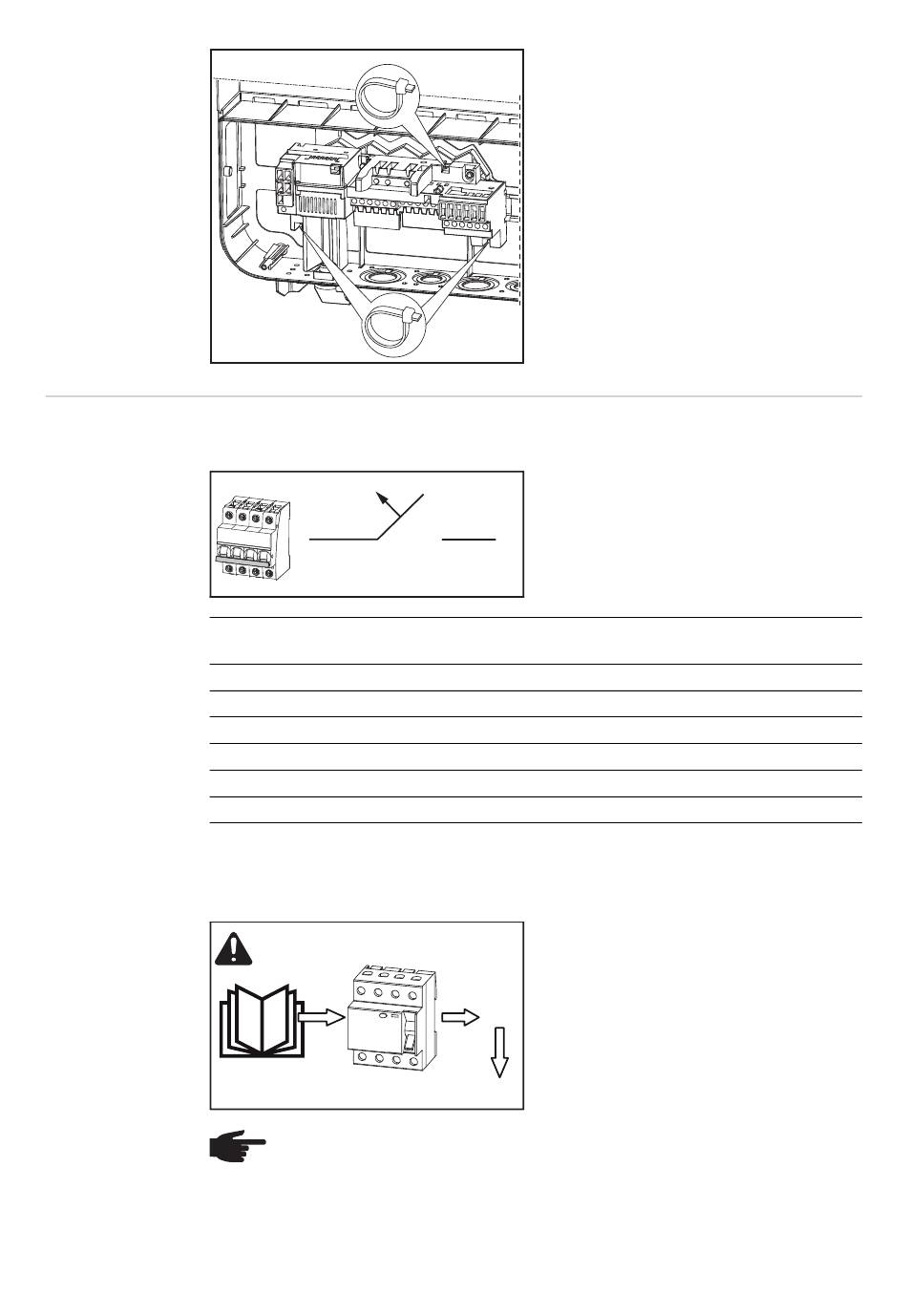

If excessively long AC or DC cables are laid
in loops in the connection area, fix the cab-
les to the designated eyelets at the top and
bottom of the connection block using cable
ties.
Phases
3+N
3+N
3+N
3+N
3+N
3+N
RCD
YES
Type A
Maximum
AC power
fuse protection
10,000 W C 80 A
12,000 W C 80 A
15,000 W C 80 A
20,000 W C 80 A
22,700 W C 80 A
24,000 W C 80 A
