Seal Conduits - Fronius Symo Advanced Series Installation Instructions Manual

Seal Conduits

1
1
Outside
DC=
Conduit
Air circulation
Condensation
AC~
Conduit
Outside
2
DC=
Conduit
1
Permanently elastic sealant
AC~
4
Conduit
NOTE! Condensation in the con-
duits can damage the inverter or
the photovoltaic system compo-
nents.
Inside

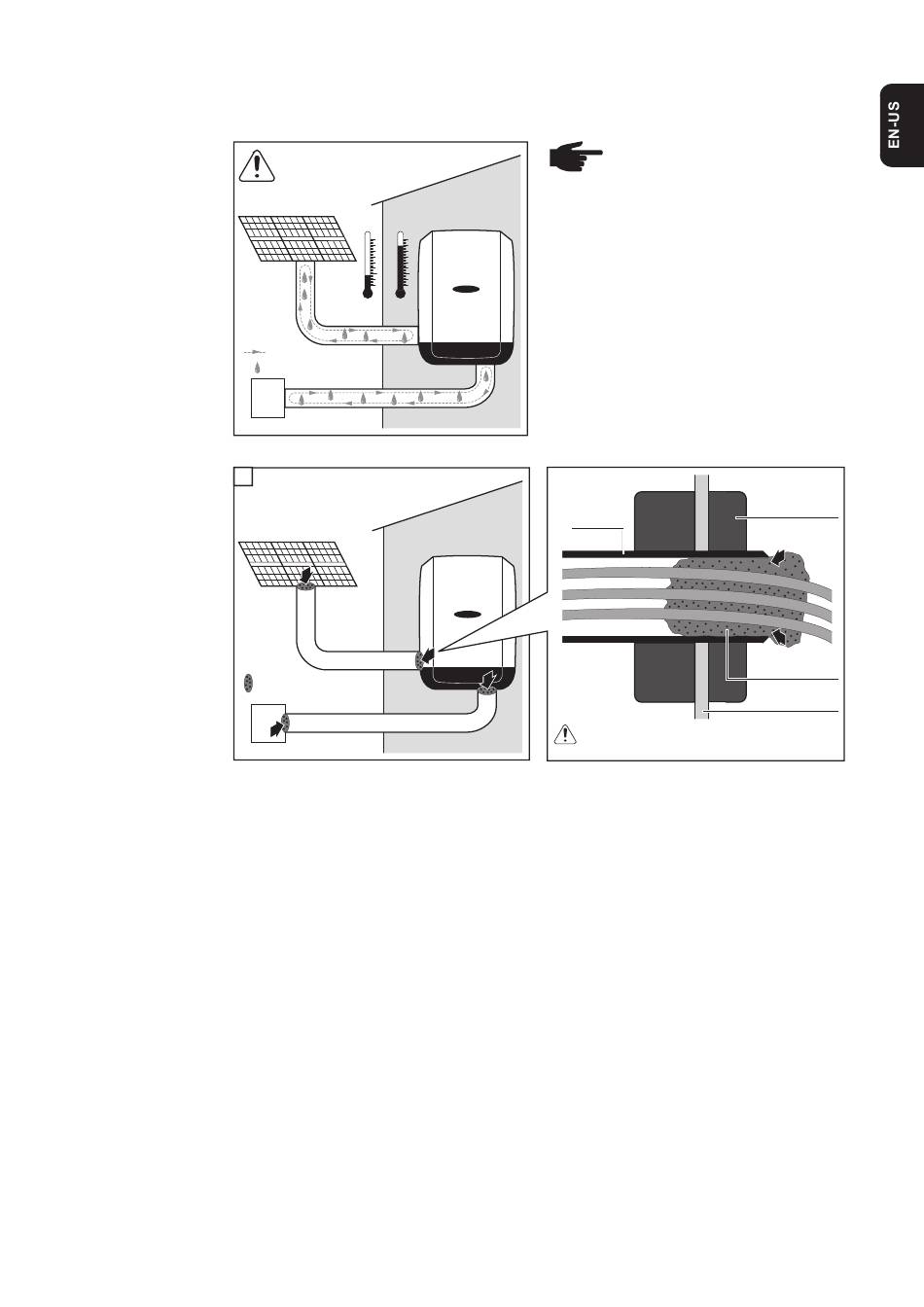

To avoid undesirable air circula-
tion and condensation in the con-
duits:
-
-
-
Conduit
Inside
3
Seal all used conduits!
Seal every incoming and every outgoing conduit!
Seal both conduit ends!
seal all conduits in use with a
permanently elastic sealant
seal every incoming and out-
going conduit
seal both conduit ends.
Conduit fitting
1
1
Permanently elastic
sealant
Inverter housing
