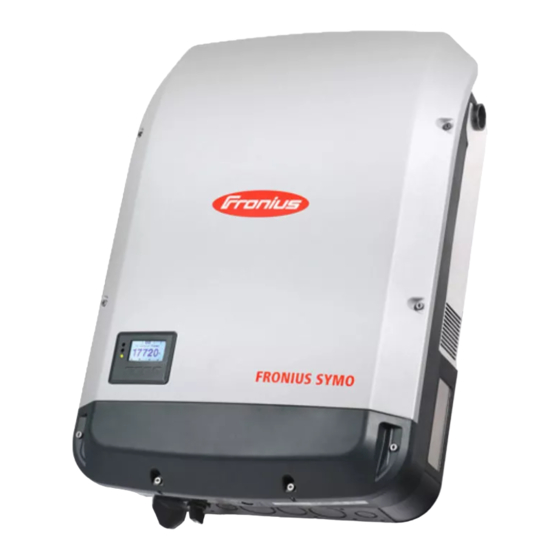

Fronius Symo 10.0-3 208-240 Installation Manual

Inverter for grid-connected photovoltaic systems
Hide thumbs Also See for Symo 10.0-3 208-240:

Advertisement

Available languages

Available languages

/ Perfect Charging / Perfect Welding /
FIND YOUR
OPERATING MANUALS
www.fronius-usa.com/inverter-manuals
Fronius Symo - Installation
10.0-3 208-240
12.0-3 208-240
10.0-3 480
12.5-3 480
15.0-3 480
15.0-3 208
17.5-3 480
20.0-3 480
22.7-3 480
24.0-3 480
42,0410,2125
Solar Energy
017-24082017
Installation Instruction
Inverter for grid-connected photo-
voltaic systems
