Suitable Grids

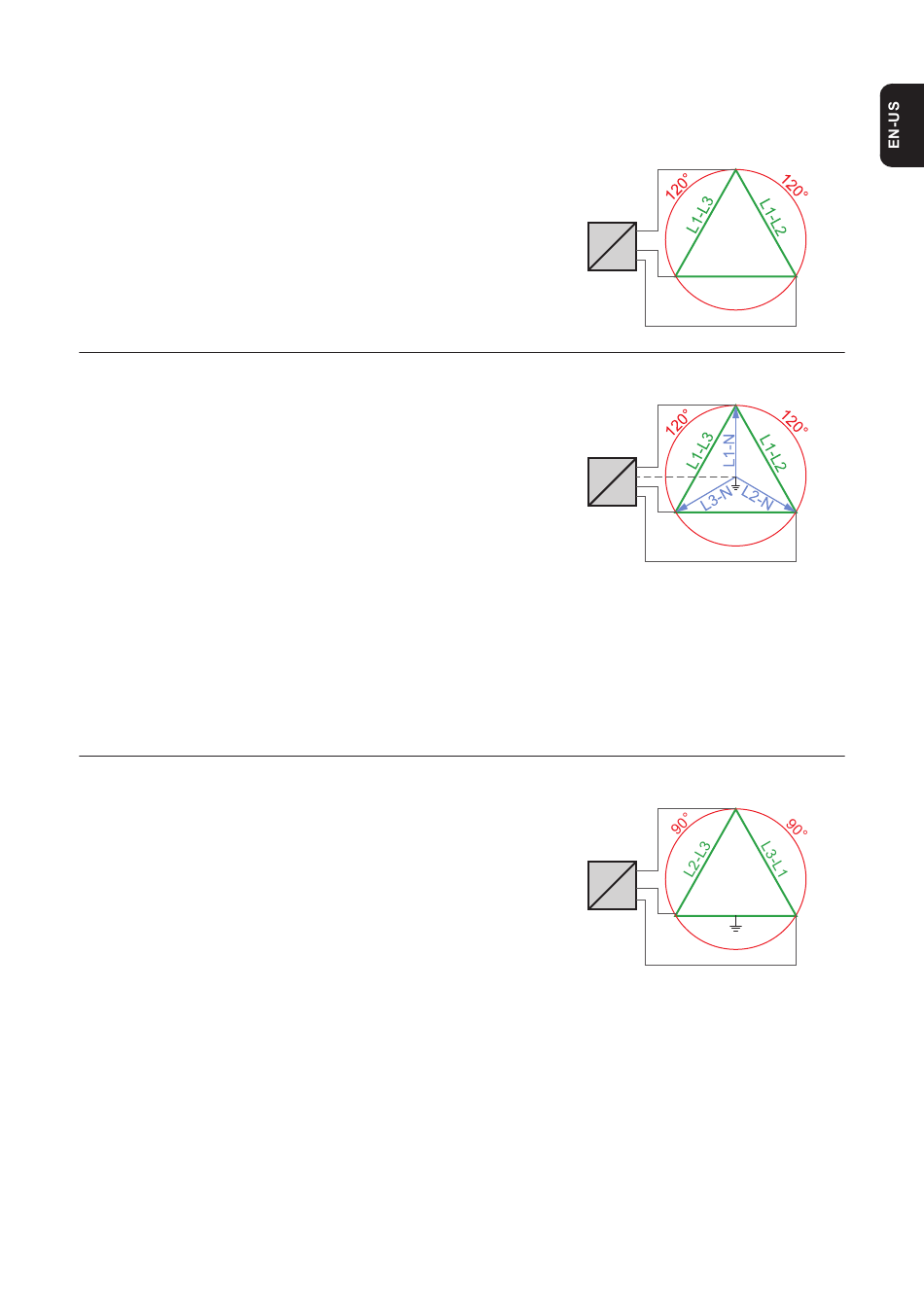

Delta No neutral conductor
Setup: Nominal voltage:
208 208 V
240 240 V
220 220 V
BR 220 V
50 Hz 50 Hz 208–240 V
MG 3P Microgrid 208 V
MG 1P Microgrid 240 V
WYE Neutral conductor required
Setup: Nominal voltage:
208 N 208 V
220 N 220 V
BR N 220 V
50 HN 50 Hz 208–240 V
HI2 208 V
480 N 480 V
440 N 440 V
50 HN 50 Hz 415 V
MG 3N Microgrid 208 V
MG 2N Microgrid 50 Hz 208–240 V
MG 5N Microgrid 50 Hz 480 V
MG 6 Microgrid 480 V
CAL3 480 V
HI3 480 V
Hi-Leg Delta Neutral conductor required
Setup: Nominal voltage:
240 N 240 V
50 HN 50 Hz 208–240 V
MG 1N Microgrid 240 V
MG 2N Microgrid 50 Hz 208–240 V
HI1 208 V
Appropriate inverter:
Symo Advanced
10.0-3 208–240 / 12.0-3
208–240
Appropriate inverter:
Symo Advanced
10.0-3 208–240 / 12.0-3
208–240
Symo Advanced
15.0-3 480 / 20.0-3 480 /
22.7-3 480 / 24.0-3 480
Appropriate inverter:
Symo Advanced
10.0-3 208–240 / 12.0-3
208–240
L1
=
~
L3 L2-L3
120°
L1
=
N
~
L3 L2-L3
120°
L3
=
~
L2 L2-N L1-N
N
180°
L2
L2
L1
