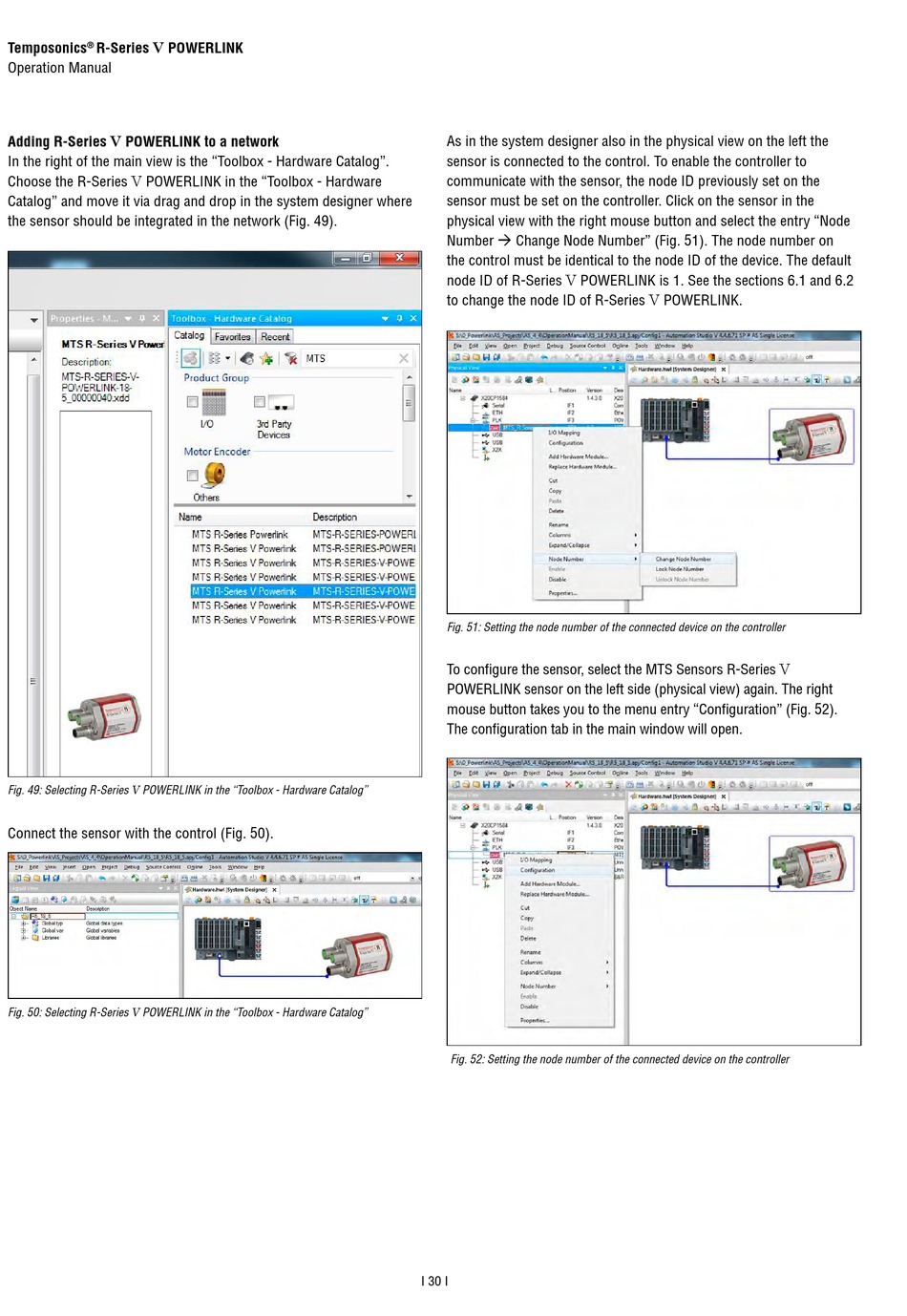

R-Series V POWERLINK
Temposonics
®
Operation Manual
Adding R-Series V POWERLINK to a network
In the right of the main view is the "Toolbox - Hardware Catalog".
Choose the R-Series V POWERLINK in the "Toolbox - Hardware
Catalog" and move it via drag and drop in the system designer where
the sensor should be integrated in the network (Fig. 49).
Fig. 49: Selecting R-Series V POWERLINK in the "Toolbox - Hardware Catalog"
Connect the sensor with the control (Fig. 50).
Fig. 50: Selecting R-Series V POWERLINK in the "Toolbox - Hardware Catalog"
As in the system designer also in the physical view on the left the
sensor is connected to the control. To enable the controller to
communicate with the sensor, the node ID previously set on the
sensor must be set on the controller. Click on the sensor in the
physical view with the right mouse button and select the entry "Node
Number  Change Node Number" (Fig. 51). The node number on
the control must be identical to the node ID of the device. The default
node ID of R-Series V POWERLINK is 1. See the sections 6.1 and 6.2
to change the node ID of R-Series V POWERLINK.
Fig. 51: Setting the node number of the connected device on the controller
To configure the sensor, select the MTS Sensors R-Series V
POWERLINK sensor on the left side (physical view) again. The right
mouse button takes you to the menu entry "Configuration" (Fig. 52).
The configuration tab in the main window will open.
Fig. 52: Setting the node number of the connected device on the controller
I 30 I
