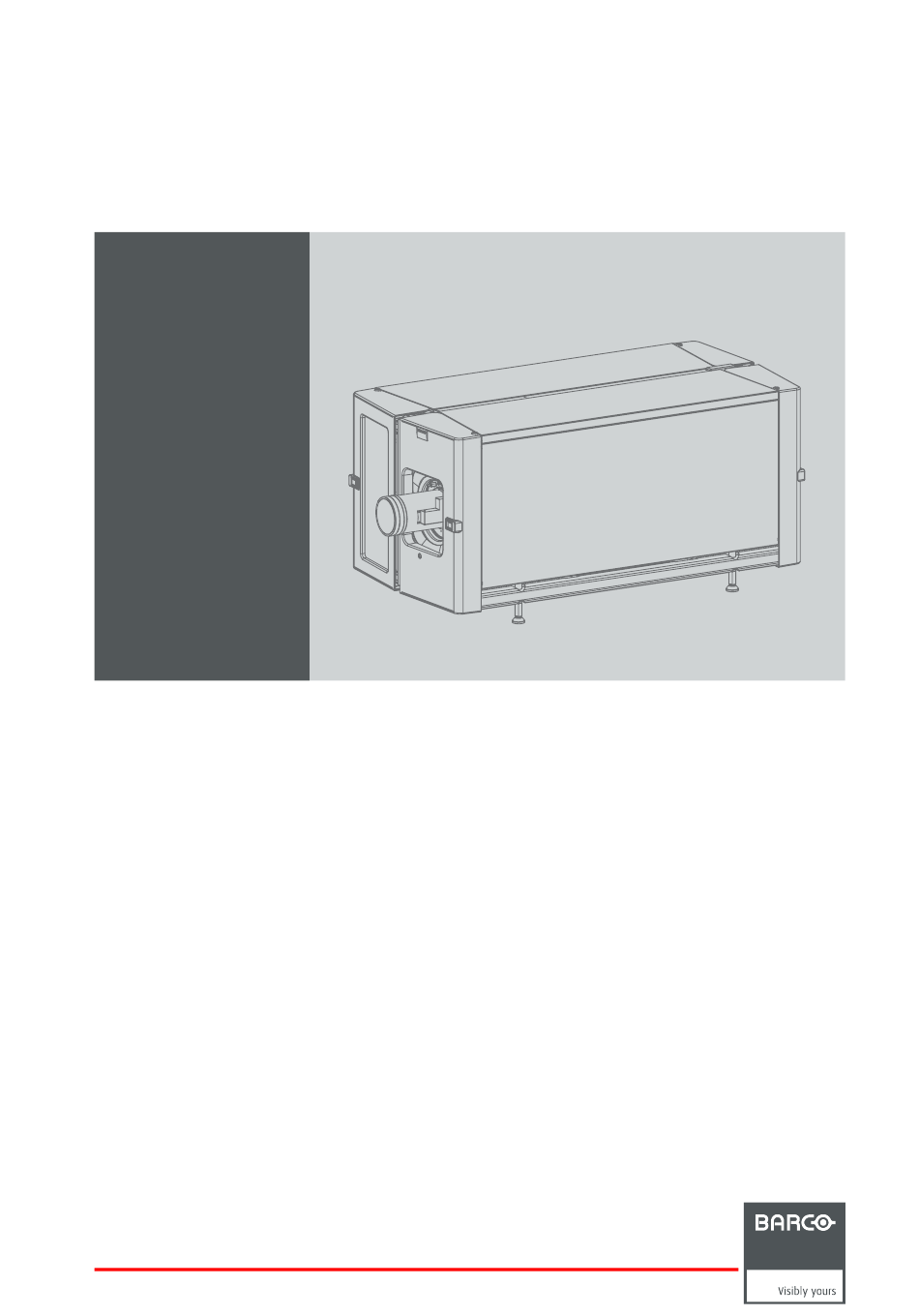

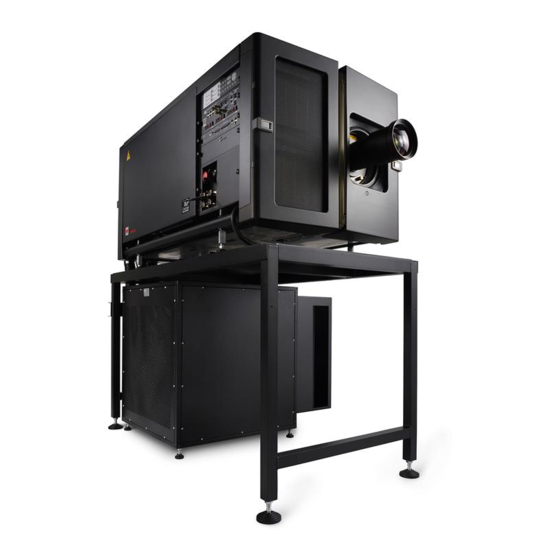

  • Page 1 Thor User manual R5906787/02 26/01/2018...
  • Page 2 Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium Phone: +32 56.36.82.11 Fax: +32 56.36.883.86 Support: www.barco.com/en/support Visit us at the web: www.barco.com Printed in Belgium...
  • Page 3 The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the date of commissioning, at latest 30 days after the transfer of risks. In the event of justified notice of complaint, Barco can repair the fault or provide a replacement at its own discretion within an appropriate period.
  • Page 4 GNU-GPL code If you would like a copy of the GPL source code contained in this product shipped to you on CD, please contact Barco. The cost of preparing and mailing a CD will be charged.

  • Page 5: Table Of Contents

    Index........................71 R5906787 THOR 26/01/2018...
  • Page 6 Table of contents R5906787 THOR 26/01/2018...

  • Page 7: Welcome

    Congratulations May we congratulate you on your purchase of a Barco Thor! It is our sincere wish that this digital projector meets up to your every expectation and that you thereby take a little time to page through this important manual. Familiarizing yourself with it’s features, important safety instructions and necessary maintenance actions, will ensure you enjoy many years of reliable, trouble-free high quality performance.
  • Page 8 1. Welcome R5906787 THOR 26/01/2018...

  • Page 9: Safety Information

    Read this chapter attentively. It contains important information to prevent personal injury while installing and using your Thor. Fur- thermore, it includes several cautions to prevent damage to your Thor. Ensure that you understand and follow all safety guidelines, safety instructions and warnings mentioned in this chapter before installing and using the Thor. After this chapter, additional “warn- ings”...

  • Page 10: Safety Training To Be Provided By The Installer

    Users definition The Thor is intended for persons who have been instructed and trained by a skilled person (installer or service personnel) to iden- tify energy sources that may cause injury and to take precautions to avoid unintentional contact with or exposure to those energy sources.

  • Page 11: Important Safety Instructions

    fire extinguishers. Never use water on an electrical fire. Always have service performed on this projector by authorized Barco service personnel. Always insist on genuine Barco replacement parts. Never use non-Barco replacement parts as they may degrade the safety of this projector.
  • Page 12 If the product exhibits a distinct change in performance, indicating a need for service. • Replacement parts: When replacement parts are required, be sure the service technician has used original Barco replacement parts or authorized replacement parts which have the same characteristics as the Barco original part. Unauthorized substitu- tions may result in degraded performance and reliability, fire, electric shock or other hazards.

  • Page 13: Product Safety Labels

    NE PAS REGARDER LE FAISCEAU EVITER TOUTE EXPOSITION DIRECTE DES YEUX AU FAISCEAU RG3 IEC EN 62471-5:2015 CLASS 1 IEC EN 60825-1:2014 DISTANCE DE SECURITE : CONSULTER LE MANUEL DE SECURITE Beam stop. Arrêt de faisceau. 光束衰减器 R5906787 THOR 26/01/2018...
  • Page 14 ATTENTION : Eteindre et déconnecter le câble dans la prise UPS pour la coupure de toute l’alimentation de l’appareil UPS电源输入插座：200-240V 最大电流 6A 50-60Hz UPS 输出插座：仅用于连接 UPS电源输入插座 警 告 断开放映机主电源端的 电源并从UPS电源接入 插 座上拔下电源线， 切断放映机的所有电源. R5906787 THOR 26/01/2018...

  • Page 15: High Brightness Precautions: Hazard Distance (Hd)

    (RZ) in the theater must be established. This can be done by using physical barrier, like a red rope as illustrated in image 2-2. The restricted area sticker can be replaced by a sticker with only the symbol. R5906787 THOR 26/01/2018...

  • Page 16: Hd For Fully Enclosed Projection Systems

    • This product can only be installed by Barco or sold or leased only to valid laser light show variance holders. In other words our installers are required to have an approved laser light show variance. Such installers may currently hold a valid variance for production of Class IIIb and IV laser light shows and/or for incorporation of the RG3 LIPs into their shows.
  • Page 17 The light emitted from the screen within the observation shall never exceed the RG2 exposure limit, determined at 10 cm. The can be neglected if the measured light at the screen surface is below 5000 cd/m² or 15000 LUX. diffuse R5906787 THOR 26/01/2018...

  • Page 18: Hd In Function Of Modifying Optics

    Hazard Distance THOR 1 1,1 1,2 1,3 1,4 1,5 1,6 1,7 1,8 1,9 2 2,1 2,2 2,3 2,4 2,5 2,6 2,7 2,8 2,9 3 3,1 3,2 3,3 3,4 3,5 3,6 3,7 3,8 3,9 4 Throw Ratio Image 2-4 R5906787 THOR 26/01/2018...

  • Page 19: Lenses & Lens Selection

    About this chapter This chapter gives an overview of available lenses for your Thor and explains how to select the best suited lens for a specific situation using the lens calculator. Also, it is explained how to install and remove a lens from the projector Lens Holder and how to shift, zoom and focus the lens.

  • Page 20: Lens Selection

    R98563033 2.00-3.35 Lens selection Which lens do I need? 1. Go to Barco’s website on www.barco.com and click on myBarco 2. Login on. If you are not yet registered create a login and password. With the created login and password, it is possible to enter myBarco.

  • Page 21: Lens Installation

    Lens installation If no lens is installed the lasers of the Thor series projector can not be powered. The Standby button en Light button will light up red. The Communicator will also show the error message that there is no lens installed.
  • Page 22 8. Activate the corresponding lens parameters for the installed lens. (See user guide of the Communicator chapter Installation > Advanced > Lens parameters) Caution: Not using the correct lens parameters could result in lens damage. Image 3-4 R5906787 THOR 26/01/2018...

  • Page 23: Lens Removal

    This plastic cover prevents that dust is entering the projector. If no lens is installed the lasers of the Thor series projector can not be powered. The Standby button en Light button will light up red. The Communicator will also show the error message that there is no lens installed.
  • Page 24 How to shift the lens of the Thor ? 1. Use the up and down arrow buttons on the Local Keypad to shift the lens vertically and use the left and right arrow buttons on the Local Keypad to shift the lens horizontally.
  • Page 25 PURPLE : When pushing the Shift, Zoom or Focus button the backlight color is purple of the part of the button that is pushed. This indicates that the requested action is ongoing. • RED : The backlight color of the Shift, Zoom and Focus buttons is red in case of end of range. R5906787 THOR 26/01/2018...
  • Page 26 3. Lenses & Lens selection R5906787 THOR 26/01/2018...

  • Page 27: Input & Communication

    General The Input & Communication side of the Thor consists of a Local Keypad integrated into the projector housing and a card cage with three slots. The rear side of the projector is equipped with a tail light which reflects the status of the projector. The laser status light is located on the top side of the projector.

  • Page 28: Laser Status

    Laser Status About the Laser Status Light The Laser Status Light is located at the rear top of the projector (reference 2 image 4-3). The Laser Status Light is a real time indicator of the laser condition. R5906787 THOR 26/01/2018...

  • Page 29: Local Keypad

    The external dew point of the boot area is too high. Wait until the status light turns off and remains off. Local Keypad Identification of the buttons FOCUS SHIFT SHIFT ZOOM ZOOM DOWSER Image 4-4 R5906787 THOR 26/01/2018...
  • Page 30 The backlight of the Test Pattern button is blinking green if one of the test patterns is activated and lit ups continuous green if none is activated. In case of failure the button lights up in red. R5906787 THOR 26/01/2018...

  • Page 31: Cinema Controller

    3D interface port (reference 4 image 4-5. Can be used to connect external 3D devices to the projector. All signals necessary for 3D projection can be provided via this connector. The 3D interface port is disabled if the projector is in Standby mode. R5906787 THOR 26/01/2018...
  • Page 32 The USB-IN port of the communication interface supports RS232 serial communication. You can use the RS232 input port to connect a local PC to your Thor projector. This way you can configure and control your Thor projector from your local PC via RS232 (serial) communication protocol.
  • Page 33 It is also called RS-232-C, which is the third version of the RS-232 standard, and is functionally identical to the CCITT V.24 standard. Logical ’0’ is > + 3V, Logical ’1’ is < - 3V. The range between -3V and +3V is the transition zone. R5906787 THOR 26/01/2018...
  • Page 34 4. Input & Communication R5906787 THOR 26/01/2018...

  • Page 35: Icmp

    • ICMP device certificate • ICMP configuration via Communicator • ICMP reset • Obtaining the Barco ICMP certificate • Removing a HDD from the ICMP • Installing a HDD into the ICMP ICMP introduction About ICMP The ICMP is a removable electronic assembly situated in the Card Cage of the projector. The ICMP stores, decrypts and decodes DCI cinema content and delivers it to the projector in a usable format, all integrated into a single assembly placed directly in the projector.
  • Page 36 The Card Cage can be different depending the projector type but it always consists of a button module and several removable units. The ICMP (reference 1) is inserted into the former ICP slot and IMB slot above the Barco Cinema Controller (reference 2).

  • Page 37: Icmp Hdd

    The restoration from degraded to normal condition of the RAID 5 system is done automatically. When the RAID controller detects a new HDD to replace the failed disk the recovery procedure starts automatically. AUTION The automatic process does not work if more than one disk is lost. In that case the RAID must be completely initialized again! R5906787 THOR 26/01/2018...

  • Page 38: Icmp Communication Ports

    field specifications should be followed. HDD models validated by Barco Only the original HDD spare parts provided by Barco or models validated by Barco (see list below) can be used in the ICMP. All deviations from this rule void warranty.

  • Page 39: Icmp Source Input Ports

    The last produced model is equipped with two HDMI 2.0 (Reference 8, image 5-8) as video source. Image 5-8 ICMP (with HDMI 2.0). Some models with DisplayPorts (Reference 11, image 5-9) and HDMI 1.4 (Reference 10, image 5-9) are still present on the field. R5906787 THOR 26/01/2018...

  • Page 40: Icmp Displayport Specifications

    DisplayPort, Digital Visual Interface (DVI), High-Definition Multimedia Interface (HDMI), Gigabit Video Interface (GVIF), or Unified Display Interface (UDI) connections, even if such copying would be permitted by fair use laws. The specification is proprietary, and implementing HDCP requires a license. R5906787 THOR 26/01/2018...
  • Page 41 Scan Type = progressive. • Both Nvidia and AMD GPU’s will not support color depths of 10 bits/color while in 3D-stereo mode. • Some Graphical Cards may not permit 10 bits/color at all video timings, because of bandwidth restrictions. R5906787 THOR 26/01/2018...

  • Page 42: Icmp Sdi Specifications

    The main link will contain a standard HD-SDI signal, the second (enhancement) link contains the missing Cb and Cr samples. Depending on the implementation the enhancement link could also contain extra information to increase the bit depth. 3G HD-SDI signal 1080p 50/60 (Level A) 3Gb/s 1080p 4:4:4 (Level B) 1. Not supported in Alchemy R5906787 THOR 26/01/2018...
  • Page 43 Display Rate Scan Type SMPTE 274M 1920 x 1080 23.976 23.976 Progressive SMPTE 428-8 2048 x 1080 Y Cb Cr 4:2:2 12-Bit only Y Cb Cr 4:4:4 10 or 12-Bit 29.970 29.970 RGB (XYZ) 4:4:4 10 or 12-Bit R5906787 THOR 26/01/2018...
  • Page 44 Y Cb Cr 4:4:4 10 or 12-Bit 29.97 29.97 RGB (XYZ) 4:4:4 10 or 12-Bit 2. mainly used to carry stereoscopic images. 3. only supported in 3G level A mapping, others formats are supported in both level A and level B mapping. R5906787 THOR 26/01/2018...

  • Page 45: Icmp Hdmi 2.0 Specifications

    All HDMI cables should work with HDMI 2.0 receivers. There is no such thing as a “4K HDMI cable” even though this is sometimes sold this way. But of course there are quality differences. The “high-speed” cables would be preferred over the “standard-speed” cables. They usually work at higher cable lengths than the standard-speed ones. R5906787 THOR 26/01/2018...
  • Page 46 YCbCr 4:4:4 YCbCr 4:2:2 1920x1080 23.976 2048x1080 YCbCr 4:4:4 YCbCr 4:2:2 29.97 59.94 1920x1080 2048x1080 119.88 YCbCr 4:4:4 YCbCr 4:2:2 3840x2160 23.976 4096x2160 24 25 YCbCr 4:4:4 29.97 YCbCr 4:2:2 3840x2160 4096x2160 59.94 YCbCr 4:4:4 YCbCr 4:2:2 R5906787 THOR 26/01/2018...
  • Page 47 YCbCr 4:4:4 YCbCr 4:2:2 29.97 59.94 3840x2160 23.976 4096x2160 YCbCr 4:4:4 YCbCr 4:2:2 29.97 59.94 In Dual (Twin) Link both HDMI2 inputs (port A & port B) should have to same Format, Frame Rate and Color coding. R5906787 THOR 26/01/2018...

  • Page 48: Icmp Hdmi 1.4 Specifications

    HDMI 1.4 specifications HDMI1.4a, including HDCP1.4 HDMI 1.4 Supported 2D Formats (progressive) Format Frame Rate Color coding Bit depth 720x480 YCbCr 4:4:4 YCbCr 4:2:2 720x576 YCbCr 4:4:4 YCbCr 4:2:2 1280x720 23.976 YCbCr 4:4:4 YCbCr 4:2:2 29.97 59.94 119.88 R5906787 THOR 26/01/2018...
  • Page 49 YCbCr 4:4:4 YCbCr 4:2:2 2560x1080 23.976 YCbCr 4:4:4 YCbCr 4:2:2 29.97 59.94 3840x2160 23.976 4096x2160 YCbCr 4:4:4 YCbCr 4:2:2 29.97 HDMI 1.4 Supported 2D (Interlaced) Formats Format Frame Rate Bit depth Color coding 720x576 1920x1080 29.97 59.94 R5906787 THOR 26/01/2018...

  • Page 50: Icmp Status Leds

    Sample coding Bit depth 2 channels L-PCM 5.1 channels L-PCM 7.1 channels L-PCM ICMP status LEDs ICMP status LEDs and Reset button LEDs on ICMP front panel give information on the status of the device. Image 5-10 R5906787 THOR 26/01/2018...

  • Page 51: Icmp Hdd Status Leds

    HDD idle / Disk in RAID OK. Blinking Green HDD I/O activity / Disk in RAID OK. Blinking Green Blinking Red HDD I/O activity / RAID rebuilding. HDD idle / Disk error. See troubleshooting table below for curative actions. R5906787 THOR 26/01/2018...

  • Page 52: Icmp Device Certificate

    Purpose of the Barco ICMP device certificate The device certificate (*.pem) of the Barco ICMP is a digital certificate signed by Barco which is required when ordering the KDM to play a DCP that is ingested on the ICMP. The device certificate is stored inside the ICMP and on a web server.
  • Page 53 The KDM is a small file, and is typically emailed to the exhibitor. To create the correct set of KDMs for a site requires knowledge of the digital certificate in the projection system´s media block. R5906787 THOR 26/01/2018...

  • Page 54: Icmp Configuration Via Communicator

    • Verify internal clock of the ICMP. All installation and maintenance operations on the ICMP are performed via Communicator, the Barco config- uration software. Please refer to the Communicator user guide for further information. About Default settings The restore of factory setting is a feature that allows removing all settings performed on the ICMP and replaces them with the default values set at the factory.

  • Page 55: Icmp Reset

    As a result the projector is safely prepared for the ICMP reboot. All ongoing events on the ICMP (e.g. ingest) are stopped immediately and the ICMP restarts. Image 5-13 ARNING Resetting the ICMP with the hardware reset button may cause damage to the content on the HDDs. A re-configuration of the whole system may be required! R5906787 THOR 26/01/2018...

  • Page 56: Obtaining The Barco Icmp Certificate

    5. ICMP 5.14 Obtaining the Barco ICMP certificate Necessary tools Smartphone (with auto-focus) or control software (e.g. Communicator, Commander or WEB Commander) Using the CertID label to download the ICMP certificate 1. Scan the QR code (reference 1) on the front face of the ICMP with a smartphone. It’s recommended to use a smartphone with auto-focus.

  • Page 57: Installing A Hdd Into The Icmp

    This procedure assumes that the HDD slot of the ICMP is empty. If not, see procedure "Removing a HDD from the ICMP", page 52. AUTION Always use a new empty spare part HDD approved by Barco to replace a malfunction HDD. Do not use a HDD from another ICMP HDD set. AUTION Always make sure that all HDDs in the ICMP HDD set have the same storage capacity.
  • Page 58 Once the RAID is completed the red LED turns off. AUTION It’s strongly recommended to complete the RAID recovery process prior to starting a show. This to ensure that the content integrity is preserved and that the show is not interrupted. R5906787 THOR 26/01/2018...

  • Page 59: Starting Up

    About the start up process To start up the Thor the sealed compartment of the Light Processor and the sealed compartment of the Laser Clusters must be brought into a ’condition’ which is safe for the electronics to operate (avoid moisture due to extreme cooling). In other words, the temperature and humidity inside these compartments must be brought within specs prior to activating the lasers and Light Processor.

  • Page 60: Switching The Thor Off

    About the switch off process To switch off the Thor in a safe manner to protect the internal electronics (avoid moisture due to warming up) the temperature inside the sealed compartments has to be brought back to ambient in a controlled manner. This process is called deconditioning.
  • Page 61 The sealed compartments are brought back to ambient temperature and humidity extraction is stopped. The de- conditioning process takes a few minutes and during this process the backlight of the Light button is blinking white. The projector status light is continuous green (in normal condition, no errors and no warnings). R5906787 THOR 26/01/2018...
  • Page 62 6. Starting up R5906787 THOR 26/01/2018...

  • Page 63: Specifications

    A. Specifications A. SPECIFICATIONS About this chapter This chapter gives an overview of the specification of your Thor as well as the dimensions and the center of gravity. Overview • Specifications of the Thor • Specifications of the ICMP •...

  • Page 64: Specifications Of The Icmp

    A. Specifications 3D systems Color3D (Barco Laser3D): Native 6-primary color-3D system. Only requires color filter glasses (Dolby3D glasses cannot be reused) Active glasses systems Polarization recuperation systems Projector + Barco Alchemy ICMP DCI CTP 1.2 certified Certifications CE; ETL/UL/FCC, CCC Preliminary specifications...
  • Page 65 ICMP License for HDMI2.0 HDR Licence for Dual Projector TMS support Barco Alchemy is supported by the following Theater Management System (TMS) brands: AAM Screenwriter, Ymagis Melody, CFG-Barco, Unique RosettaBridge, ADDE, CinéDigital Manager, GDC, Proyecson, Real Image, Sony, Hollywoodsoftware/Comscore TCC, Kinoton...

  • Page 66: Dimensions Of The Thor

    A. Specifications A.3 Dimensions of the Thor Dimensions PONT OF GRAVITY EXIT DRAIN EXIT DRAIN 1135 293,5 293,5 33,3 33,3 1446 741,6 117,5 1211 117,5 Image A-1 Dimensions given in millimeters. R5906787 THOR 26/01/2018...

  • Page 67: Technical Regulations

    A. Specifications A.4 Technical Regulations Certificates Image A-3 Image A-4 Image A-5 Image A-6 Image A-2 Rohs CE mark ETL mark FCC label EAC mark Image A-7 RCM mark R5906787 THOR 26/01/2018...
  • Page 68 A. Specifications R5906787 THOR 26/01/2018...

  • Page 69: Environmental Information

    (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.

  • Page 70: Taiwan Rohs Compliance

    Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products” of Chinese Mainland.

  • Page 71: Turkey Rohs Compliance

    (lung irritant). • Potential Chronic Health Effects: Slightly hazardous in case of skin contact (sensitizer). The substance may be toxic to upper respiratory tract, skin, eyes. Repeated or prolonged exposure to the substance can produce target organ damage. R5906787 THOR 26/01/2018...

  • Page 72: Contact Information

    Registered office address: President Kennedypark 35, 8500 Kortrijk, Belgium Contact address: Beneluxpark 21, 8500 Kortrijk, Belgium Importers contact information To find your local importer, contact Barco directly or one of Barco’s regional offices via the contact information given on Barco’s web site, www.barco.com. B.7 Production address...

  • Page 73: Glossary

    HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and com- pressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. R5906787 THOR 26/01/2018...
  • Page 74 SuperSpeed mode with a signaling speed of 5 Gbit/s and a usable data rate of up to 4 Gbit/s (500 MB/s). A USB 3.0 port is usually colored blue, and is backwards compatible with USB 2.0. R5906787 THOR 26/01/2018...

  • Page 75: Index

    Environmental information 65–67 Disposal information RoHS compliance 65–67 Taiwan Laser status 24–25 Turkey Lens 17, 19 Expected Focus From you Installation Removal Shift Zoom Lens Holder Focus Lenses lens selection Lenses Available General considerations Lens Holder Local Keypad R5906787 THOR 26/01/2018...
  • Page 76 USB 3.0 Safety 5, 7–9, 11–12 USB port Battery explosion User definition Electrical shock Fire hazard Hazard Distance 11–12 Hazardous Chemicals Welcome Personal injury Projector damage Safety Data Sheet (SDS) Servicing Safety Data Sheet (SDS) Zoom Safety training R5906787 THOR 26/01/2018...
