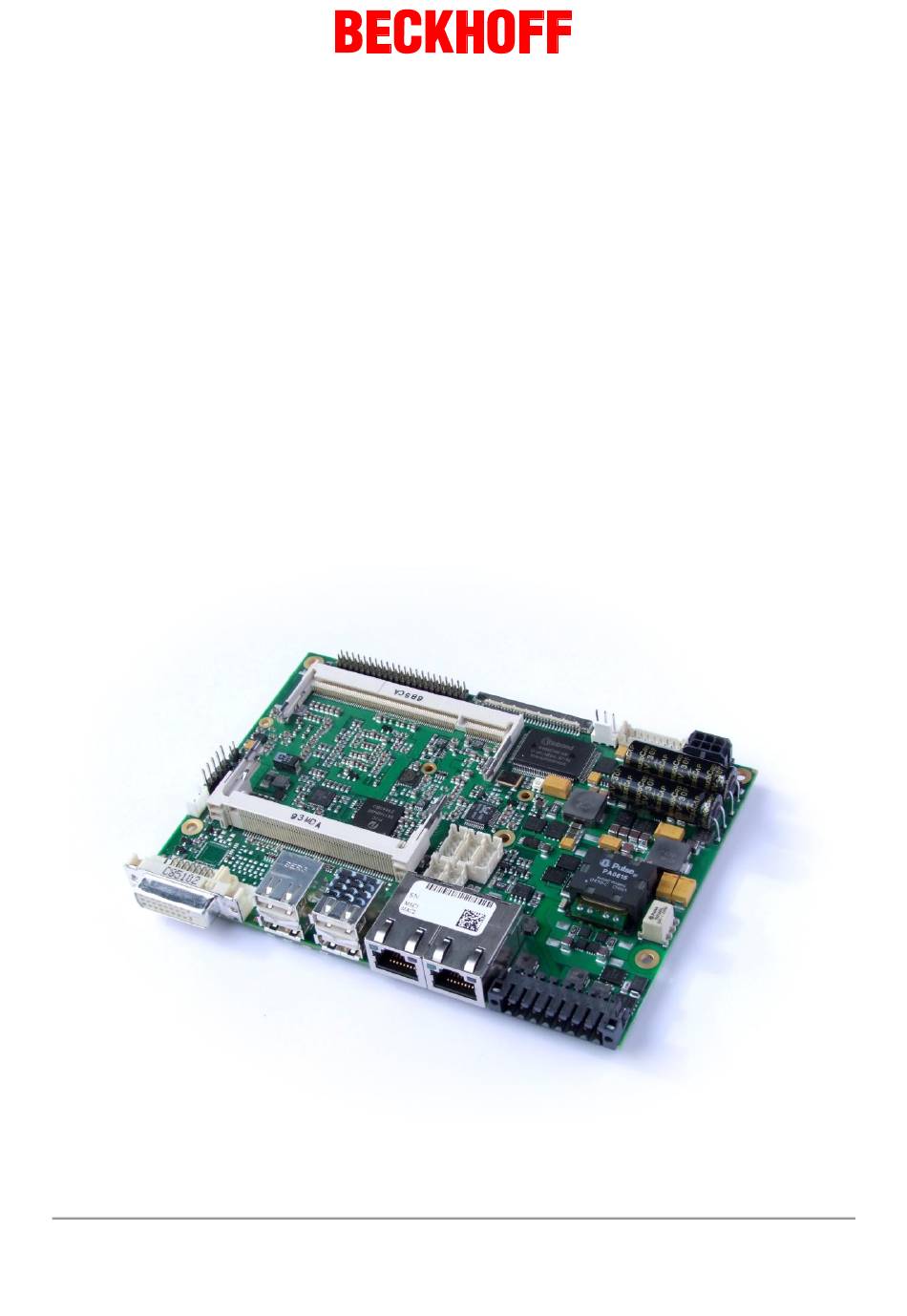

- Page 1 CB3053 Manual rev. 1.3 Beckhoff Automation GmbH phone: +49 (0) 52 46/963-0 Eiserstr. 5 fax: +49 (0) 52 46/963-198 33415 Verl email: info@beckhoff.de Germany web: www.beckhoff.de...
-
Page 3: Table Of Contents
Remarks for Setup Use ......................39 Top Level Menu .......................... 39 Standard CMOS Features ......................40 5.3.1 IDE Channel 0 Master/Slave ....................41 Advanced BIOS Features ......................42 5.4.1 CPU Feature ........................44 Beckhoff New Automation Technology CB3053 page 3... - Page 4 Technical Data ........................... 64 Electrical Data ..........................64 Environmental Conditions ......................64 Thermal Specifications ....................... 65 Support and Service .......................... 66 Beckhoff's Branch Offices and Representatives ................ 66 Beckhoff Headquarters ....................... 66 9.2.1 Beckhoff Support ........................ 66 9.2.2 Beckhoff Service ......................... 66 Annex: Post-Codes ..........................
- Page 5 Notes on the Documentation Chapter: Document History Beckhoff New Automation Technology CB3053 page 5...
-
Page 6: Document History
LAN pinout All company names, brand names, and product names referred to in this manual are registered or unregistered trademarks of their respective holders and are, as such, protected by national and international law. page 6 Beckhoff New Automation Technology CB3053... -
Page 7: Introduction
1.1.2 Copyright © This documentation is copyrighted. Any reproduction or third party use of this publication, whether in whole or in part, without the written permission of Beckhoff Automation GmbH, is forbidden. Beckhoff New Automation Technology CB3053 page 7... -
Page 8: Safety Instructions
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH. page 8... -
Page 9: Description Of Safety Symbols
If you do not adhere to the safety advise next to this symbol, there is obvious hazard to individuals, to environment, to materials, or to data. OTE OR POINTER This symbol indicates information that contributes to better understanding. Beckhoff New Automation Technology CB3053 page 9... -
Page 10: Essential Safety Measures
Read the operating instructions All users of the product must have read the operating instructions for the system they work with. System know-how All users must be familiar with all accessible functions of the product. page 10 Beckhoff New Automation Technology CB3053... -
Page 11: Functional Range
As far as the described motherboard was acquired as an integral component of an Industrial PC from Beckhoff Automation GmbH, this product description shall be applied only in limited scope. Only the contractually agreed specifications of the corresponding Industrial PC from Beckhoff Automation GmbH shall be relevant. -
Page 12: Overview

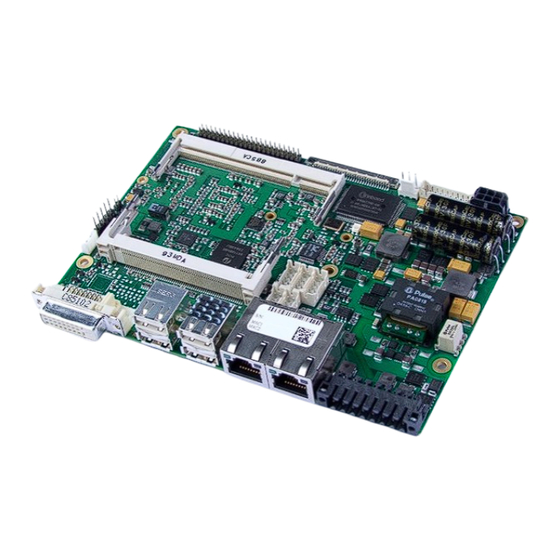

2 Overview 2.1 Features The CB3053 is a highly complex 3,5-inch board which incorporates complete motherboard functionality. Equipped with an Intel® Atom™ processor (Z510 or Z530), it can accommodate up to 2 GByte of RAM (DDR2-533) via SO-DIMM200. It also provides a PCI bus (via mPCI connector) and additional peripheral devices such as two serial interfaces, two Gigabit Ethernet interfaces (LAN), an IDE interface, an audio interface (HDA 5.1), eight USB channels, DVI and LVDS/TFT support, and a touchscreen connector. - Page 13 AC97/HDA compatible sound controller with SPDIF in and out RTC with external CMOS battery 24V supply voltage (tolerates 20V-30V) PCI bus via mPCI connector UPS: capacitor-based or Pb-battery sizet: 102 mm x 147 mm Beckhoff New Automation Technology CB3053 page 13...
-
Page 14: Specifications And Documents
SM-Bus Specification Version 2.0 www.smbus.org Intel® Chipset Documentation SCH Datasheet www.intel.com Intel® Chip Documentation Atom Datasheet www.intel.com Winbond® Chip Documentation W83627HG www.winbond-usa.com oder www.winbond.com.tw Intel® Chip Documentation 82575EB Datasheet www.intel.com page 14 Beckhoff New Automation Technology CB3053... -
Page 15: Detailed Description
3.1 Power Supply / UPS The CB3053 needs an external power supply of 24V (will tolerate 20V-30V). This input is galvanically isolated from the board's internal circuitry. It is also used for charging any UPS device that may be present. -
Page 16: Connectors
Chapter: Connectors Memory 4 Connectors This section describes all the connectors found on the CB3053. AUTION For most interfaces, the cables must meet certain requirements. For instance, USB 2.0 requires twisted and shielded cables to reliably maintain full speed data rates. Restrictions on maximum cable length are also in place for many high speed interfaces and for power supply. -
Page 17: Connector Map
34 P1301/3 "USB 1-4" p. 29 P1304/5 "USB 5-8" p. 30 P1306 "Fan Connector" p. 38 P1400 "External CMOS Battery" p. 21 P1600 "Power Supply" p. 18 P1800 "Power Connector" p. 19 Beckhoff New Automation Technology CB3053 page 17... -
Page 18: Power Supply
Pinout power connector: Name Description BATT24V# Pb-accu 24V - BATT24V Pb-accu 24V + UPS_OUT UPS outgoing supply 24V ground 24V# power supply 24V - power supply 24V + PC_ON# power on PWRSTAT power status page 18 Beckhoff New Automation Technology CB3053... -
Page 19: Power Connector
UPS is a Pb-battery. They are not supported if the UPS is capacitor-based. Pinout power connector Molex 2x3: Name Name Description Description ground power supply 5V reserved SVCC standby supply 5V reserved power supply 12V Beckhoff New Automation Technology CB3053 page 19... -
Page 20: System
3.3 volt supply LED GPIO device LED1 3.3V 3.3 volt supply LED GPIO device LED2 LED3 LED GPIO device speaker to 5 volt SPEAKER KDAT keyboard data standby supply 5 volt (S)VCC KCLK keyboard clock page 20 Beckhoff New Automation Technology CB3053... -
Page 21: External Cmos Battery
For keeping the internal clock alive even if the rest of the board is switched off, an external battery can be attached via a 2 pin connector (JST B2B-EH-A, mating connector: EHR-2). Name Description BATT battery 3.3 volt ground Beckhoff New Automation Technology CB3053 page 21... -
Page 22: Memory
16 DQ16 DQ20 data 20 data 17 DQ17 DQ21 data 21 ground ground data strobe 2 - DQS2# reserved data strobe 2 + DQS2 DQM2 data mask 2 page 22 Beckhoff New Automation Technology CB3053... - Page 23 5 + ground ground data 42 DQ42 DQ46 data 46 data 43 DQ43 DQ47 data 47 ground ground data 48 DQ48 DQ52 data 52 data 49 DQ49 DQ53 data 53 ground ground Beckhoff New Automation Technology CB3053 page 23...
- Page 24 DQS7 data strobe 7 + data 58 DQ58 ground data 59 DQ59 DQ62 data 62 ground DQ63 data 63 SMBus data ground SMBus clock SPD address 3.3 volt supply 3.3V SPD address page 24 Beckhoff New Automation Technology CB3053...
-
Page 25: Dvi
Chapter: Connectors 4.7 DVI The CB3053 is connected to an external display via a DVI-D connector. Only digital displays are supported. RGB-pins (C1-C4 and pin 8) are not connected. Pinout DVI-D: Name Description TMDSDAT2# DVI data 2 - TMDSDAT2 DVI data 2 +... -
Page 26: Lvds
LVDS even data 3 - TXO03 LVDS even data 3 + reserved reserved ground reserved reserved ground reserved reserved reserved reserved reserved reserved ground 3.3V 3.3 volt supply DDC_CLK EDID clock for LCD page 26 Beckhoff New Automation Technology CB3053... - Page 27 LVDS Chapter: Connectors Name Description DDC_DAT EDID data for LCD FP_3.3V switched 3.3 volt for display FP_BL switched 5 volt for backlight 5 volt supply Beckhoff New Automation Technology CB3053 page 27...
-
Page 28: Touch Screen
Touch Screen 4.9 Touch Screen A key feature of the CB3053 is the possibility to connect a touch screen. Both 4-wire and 5-wire resistive touch screens are supported. For receiving the relevant signals a 5 pin standard IDC socket connector with a spacing of 2.54 mm is provided. -
Page 29: Usb 1-4
Every USB interface provides up to 500 mA current and is protected by an electronically resettable fuse. Pinout USB connector for channel X: Name Description 5 volt for USBX USBX# minus channel USBX USBX plus channel USBX ground Beckhoff New Automation Technology CB3053 page 29... -
Page 30: Usb 5-8
Pinout 2x5 pin connector USB 7/8 Name Name Description Description 5 volt for USB7 5 volt for USB8 minus channel USB7 USB7# USB8# minus channel USB8 plus channel USB7 USB7 USB8 plus channel USB8 ground ground reserved reserved page 30 Beckhoff New Automation Technology CB3053... -
Page 31: Lan
LAN2 channel 0 minus LAN2-1 LAN2 channel 1 plus LAN2-2 LAN2 channel 2 plus LAN2-2# LAN2 channel 2 minus LAN2-1# LAN2 channel 1 minus LAN2-3 LAN2 channel 3 plus LAN2-3# LAN2 channel 3 minus Beckhoff New Automation Technology CB3053 page 31... -
Page 32: Audio
AUXA_R / AUXA_L / AUX input left / rear output right REAR_R REAR_L rear output left microphone input 1 / MIC1 / MIC2 / microphone input 2 / center output CENTER LFE output page 32 Beckhoff New Automation Technology CB3053... -
Page 33: Ide Interface
1 PDA1 PDMA66EN enable UDMA66 address bit 0 PDA0 PDA2 address bit 2 chip select signal 0 PDSC0# PDCS1# chip select signal 1 PHDLED ground supply HDD 5V supply HDD 5V ground reserved Beckhoff New Automation Technology CB3053 page 33... -
Page 34: Serial Interfaces Com1 And Com2
Serial Interfaces COM1 and COM2 4.15 Serial Interfaces COM1 and COM2 The CB3053 offers two serial interfaces COM1 and COM2, which are made available as 2x5pin connectors (JST B10B-PHDSSLFSN, mating connector: PHDR-10VS). On some board variants COM1 is being used internally so that these boards only have COM2 externally available. -
Page 35: Smb/I2C
Chapter: Connectors 4.16 SMB/I2C The CB3053 can communicate with external devices via the SMBus protocol or the I2C protocol. The signals for these protocols are available through a 2x5 pin connector (JST® B10B-PHDSSLFSN, mating connector: PHDR-10VS). The SMBus signals are processed by the SCH chip (Intel® US15W), the I2C signals are processed by the SIO1 unit (Winbond®... -
Page 36: Mini-Pci
Chapter: Connectors Mini-PCI 4.17 Mini-PCI The CB3053 allows you to add expansion cards complying to the Mini-PCI standard (type III). One such card can be inserted into the Mini-PCI slot available on the board. Name Name Description Description reserved reserved... - Page 37 5 volt supply reserved address/data 1 reserved ground ground reserved ground reserved reserved reserved reserved reserved reserved reserved reserved reserved ground reserved reserved reserved reserved reserved reserved lock PLOCK# reserved reserved S3.3V 3.3 volt supply Beckhoff New Automation Technology CB3053 page 37...
-
Page 38: Fan Connector
A 3 pin connector is available for controlling and monitoring an external fan (12 volt). For the monitoring the fan must provide a corresponding speed signal. Pinout fan connector: Name Description ground 12 volt supply regulated TACHO fan monitoring signal page 38 Beckhoff New Automation Technology CB3053... -
Page 39: Bios Settings
(usually somewhere above the disabled item on the same screen). Use the arrow buttons to navigate from one item to another. For selecting an item press Enter which will open either a sub menu or a dialog screen. Beckhoff New Automation Technology CB3053 page 39... -
Page 40: Standard Cmos Features
Sub menu: see "IDE Channel 0 Master/Slave" (page 41) Halt On Options: All Errors / No Errors / All, But Keyboard Base Memory Options: none Extended Memory Options: none Total Memory Options: none page 40 Beckhoff New Automation Technology CB3053... -
Page 41: Ide Channel 0 Master/Slave
Options: CHS / LBA / Large / Auto Capacity Options: none Cylinder Options: none Head Options: none Precomp Options: none Landing Zone Options: none Sector Options: none Beckhoff New Automation Technology CB3053 page 41... -
Page 42: Advanced Bios Features
/ IBA GE Slot 010 / IBA GE Slot 010 / WinCE / Disabled Boot Other Device Options: Enabled / Disabled Boot Up NumLock Status Options: Off / On Gate A20 Option Options: Normal / Fast page 42 Beckhoff New Automation Technology CB3053... - Page 43 MPS Version Control For OS Options: 1.1 / 1.4 OS Select For DRAM > 64MB Options: Non-OS2 / OS2 HDD S.M.A.R.T. Capability Options: Enabled / Disabled Full Screen LOGO Show Options: Enabled / Disabled Beckhoff New Automation Technology CB3053 page 43...
-
Page 44: Cpu Feature
C1E Function Options: Auto / Disabled CPU C State Capability Options: Disabled / C2 / C4 / C6 Execute Disable Bit Options: Enabled / Disabled Virtualization Technology Options: Enabled / Disabled page 44 Beckhoff New Automation Technology CB3053... -
Page 45: Hard Disk Boot Priority
In diesem Untermenü haben die Tasten <Page Up>, <Page Down>, <+> und <-> eine andere Funktion als sonst: Sie dienen dazu, die in der Liste aufgeführten Devices nach oben bzw. unten zu verschieben. Boot Priority Options: Dynamic / Fixed / Manual Beckhoff New Automation Technology CB3053 page 45... -
Page 46: Advanced Chipset Features
640x480 generic / 800x600 generic / 1024x768 generic / 640x480 NEC 8.4'' / 800x480 NEC 9'' / 1024x600 TMD 5.61'' / 1024x600 Samsung 4.8'' / 1024x768 Samsung 15'' / 1024x768 Sharp 7.2'' / 1280x800 Samsung 15.4 Panel Scaling Options: Auto / Force / Off page 46 Beckhoff New Automation Technology CB3053... -
Page 47: Integrated Peripherals
Sub menu: see "OnChip IDE Devices" (page 48) Onboard Device Sub menu: see "Onboard Devices" (page 49) SuperIO Device Sub menu: see "SuperIO Devices" (page 50) USB Device Setting Sub menu: see "USB Device Setting" (page 51) Beckhoff New Automation Technology CB3053 page 47... -
Page 48: Onchip Ide Devices
Auto / Mode 0 / Mode 1 / Mode 2 / Mode 3 / Mode 4 IDE Primary Master UDMA Options: Disabled / UDMA33 IDE Primary Slave UDMA Options: Disabled / UDMA33 page 48 Beckhoff New Automation Technology CB3053... -
Page 49: Onboard Devices
Console Redirect Options: Disabled / COM1 / COM2 Serial Port Mode Options: 9600,8,n,1 / 19200,8,n,1 / 115200,8,n,1 After Boot Options: Enabled / Disabled Flow Control Signals Options: Ignore / Tested Beckhoff New Automation Technology CB3053 page 49... -
Page 50: Superio Devices
RxD , TxD Active Options: Hi,Hi / Hi,Lo / Lo,Hi / Lo,Lo IR Transmission Delay Options: Enabled / Disabled UR2 Duplex Mode Options: Full / Half Use IR Pins Options: RxD2,TxD2 / IR-Rx2Tx2 page 50 Beckhoff New Automation Technology CB3053... -
Page 51: Usb Device Setting
USB 2.0 Controller Options: Enabled / Disabled USB Operation Mode Options: Full/Low Speed / High Speed USB Keyboard Function Options: Enabled / Disabled USB Storage Function Options: Enabled / Disabled Beckhoff New Automation Technology CB3053 page 51... -
Page 52: Power Management Setup
Soft-Off by PWR-BTTN Options: Instant-Off / Delay 4 Sec HPET Feature Sub menu: see "HPET Feature" (page 53) Intel DTS Feature Sub menu: see "Intel DTS Feature" (page 54) page 52 Beckhoff New Automation Technology CB3053... -
Page 53: Hpet Feature
[32-bit mode] ↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults HPET Support Options: Enabled / Disabled HPET Mode Options: 32-bit mode / 64-bit mode Beckhoff New Automation Technology CB3053 page 53... -
Page 54: Intel Dts Feature
Critical Trip Point Options: POR / 15°C / 23°C / 31°C / 39°C / 47°C / 55°C / 63°C / 71°C / 79°C / 87°C / 95°C / 103°C / 111°C / 119°C / 127°C page 54 Beckhoff New Automation Technology CB3053... -
Page 55: Pnp/Pci Configuration
Enabled / Disabled Resources Controlled By Options: Auto(ESCD) / Manual IRQ Resources Sub menu: see "IRQ Resources" (page 56) PCI/VGA Palette Snoop Options: Enabled / Disabled Maximum Payload Size Options: none Beckhoff New Automation Technology CB3053 page 55... -
Page 56: Irq Resources
IRQ-9 assigned to Options: PCI Device / Reserved IRQ-10 assigned to Options: PCI Device / Reserved IRQ-11 assigned to Options: PCI Device / Reserved IRQ-12 assigned to Options: PCI Device / Reserved page 56 Beckhoff New Automation Technology CB3053... -
Page 57: Pc Health Status
CPU VTT Options: none Memory 1.8 V Options: none +3.3 V Options: none +5.0 V Options: none +1.5 V Options: none VBatt Options: none Fan1 Speed Options: none Beckhoff New Automation Technology CB3053 page 57... - Page 58 Chapter: BIOS Settings PC Health Status Board Revision Options: none page 58 Beckhoff New Automation Technology CB3053...
-
Page 59: Load Fail-Safe Defaults
Forgotten or lost passwords are a frequent problem. 5.13 Save & Exit Setup Settings are saved and the board is restarted. 5.14 Exit Without Saving This option leaves the setup without saving any changes. Beckhoff New Automation Technology CB3053 page 59... -
Page 60: Bios Update
If you try to update the BIOS using the wrong file the board will not start up again. page 60 Beckhoff New Automation Technology CB3053... -
Page 61: Mechanical Drawings
PCB: Mounting Holes Chapter: Mechanical Drawings 7 Mechanical Drawings 7.1 PCB: Mounting Holes Beckhoff New Automation Technology CB3053 page 61... -
Page 62: Pcb: Pin 1 Dimensions
Chapter: Mechanical Drawings PCB: Pin 1 Dimensions 7.2 PCB: Pin 1 Dimensions page 62 Beckhoff New Automation Technology CB3053... -
Page 63: Pcb: Die Center
PCB: Die Center Chapter: Mechanical Drawings 7.3 PCB: Die Center All dimensions are in mil (1 mil = 0,0254 mm) Beckhoff New Automation Technology CB3053 page 63... -
Page 64: Technical Data
9 up to 500Hz, 10m/s , for packaged boards AUTION Shock and vibration figures pertain to the motherboard alone and do not include additional components such as heat sinks, memory modules, cables etc. page 64 Beckhoff New Automation Technology CB3053... -
Page 65: Thermal Specifications
The end customer has the responsibility to ensure that the die temperature of the processor does not exceed 90°C. Permanent overheating may destroy the board! In case the temperature exceeds 90°C the environmental temperature must be reduced. Under certain circumstances sufficient air circulation must be provided. Beckhoff New Automation Technology CB3053 page 65... -
Page 66: Support And Service
Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products. The addresses of Beckhoff's branch offices and representatives around the world can be found on her internet pages: http://www.beckhoff.com You will also find further documentation for Beckhoff components there. - Page 67 Annex: Post-Codes Beckhoff New Automation Technology CB3053 page 67...
-
Page 68: I Annex: Post-Codes
Test the interrupt Mask bits of IRQ-channel 1 of the interrupt controller 8259. Test the interrupt Mask bits of IRQ-channel 2 of the interrupt controller 8259 Testing the function of the interrupt controller (8259). Initialise EISA slot (if existent). page 68 Beckhoff New Automation Technology CB3053... - Page 69 4. Initialise the ACPI table (top of memory). 5. Initialise and link ROMs on ISA cards 6. Assignment of PCI-IRQs 7. Initialising of the advanced power management (APM) 8. Set back the IRQ-register. Beckhoff New Automation Technology CB3053 page 69...
- Page 70 Unpacking of the packed BIOS program codes into the random access memory. Copying of the BIOS program code into the shadow RAM (segments E000 & F000) via chipset hook. Testing of the CMOS read/write functionality Boot trial over boot-loader-routine (software-interrupt INT 19h) page 70 Beckhoff New Automation Technology CB3053...
-
Page 71: Annex: Resources
The exclusivity is not given and not possible on the PCI side. Function Address IRQ0 Timer IRQ1 PS/2 Keyboard IRQ2 (9) IRQ3 COM1 IRQ4 COM2 IRQ5 IRQ6 IRQ7 IRQ8 IRQ9 IRQ10 IRQ11 IRQ12 PS/2 Mouse Beckhoff New Automation Technology CB3053 page 71... -
Page 72: Pci Devices
Function Address 10-11 Standard slave address 40-41 GPIO 60-61 BIOS internal 70-73 POST code output 88-89 BIOS-defined slave address A0-A1 DIMM 1 A2-A3 DIMM 2 A4-AF BIOS internal B0-BF BIOS internal D2-D3 Clock page 72 Beckhoff New Automation Technology CB3053...
