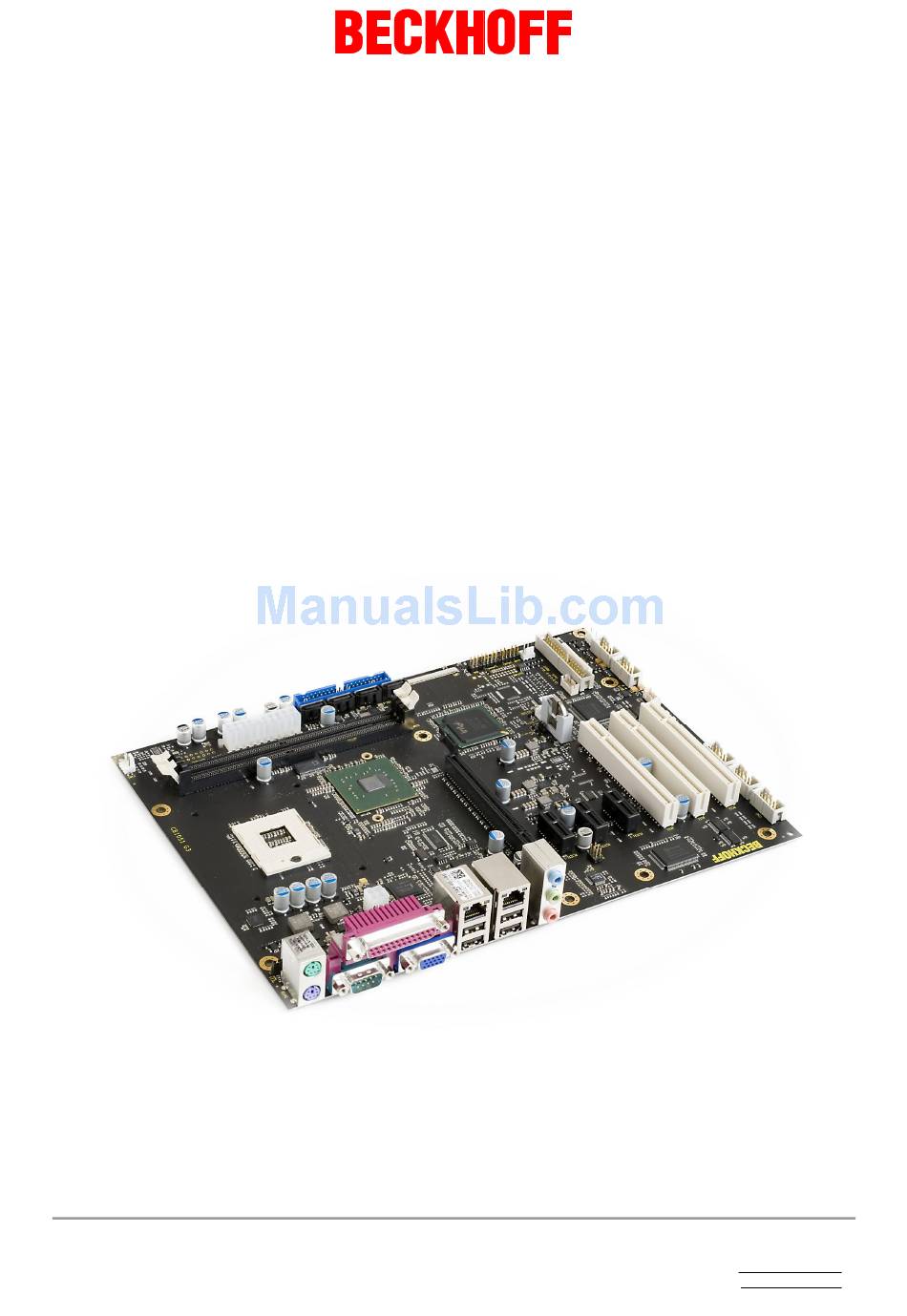

- Page 1 CB1051 Manual rev 1.2 ATX power supply Beckhoff Automation GmbH phone: +49 (0) 52 46/963-0 Eiserstr. 5 fax: +49 (0) 52 46/963-198 33415 Verl email: info@beckhoff.de Germany web: www.beckhoff.de...
-
Page 3: Table Of Contents
TV-Out ..........................35 3.4.5 Aux-In & CD-In ........................36 3.4.6 S/PDIF ..........................37 3.4.7 PCI interfaces........................38 3.4.8 PCI-express interfaces (x1) ....................40 3.4.9 PCI-express interface (x16) ....................41 3.4.10 SMB/I2C ........................44 3.4.11 Fan Connectors......................45 Jumper Settings........................46 3.5.1 Clear CMOS........................46 Beckhoff New Automation Technology CB1051 page 3... - Page 4 Mechanical Drawing........................74 PCB: Mounting Holes......................74 Technical Data..........................75 Electrical Data ........................75 Environmental Conditions ......................75 Thermal Specifications......................76 Support and Service........................77 Beckhoff's Branch Offices and Representatives ..............77 Beckhoff Headquarters ......................77 8.2.1 Beckhoff Support .......................77 8.2.2 Beckhoff Service .......................77 Annex: Post-Codes ........................78 Annex: Resources..........................81 IO Range ...........................81...
-
Page 5: Document History
All company names, brand names, and product names referred to in this manual are registered or unregistered trademarks of their respective holders and are, as such, protected by national and international law. Beckhoff New Automation Technology CB1051 page 5... -
Page 6: Introduction
1.1.2 Copyright © This documentation is copyrighted. Any reproduction or third party use of this publication, whether in whole or in part, without the written permission of Beckhoff Automation GmbH, is forbidden. page 6 Beckhoff New Automation Technology CB1051... -
Page 7: Safety Instructions
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH. 1.2.2 Description of Safety Symbols The following safety symbols are used in this documentation. -
Page 8: Essential Safety Measures
Read the operating instructions All users of the product must have read the operating instructions for the system they work with. System know-how All users must be familiar with all accessible functions of the product. page 8 Beckhoff New Automation Technology CB1051... -
Page 9: Functional Range
As far as the described motherboard was acquired as an integral component of an Industrial PC from Beckhoff Automation GmbH, this product description shall be applied only in limited scope. Only the contractually agreed specifications of the corresponding Industrial PC from Beckhoff Automation GmbH shall be relevant. -

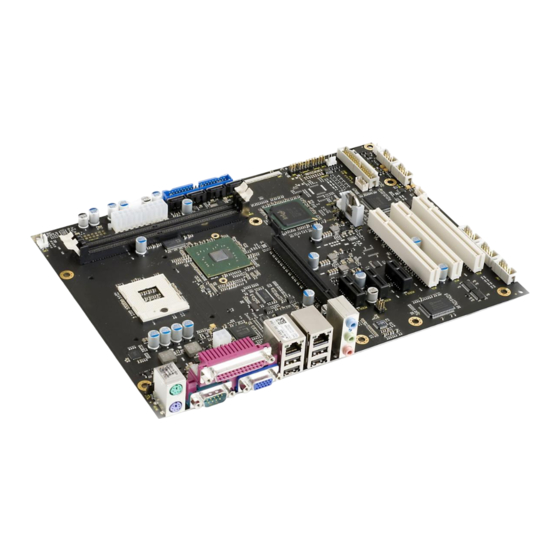

Page 10: Overview
667 max.). Expansion cards can be added into three PCI slots, three PCIeX1 slots, and one PCIeX16 slots. The CB1051 also offers a wide range of internal and external connectors, such as four serial ports, two LAN connectors, eight USB channels, one PATA and four SATA connectors, digital and analogue audio, CRT/LCD connector, TV-Out connector etc. - Page 11 AC97 compatible sound controller with SPDIF in and out RTC with external CMOS battery ATX power supply (including 2x2pin 12V connector) Three PCI slots Three PCIe x1 slots One PCIe x16 slots ATX form factor (305mm x 220mm) Beckhoff New Automation Technology CB1051 page 11...
-
Page 12: Specifications And Documents
Celeron M, Core Duo/Solo, Core 2 Duo www.intel.com § Winbond chip description W83627HG Datasheet www.winbond-usa.com oder www.winbond.com.tw § Intel chip description 82562EZ/GZ Datasheet www.intel.com § Intel chip description 82573L(E) Datasheet www.intel.com § IDT chip description IDTCV111i Datasheet www.idt.com page 12 Beckhoff New Automation Technology CB1051... -
Page 13: Connectors
5 volt supply PWRBTN# powerbutton ground ground 5 volt supply ground ground ground power on PWR_ON volt supply -5V standby supply 5V SVCC 5 volt supply 12 volt supply 5 volt supply Beckhoff New Automation Technology CB1051 page 13... - Page 14 Chapter: Connectors Power Supply, System Connectors, CPU Pinout ATX power connector 2x2: Description Name Name Description ground COREIN 12 volt supply ground COREIN 12 volt supply page 14 Beckhoff New Automation Technology CB1051...
-
Page 15: System
3.3 volt supply harddisk LED HDLED# reserved 5 volt supply 5 volt supply reserved ground IrDA transmit IRTX reserved ground BEEP speaker IrDA receive IRRX reserved IrDA control CIRRX ground 5 volt supply RESET# reset Beckhoff New Automation Technology CB1051 page 15... -
Page 16: Cpu Socket
Power Supply, System Connectors, CPU 3.1.3 CPU Socket The CB1051 board has an mPGA479M CPU socket accomodating the following types of processors manufactured by Intel®: Celeron® M, Pentium® M, Core™ Duo and Core™2 Duo. The mPGA479M is a ZIF (Zero Insertion Force) socket, which means that you can insert the processor without there being any resistance. -
Page 17: Cmos Battery
The board ships with a CR2032 battery holder (Renata VBH2032-1) and 3V battery. Alternatively, an external battery can be connected via a 2pin connector (JST B2B-EH-A, mating connector: EHR-2). Name Description BATT battery 3.3 volt ground Beckhoff New Automation Technology CB1051 page 17... -
Page 18: Back Panel Connectors
(S)VCC 5 volt supply mouse clock MCLK reserved Pinout PS/2 keyboard: Description Name Name Description keyboard data KDAT MDAT mouse data ground (S)VCC 5 volt supply keyboard clock KCLK MCLK mouse clock page 18 Beckhoff New Automation Technology CB1051... -
Page 19: Parallel Port, Serial Ports, Vga
SLCT Pinout serial port (DSUB connector): Description Name Name Description data carrier detect data set ready receive data request to send transmit data clear to send data terminal ready ring indicator ground Beckhoff New Automation Technology CB1051 page 19... - Page 20 Back Panel Connectors Pinout VGA connector: Name Description GREEN green BLUE blue reserved ground ground ground ground 5 volt supply ground reserved DDDA DDC data HSYNC horizontal sync VSYNC vertical sync DDCK DDC clock page 20 Beckhoff New Automation Technology CB1051...
-
Page 21: Usb And Lan
The controller chip is the Intel 82573. PXE and RPL functions are not supported. Pinout USB connector for channel X: Name Description 5 volt for USBX USBX# minus channel USBX USBX plus channel USBX ground Beckhoff New Automation Technology CB1051 page 21... - Page 22 LAN2 channel 0 minus LAN2-1 LAN2 channel 1 plus LAN2-1# LAN2 channel 1 minus LAN2-2 LAN2 channel 2 plus LAN2-2# LAN2 channel 2 minus LAN2-3 LAN2 channel 3 plus LAN2-3# LAN2 channel 3 minus page 22 Beckhoff New Automation Technology CB1051...
-
Page 23: Audio Connectors
Back Panel Connectors Chapter: Connectors 3.2.4 Audio connectors Line-in, line-out, and microphone signals are provided in the form of three 3,5mm-TRS-connectors. Beckhoff New Automation Technology CB1051 page 23... -
Page 24: Sata, Pata, Fdd, Memory
PDDACK# ground interrupt signal PDIRQ reserved address bit 1 PDA1 PDMA66EN enable UDMA66 address bit 0 PDA0 PDA2 address bit 2 chip select signal 0 PDSC0# PDCS1# chip select signal 1 PHDLED ground page 24 Beckhoff New Automation Technology CB1051... -
Page 25: Sata Interfaces
3.3.2 SATA interfaces Four SATA connectors are available to connect SATA devices. Pinout SATA: Name Description ground SATATX SATA transmit + SATATX# SATA transmit - ground SATARX SATA receive + SATARX# SATA receive - ground Beckhoff New Automation Technology CB1051 page 25... -
Page 26: Floppy Interface
MT0# motor enable 0 reserved DIR# direction reserved STP# step ground write data ground write enable ground TR0# track 0 ground WPRT# write protect ground RDATA# read data page 26 Beckhoff New Automation Technology CB1051... - Page 27 1 ground DIR# direction ground STP# step ground write data ground write enable ground TR0# track 0 ground WPRT# write protect reserved RDATA# read data ground HDSL# head select reserved disk change Beckhoff New Automation Technology CB1051 page 27...
-
Page 28: Memory
Chapter: Connectors SATA, PATA, FDD, Memory 3.3.4 Memory The CB1051 is equipped with two DIMM240 sockets for DDR2-667-RAM. For mechanical reasons it is possible that particular memory modules cannot be employed. Please ask your distributor for recommended memory modules With currently available memory modules a memory extension up to 4 GByte is possible. - Page 29 1 address 13 on die termination 1 ODT1 1,8V 1.8 volt supply 1.8 volt supply 1,8V ground ground DQ36 data 36 data 32 DQ32 DQ37 data 37 data 33 DQ33 ground Beckhoff New Automation Technology CB1051 page 29...
- Page 30 7 DQS7 ground ground DQ62 data 62 data 58 DQ58 DQ63 data 63 data 59 DQ59 ground ground 3,3V 3.3 volt supply SMBus data SPD address 0 SMBus clock SPD address 1 page 30 Beckhoff New Automation Technology CB1051...
-
Page 31: Internal Connectors
Pinout 2x5 pin connector USB 7/8: Description Name Name Description 5 volt for USB7 5 volt for USB8 minus channel USB7 USB7# USB8# minus channel USB8 plus channel USB7 USB7 USB8 plus channel USB8 ground ground reserved reserved Beckhoff New Automation Technology CB1051 page 31... -
Page 32: Serial Ports Com2 To Com4
The port address and the interrupt are set via the BIOS setup. Pinout COM connector: Description Name Name Description data carrier detect data set ready receive data request to send transmit data clear to send data terminal ready ring indicator ground 5 volt supply page 32 Beckhoff New Automation Technology CB1051... -
Page 33: Lvds
LVDS odd clock - TXO1C LVDS odd clock + TXO13# LVDS odd data 3 - TXO13 LVDS odd data 3 + ground 3.3V 3.3 volt supply DDC_CLK EDID clock for LCD DDC_DAT EDID data for LCD Beckhoff New Automation Technology CB1051 page 33... - Page 34 Chapter: Connectors Internal Connectors Name Description FP_3.3V switched 3.3 volt for display FP_BL switched 5 volt for backlight 5 volt supply page 34 Beckhoff New Automation Technology CB1051...
-
Page 35: Tv-Out
Internal Connectors Chapter: Connectors 3.4.4 TV-Out The CB1051 board provides TV-out signals through an 2x5 pin connector (JST B10B-PHDSSLFSN, mating connector: PHDR-10VS). Pinout TV-out connector: Description Name Name Description TVDAC channel A TVDACA 3.3V 3.3 volt supply TVDAC channel B... -
Page 36: Aux-In & Cd-In
Chapter: Connectors Internal Connectors 3.4.5 Aux-In & CD-In In addition to the external TRS connectors mentioned above, the CB1051 offers two internal 4 pin connectors (Foxconn HF1104E-P1), providing customers with even more possibilities to connect audio devices (analogue signals). Pinout Aux-in connector:... -
Page 37: S/Pdif
For digital audio signals an SPDIF interface is available, which can be accessed using an internal 2x3 pin IDC socket connector with a spacing of 2,54mm. Pinout SPDIF connector: Description Name Name Description ground SPDIFO SPDIF out 3.3 volt supply 3,3V 5 volt supply ground SPDIFI SPDIF in Beckhoff New Automation Technology CB1051 page 37... -
Page 38: Pci Interfaces
Internal Connectors 3.4.7 PCI interfaces There are three standard PCI slots available on the CB1051. Please note that due to the nature of the PCI bus some signals in the following table are different from one PCI slot to the other. This applies to the test signals (A4, B4), the interrupt signals (A6, A7, B7, B8), the clock signal (B16), the grant signal (A17), the request signal (B18), and the ID-select signal (A26). - Page 39 5 ground address/data 3 address/data 2 ground address/data 0 address/data 1 5 volt supply 5 volt supply reserved 5 volt supply 5 volt supply 5 volt supply 5 volt supply 5 volt supply Beckhoff New Automation Technology CB1051 page 39...
-
Page 40: Pci-Express Interfaces (X1)
Internal Connectors 3.4.8 PCI-express interfaces (x1) The CB1051 board has three slots for PCIe-x1 expansion cards. Please note that some signals in the following table are different from one PCIe slot to the other. This applies to the clock signals (A13, A14), the receive signals (A16, A17), and the transmit signals (B14, B15). -
Page 41: Pci-Express Interface (X16)
Chapter: Connectors 3.4.9 PCI-express interface (x16) One slot for PCI-express-x16-cards makes the expansion options on the CB1051 complete. You can use this slot either for PCIe-x16 graphic adapters or for ADD2 cards (SDVO). PCIe-x4 devices will not work with this slot. - Page 42 14 + ground PET14# transmit lane 14 - receive lane 14 + PER14 ground receive lane 14 - PER14# ground ground PET15 transmit lane 15 + ground PET15# transmit lane 15 - page 42 Beckhoff New Automation Technology CB1051...
- Page 43 SDVOB-BLUE# SDVO_FLDSTALL PER2 SDVO_FLDSTALL# PER2# PET3 SDVOB-CLK PET3# SDVOB-CLK# PRSNT2# SDVO-DAT PET4 SDVOC-RED PET4# SDVOC-RED# PET5 SDVOC-GREEN PET5# SDVOC-GREEN# SDVOC_INT PER5 SDVOC_INT# PER5# PET6 SDVOC_BLUE PET6# SDVOC_BLUE# PET7 SDVOC_CLK PET7# SDVOC_CLK# PRSNT2# SDVO+PCIe Beckhoff New Automation Technology CB1051 page 43...
-
Page 44: Smb/I2C
Internal Connectors 3.4.10 SMB/I2C The CB1051 can communicate with external devices via the SMBus protocol or the I2C protocol. The signals for these protocols are available through a 2x5 pin connector (JST B10B-PHDSSLFSN, mating connector: PHDR-10VS). The SMBus signals are processed by the ICH chip (Intel 82801), the I2C signals are processed by the SIO1 unit (Winbond W83627). -
Page 45: Fan Connectors
Four 3 pin connectors are available for controlling and monitoring external fans (12 volt). For the monitoring the fans must provide a corresponding speed signal. Pinout fan connector: Name Description ground 12 volt supply regulated TACHO fan monitoring signal Beckhoff New Automation Technology CB1051 page 45... -
Page 46: Jumper Settings
If you reset the CMOS this does not only bring all settings made in BIOS setup back to default values, it also clears the date and time information stored in CMOS. So don't forget that, after the Clear CMOS procedure, you will have to set the clock again. page 46 Beckhoff New Automation Technology CB1051... -
Page 47: Bios Select
3.5.2 BIOS Select The CB1051 has two firmware hubs which makes it possible to store different BIOS versions in each hub. If you then want to change from one BIOS to the other the "BIOS Select" jumper must be used. In the default configuration this jumper is open which means that BIOS 1 is active. -
Page 48: Jumper: Keyboard Power (Kbpwr)
VCC or standby power supply SVCC. You can switch between the two by using the KBPWR jumper. For VCC you need to short pins 1 and 2, for SVCC please short pins 2 and 3. page 48 Beckhoff New Automation Technology CB1051... -
Page 49: Bios Settings
(usually somewhere above the disabled item on the same screen). Use the arrow buttons to navigate from one item to another. For selecting an item press Enter which will open either a sub menu or a dialog screen. Beckhoff New Automation Technology CB1051 page 49... -
Page 50: Standard Cmos Features
Options: All Errors / No Errors / All, But Keyboard / All, But Diskette / All, But Disk/Key ü Base Memory Options: none ü Extended Memory Options: none ü Total Memory Options: none page 50 Beckhoff New Automation Technology CB1051... -
Page 51: Ide Channel 0 Master/Slave
Options: CHS / LBA / Large / Auto ü Capacity Options: none ü Cylinder Options: none ü Head Options: none ü Precomp Options: none ü Landing Zone Options: none ü Sector Options: none Beckhoff New Automation Technology CB1051 page 51... -
Page 52: Advanced Bios Features
Floppy / LS120 / Hard Disk / CDROM / ZIP100 / USB-FDD / USB-ZIP / USB-CDROM / LAN / Disabled ü Boot Other Device Options: Enabled / Disabled ü Boot Up Floppy Seek Options: Enabled / Disabled ü Boot Up NumLock Status Options: Off / On page 52 Beckhoff New Automation Technology CB1051... - Page 53 ü MPS Version Control For OS Options: 1.1 / 1.4 ü OS Select For DRAM > 64MB Options: Non-OS2 / OS2 ü HDD S.M.A.R.T. Capability Options: Enabled / Disabled ü Full Screen LOGO Show Options: Enabled / Disabled Beckhoff New Automation Technology CB1051 page 53...
-
Page 54: Cpu Feature
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults ü Delay Prior to Thermal Options: none ü C1E Function Options: Auto / Disabled ü Execute Disable Bit Options: Enabled / Disabled page 54 Beckhoff New Automation Technology CB1051... -
Page 55: Hard Disk Boot Priority
<Page Up>, <Page Down>, <+> and <-> have a different function than in the rest of the setup: They serve to move the items of the list up or down. Beckhoff New Automation Technology CB1051 page 55... -
Page 56: Advanced Chipset Features
ü Memory Hole At 15M-16M Options: Enabled / Disabled ü PCI Express Root Port Func Sub menu: see "PCI Express Root Port Function" (p. 58) ü PEG/Onchip VGA Control Options: Onchip VGA / PEG Port / Auto page 56 Beckhoff New Automation Technology CB1051... - Page 57 ü Panel Scaling Options: Auto / On / Off ü Panel Number Options: 640x480 / 800x600 / 1024x768 / 1280x1024 / 1400x1050 / 1600x1200 / 1280x768 / 1680x1050 / 1920x1200 / 1280x800 / 1440x900 Beckhoff New Automation Technology CB1051 page 57...
-
Page 58: Pci Express Root Port Function
Auto / Enabled / Disabled ü PCI Express Port 3 Options: Auto / Enabled / Disabled ü PCI Express Port 4 Options: Auto / Enabled / Disabled ü PCI-E Compliancy Mode Options: v1.0a / v1.0 page 58 Beckhoff New Automation Technology CB1051... -
Page 59: Integrated Peripherals
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults ü OnChip IDE Device Sub menu: see "OnChip IDE Devices" (p. 60) ü Onboard Device Sub menu: see "Onboard Devices" (p. 61) ü SuperIO Device Sub menu: see "SuperIO Devices" (p. 62) Beckhoff New Automation Technology CB1051 page 59... -
Page 60: Onchip Ide Devices
Disabled / Auto / Combined Mode / Enhanced Mode / SATA Only ü SATA PORT Speed Settings Options: Disabled / Force GEN I / Force GEN II ü PATA IDE Mode Options: none ü SATA Port Options: none page 60 Beckhoff New Automation Technology CB1051... -
Page 61: Onboard Devices
Enabled / Disabled ü Azalia/AC97 Audio Select Options: Auto / Azalia / AC97 Audio and Modem / AC97 Audio only / AC97 Modem only / All Disabled ü Touch Options: Enabled / Disabled Beckhoff New Automation Technology CB1051 page 61... -
Page 62: Superio Devices
Disabled / 378/IRQ7 / 278/IRQ5 / 3BC/IRQ7 ü Parallel Port Mode Options: SPP / EPP / ECP / ECP+EPP / Normal ü EPP Mode Select Options: EPP1.9 / EPP1.7 ü ECP Mode Use DMA Options: 1 / 3 page 62 Beckhoff New Automation Technology CB1051... - Page 63 Chapter: BIOS Settings ü Onboard Serial Port 3 Options: Disabled / 3F8/IRQ11 / 2F8/IRQ11 / 3E8/IRQ11 / 2E8/IRQ11 ü Onboard Serial Port 4 Options: Disabled / 3F8/IRQ10 / 2F8/IRQ10 / 3E8/IRQ10 / 2E8/IRQ10 Beckhoff New Automation Technology CB1051 page 63...
-
Page 64: Power Management Setup
Disabled / 1 Min / 2 Min / 4 Min / 8 Min / 12Min / 20 Min / 30 Min / 40 Min / 1 Hour ü HDD Power Down Options: Disabled / 1 Min ... 15 Min ü Soft-Off by PWR-BTTN Options: Instant-Off / Delay 4 Sec page 64 Beckhoff New Automation Technology CB1051... - Page 65 Enabled / Disabled ü FDD,COM,LPT Port Options: Enabled / Disabled ü PCI PIRQ[A-D]# Options: Enabled / Disabled ü HPET Support Options: Enabled / Disabled ü HPET Mode Options: 32-bit mode / 64-bit mode Beckhoff New Automation Technology CB1051 page 65...
-
Page 66: Pnp/Pci Configuration
Auto / 3 / 4 / 5 / 7 / 9 / 10 / 11 / 12 / 14 / 15 ü INT Pin 7 Assignment Options: Auto / 3 / 4 / 5 / 7 / 9 / 10 / 11 / 12 / 14 / 15 page 66 Beckhoff New Automation Technology CB1051... - Page 67 Auto / 3 / 4 / 5 / 7 / 9 / 10 / 11 / 12 / 14 / 15 ü Maximum Payload Size Options: 128 / 256 / 512 / 1024 / 2048 / 4096 (Note: The Intel® 945GM and SCH US15W chipsets only support an MPL of 128B) Beckhoff New Automation Technology CB1051 page 67...
-
Page 68: Irq Resources
ü IRQ-11 assigned to Options: PCI Device / Reserved ü IRQ-12 assigned to Options: PCI Device / Reserved ü IRQ-14 assigned to Options: PCI Device / Reserved ü IRQ-15 assigned to Options: PCI Device / Reserved page 68 Beckhoff New Automation Technology CB1051... -
Page 69: Pc Health Status
Options: none ü +3.3 V Options: none ü +5.0 V Options: none ü +1.5 V Options: none ü -5 V / -12 V Options: none ü 12 V / DDR VTT Options: none Beckhoff New Automation Technology CB1051 page 69... - Page 70 PC Health Status ü S3.3 V / S1.2 V Options: none ü VBatt Options: none ü Fan1 / 2 Speed Options: none ü Fan3 / 4 Speed Options: none ü Board Revision Options: none page 70 Beckhoff New Automation Technology CB1051...
-
Page 71: Frequency/Voltage Control
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults ü Auto Detect PCI Clk Options: Enabled / Disabled ü Spread Spectrum Options: -0.25% / -0.5% / -0.75% / -1% / +-0.125% / +-0.25% / +-0.375% / +-0.5% Beckhoff New Automation Technology CB1051 page 71... -
Page 72: Load Fail-Safe Defaults
Forgotten or lost passwords are a frequent problem. 4.14 Save & Exit Setup Settings are saved and the board is restarted. 4.15 Exit Without Saving This option leaves the setup without saving any changes. page 72 Beckhoff New Automation Technology CB1051... -
Page 73: Bios Update
If you try to update the BIOS using the wrong file the board will not start up again. Beckhoff New Automation Technology CB1051 page 73... -
Page 74: Mechanical Drawing
Chapter: Mechanical Drawing PCB: Mounting Holes 6 Mechanical Drawing 6.1 PCB: Mounting Holes page 74 Beckhoff New Automation Technology CB1051... -
Page 75: Technical Data
10 up to 58Hz, 0.075mm amplitude 58 up to 500Hz, 10m/s Storage: 5 up to 9Hz, 3.5mm amplitude 9 up to 500Hz, 10m/s Shipping: 5 up to 9Hz, 3.5mm amplitude 9 up to 500Hz, 10m/s, for packaged boards Beckhoff New Automation Technology CB1051 page 75... -
Page 76: Thermal Specifications
The end customer has the responsibility to ensure that the die temperature of the processor does not exceed 100°C. Permanent overheating may destroy the board! In case the temperature exceeds 100°C the environmental temperature must be reduced. Under certain circumstances sufficient air circulation must be provided. page 76 Beckhoff New Automation Technology CB1051... -
Page 77: Support And Service
Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products. The addresses of Beckhoff's branch offices and representatives around the world can be found on her internet pages: http://www.beckhoff.com You will also find further documentation for Beckhoff components there. -
Page 78: I Annex: Post-Codes
Test the interrupt Mask bits of IRQ-channel 1 of the interrupt controller 8259. Test the interrupt Mask bits of IRQ-channel 2 of the interrupt controller 8259 Testing the function of the interrupt controller (8259). Initialise EISA slot (if existent). page 78 Beckhoff New Automation Technology CB1051... - Page 79 4. Initialise the ACPI table (top of memory). 5. Initialise and link ROMs on ISA cards 6. Assignment of PCI-IRQs 7. Initialising of the advanced power management (APM) 8. Set back the IRQ-register. Beckhoff New Automation Technology CB1051 page 79...
- Page 80 Unpacking of the packed BIOS program codes into the random access memory. Copying of the BIOS program code into the shadow RAM (segments E000 & F000) via chipset hook. Testing of the CMOS read/write functionality Boot trial over boot-loader-routine (software-interrupt INT 19h) page 80 Beckhoff New Automation Technology CB1051...
-
Page 81: Annex: Resources
The exclusivity is not given and not possible on the PCI side. Address Function IRQ0 Timer IRQ1 PS/2 Keyboard IRQ2 (9) (COM3) IRQ3 COM1 IRQ4 COM2 IRQ5 (COM4) IRQ6 IRQ7 LPT1 IRQ8 IRQ9 IRQ10 IRQ11 Beckhoff New Automation Technology CB1051 page 81... -
Page 82: Dpci Devices
LAN Intel 82562GZ (ICH) ID27DC E SMB Devices Address Function 10-11 Standard slave address 60-61 Reserviert by BIOS 88-89 BIOS defined slave address A0-A1 DIMM 1 A2-A3 DIMM 2 A4-AF Reserved by BIOS D2-D3 IDTCV111PAG D4-D5 ICS9P952 page 82 Beckhoff New Automation Technology CB1051...
