Related Manuals for Beckhoff CB1056
Summary of Contents for Beckhoff CB1056
- Page 1 CB1056 Manual rev 0.5 Beckhoff Automation GmbH phone: +49 (0) 52 46/963-0 Eiserstr. 5 fax: +49 (0) 52 46/963-198 33415 Verl email: info@beckhoff.de Germany web: www.beckhoff.de...
-
Page 3: Table Of Contents
PCI interfaces ........................40 3.4.7 PCI-express Interfaces (x1) ....................42 3.4.8 PCI-express interface (x4) ....................43 3.4.9 PCI-express interface (x16) ....................45 3.4.10 SMB/I2C ..........................47 3.4.11 GPIO ........................... 48 3.4.12 Fan Connectors ........................49 Beckhoff New Automation Technology CB1056 page 3... - Page 4 Technical Data ..........................109 Electrical Data ........................... 109 Environmental Conditions ......................109 Thermal Specifications ......................110 Support and Service ........................111 Beckhoff's Branch Offices and Representatives ..............111 Beckhoff Headquarters ......................111 7.2.1 Beckhoff Support ......................111 7.2.2 Beckhoff Service ....................... 111 Annex: Post-Codes ..........................
- Page 5 Contents Interrupt ..............................114 PCI Devices ............................115 SMB Devices ............................115 Beckhoff New Automation Technology CB1056 page 5...
- Page 6 Chapter: Document History Notes on the Documentation page 6 Beckhoff New Automation Technology CB1056...
-
Page 7: Document History
LAN pinout in chapter 3.2.6 All company names, brand names, and product names referred to in this manual are registered or unregistered trademarks of their respective holders and are, as such, protected by national and international law. Beckhoff New Automation Technology CB1056 page 7... -
Page 8: Introduction
1.1.2 Copyright © This documentation is copyrighted. Any reproduction or third party use of this publication, whether in whole or in part, without the written permission of Beckhoff Automation GmbH, is forbidden. page 8 Beckhoff New Automation Technology CB1056... -
Page 9: Safety Instructions
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH. Beckhoff New Automation Technology CB1056... -
Page 10: Description Of Safety Symbols
If you do not adhere to the safety advise next to this symbol, there is obvious hazard to individuals, to environment, to materials, or to data. OTE OR POINTER This symbol indicates information that contributes to better understanding. page 10 Beckhoff New Automation Technology CB1056... -
Page 11: Essential Safety Measures
Read the operating instructions All users of the product must have read the operating instructions for the system they work with. System know-how All users must be familiar with all accessible functions of the product. Beckhoff New Automation Technology CB1056 page 11... -
Page 12: Functional Range
As far as the described motherboard was acquired as an integral component of an Industrial PC from Beckhoff Automation GmbH, this product description shall be applied only in limited scope. Only the contractually agreed specifications of the corresponding Industrial PC from Beckhoff Automation GmbH shall be relevant. -

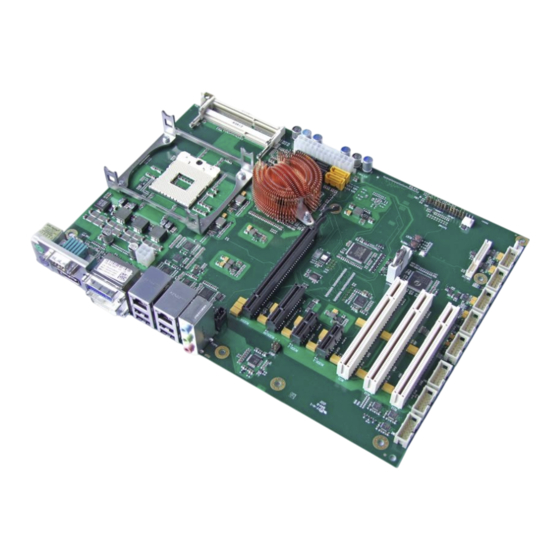

Page 13: Overview
Expansion cards can be added into three PCI slots, two PCIeX1 slots, one PCIeX4 slot and one PCIeX16 slots. The CB1056 also offers a wide range of internal and external connectors, such as four serial ports, two LAN connectors, 14 USB channels, six SATA connectors (two of which offering up to 6Gb/s), digital and analogue audio, VGA/DVI/HDMI connectors, DisplayPort connector, LCD connector, etc. - Page 14 TFT connection via LVDS 18/24/36/48 HDA compatible sound controller with SPDIF in and out 8x GPIO RTC with external CMOS battery ATX power connector incl. 2x2pin 12V connector Format: ATX (305mm x 220mm) page 14 Beckhoff New Automation Technology CB1056...
-
Page 15: Specifications And Documents
SMSC® Chip Description SCH3114 Datasheet www.smsc.com (NDA required) Realtek® Chip Description ALC885/889 Datasheet www.realtek.com.tw ICS® Chip Description ICS9LPRS501 Datasheet www.idt.com American Megatrends® Aptio™ Text Setup Environment (TSE) User Manual www.ami.com Beckhoff New Automation Technology CB1056 page 15... - Page 16 Chapter: Overview Specifications and Documents American Megatrends® Aptio™ 4.x Status Codes www.ami.com page 16 Beckhoff New Automation Technology CB1056...
-
Page 17: Connectors
Power Supply, System Connectors, CPU Chapter: Connectors 3 Connectors This section describes all the connectors found on the CB1056. AUTION For most interfaces, the cables must meet certain requirements. For instance, USB 2.0 requires twisted and shielded cables to reliably maintain full speed data rates. Restrictions on maximum cable length are also in place for many high speed interfaces and for power supply. - Page 18 Chapter: Connectors Power Supply, System Connectors, CPU Pinout ATX power connector 2x2: Name Name Description Description ground COREIN 12 volt supply ground COREIN 12 volt supply page 18 Beckhoff New Automation Technology CB1056...
-
Page 19: System
3.3 volt supply harddisk LED HDLED# reserved 5 volt supply 5 volt supply reserved ground IrDA transmit IRTX reserved ground BEEP speaker IrDA receive IRRX reserved IrDA control CIRRX ground 5 volt supply RESET# reset Beckhoff New Automation Technology CB1056 page 19... -
Page 20: Cpu Socket
Power Supply, System Connectors, CPU 3.1.3 CPU Socket The CB1056 board has an rPGA988B CPU socket accomodating certain versions of Intel®'s 2nd generation Core™ architecture CPUs. The rPGA988B is a ZIF (Zero Insertion Force) socket, which means that you can insert the processor without there being any resistance. There is only one orientation in which the processor will fit into the socket. -
Page 21: Cmos Battery
The board ships with a CR2032 battery holder (Renata VBH2032-1) and 3V battery. Alternatively, an external battery can be connected via a 2pin connector (JST B2B-EH-A, mating connector: EHR-2). Name Description BATT battery 3.3 volt ground Beckhoff New Automation Technology CB1056 page 21... -
Page 22: Back Panel Connectors
3.2.1 DVI Connectors The CB1056 has one DVI-I connector and one DVI-D connector combined in one component (Foxconn QH11121-DADF-4F). With an appropriate adapter, you can connect a CRT display to the DVI-I connector. - Page 23 HP_DETECT hot plug detect TMDSDAT0# DVI data 0 - TMDSDAT0 DVI data 0 + ground reserved reserved ground TMDS CLK DVI clock + TMDS CLK# DVI clock - reserved reserved reserved reserved ground Beckhoff New Automation Technology CB1056 page 23...
-
Page 24: Dvi/Hdmi
Back Panel Connectors 3.2.2 DVI/HDMI The CB1056 provides a second DVI interface which is realized as a 2x9pin header (Molex 87831-1820, mating connector e.g. Molex 0791098658-ND). Analog VGA is not available on this connector. However, an HDMI device can be connected. This connector and the DVI-D connector cannot be used simultaneously. -
Page 25: Display Port
2 - DPL2# DPL3 displayport lane 3 + ground DPL3# displayport lane 3 - ground ground displayport aux + DPAUX ground displayport aux - DPAUX# hotplug detect ground 3.3V 3.3V supply Beckhoff New Automation Technology CB1056 page 25... -
Page 26: Ps/2 Keyboard And Mouse
(S)VCC 5 volt supply mouse clock MCLK reserved Pinout PS/2 keyboard: Name Name Description Description keyboard data KDAT MDAT mouse data ground (S)VCC 5 volt supply keyboard clock KCLK MCLK mouse clock page 26 Beckhoff New Automation Technology CB1056... -
Page 27: Serial Interface Com1
The port address and the interrupt are set via the BIOS setup. Pinout serial port (DSUB connector): Name Name Description Description data carrier detect data set ready receive data request to send transmit data clear to send data terminal ready ring indicator ground Beckhoff New Automation Technology CB1056 page 27... -
Page 28: Usb And Lan
LAN2 channel 0 minus LAN2-1 LAN2 channel 1 plus LAN2-2 LAN2 channel 2 plus LAN2-2# LAN2 channel 2 minus LAN2-1# LAN2 channel 1 minus LAN2-3 LAN2 channel 3 plus LAN2-3# LAN2 channel 3 minus page 28 Beckhoff New Automation Technology CB1056... -
Page 29: Audio Connectors
Back Panel Connectors Chapter: Connectors 3.2.7 Audio Connectors Line-in, line-out, and microphone signals are provided in the form of three 3,5mm-TRS-connectors. Beckhoff New Automation Technology CB1056 page 29... -
Page 30: Sata And Memory
Chapter: Connectors SATA and Memory 3.3 SATA and Memory 3.3.1 SATA Interfaces The CB1056 provides six SATA interfaces. They all support transfer rates of 1,5GB/s and 3GB/s. Additionally, SATA1 & SATA2 support 6GB/s. Pinout SATA: Name Description ground SATATX SATA transmit +... -
Page 31: Memory
SATA and Memory Chapter: Connectors 3.3.2 Memory The CB1056 is equipped with two SO-DIMM204 sockets for DDR3-1066/1333/1600-RAM. For technical and mechanical reasons it is possible that particular memory modules cannot be employed. Please ask your distributor for recommended memory modules With currently available memory modules a memory extension up to 16 GByte is possible. - Page 32 DQ41 ground ground DQS5# data strobe 5 - data mask 5 DQM5 DQS5 data strobe 5 + ground ground data 42 DQ42 DQ46 data 46 data 43 DQ43 DQ47 data 47 ground ground page 32 Beckhoff New Automation Technology CB1056...
- Page 33 58 DQ58 DQ62 data 62 data 59 DQ59 DQ63 data 63 ground ground SPD address 0 EVENT# Event 3.3 volt supply 3.3V SMBus data SPD address 1 SMBus clock termination current termination current Beckhoff New Automation Technology CB1056 page 33...
-
Page 34: Internal Connectors
Pinout 2x5 pin connector USB x/y: Name Name Description Description 5 volt for USBx 5 volt for USBy minus channel USBx USBx# USBy# minus channel USBy plus channel USBx USBx USBy plus channel USBy ground ground reserved reserved page 34 Beckhoff New Automation Technology CB1056... -
Page 35: Serial Ports Com2 To Com4
The port address and the interrupt are set via the BIOS setup. Pinout COM connector: Name Name Description Description data carrier detect data set ready receive data request to send transmit data clear to send data terminal ready ring indicator ground 5 volt supply Beckhoff New Automation Technology CB1056 page 35... -
Page 36: Lvds
LVDS odd clock - TXO1C LVDS odd clock + TXO13# LVDS odd data 3 - TXO13 LVDS odd data 3 + ground 3.3V 3.3 volt supply DDC_CLK EDID clock for LCD DDC_DAT EDID data for LCD page 36 Beckhoff New Automation Technology CB1056... - Page 37 Internal Connectors Chapter: Connectors Name Description FP_3.3V switched 3.3 volt for display FP_BL switched 5 volt for backlight 5 volt supply Beckhoff New Automation Technology CB1056 page 37...
-
Page 38: Cd-In
Chapter: Connectors Internal Connectors 3.4.4 CD-In In addition to the external TRS connectors mentioned above, the CB1056 offers an internal 4 pin connector (Foxconn HF1104E-P1), providing customers with even more possibilities to connect audio devices (analogue signals). Pinout CD-in connector:... -
Page 39: S/Pdif
For digital audio signals an SPDIF interface is available, which can be accessed using an internal 2x3 pin IDC socket connector with a spacing of 2,54mm. Pinout SPDIF connector: Name Name Description Description ground SPDIFO SPDIF out 3.3 volt supply 3,3V 5 volt supply ground SPDIFI SPDIF in Beckhoff New Automation Technology CB1056 page 39... -
Page 40: Pci Interfaces
Internal Connectors 3.4.6 PCI interfaces There are three standard PCI slots available on the CB1056. Please note that due to the nature of the PCI bus some signals in the following table are different from one PCI slot to the other. This applies to the test signals (A4, B4), the interrupt signals (A6, A7, B7, B8), the clock signal (B16), the grant signal (A17), the request signal (B18), and the ID-select signal (A26). - Page 41 5 ground address/data 3 address/data 2 ground address/data 0 address/data 1 5 volt supply 5 volt supply reserved 5 volt supply 5 volt supply 5 volt supply 5 volt supply 5 volt supply Beckhoff New Automation Technology CB1056 page 41...
-
Page 42: Pci-Express Interfaces (X1)
Internal Connectors 3.4.7 PCI-express Interfaces (x1) The CB1056 board has two slots for PCIe-x1 expansion cards. When the motherboard PCIe-x4 slot (page 43) is occupied with a x4 device, then x1 slot 2 is de-activated. Please note that some signals in the following table are different from one PCIe slot to the other. This applies to the clock signals (A13, A14), the receive signals (A16, A17), and the transmit signals (B14, B15). -
Page 43: Pci-Express Interface (X4)
Chapter: Connectors 3.4.8 PCI-express interface (x4) The CB1056 has one slot for PCIe-x4 expansion cards. This slot also accomodates x1 expansion cards. When the slot is occupied with an x4 device, PCIe-x1 slot 2 (s. p. 42) is de-activated. Pinout PCI-express-x1 connector:... - Page 44 Description ground PET3 transmit lane 3 + ground PET3# transmit lane 3 - receive lane 3 + PER3 ground receive lane 3 - PER3# reserved ground PRSNT2# hot plug detect 2 reserved ground page 44 Beckhoff New Automation Technology CB1056...
-
Page 45: Pci-Express Interface (X16)
Internal Connectors Chapter: Connectors 3.4.9 PCI-express interface (x16) One slot for PCI-express-x16-cards makes the expansion options on the CB1056 complete. You can use this slot for PCIe-x16 graphic adapters. This slot also acommodates x1 or x4 expansion cards. Pinout PCI-express-x16 connector:... - Page 46 14 - PER14# ground ground PET15 transmit lane 15 + ground PET15# transmit lane 15 - receive lane 15 + PER15 ground receive lane 15 - PER15# reserved ground reserved page 46 Beckhoff New Automation Technology CB1056...
-
Page 47: Smb/I2C
Chapter: Connectors 3.4.10 SMB/I2C The CB1056 can communicate with external devices via the SMBus protocol or the I2C protocol. The signals for these protocols are available through a 2x5 pin connector (JST B10B-PHDSSLFSN, mating connector: PHDR-10VS). The SMBus signals are processed by the chipset, the I2C signals are processed by the SIO unit. -
Page 48: Gpio
GP input/output 12 GPIO12 reserved GP input/output 13 GPIO13 reserved GP input/output 14 GPIO14 reserved GP input/output 15 GPIO15 reserved GP input/output 16 GPIO16 reserved GP input/output 17 GPIO17 reserved ground ground page 48 Beckhoff New Automation Technology CB1056... -
Page 49: Fan Connectors
For this to work the fans must provide a corresponding speed signal. Pinout fan connector: Name Description ground 12 volt supply regulated TACHO fan monitoring signal The FAN4 connector doesn't have pin 3 connected (N/C). Beckhoff New Automation Technology CB1056 page 49... -
Page 50: Jumper Settings
CMOS. So don't forget that, after the Clear CMOS procedure, you will have to set the clock again. page 50 Beckhoff New Automation Technology CB1056... -
Page 51: Jumper: Keyboard Power (Kbpwr)
VCC or standby power supply SVCC. You can switch between the two by using the KBPWR jumper. For VCC you need to short pins 1 and 2, for SVCC please short pins 2 and 3. Beckhoff New Automation Technology CB1056 page 51... -
Page 52: Bios Settings
They do not represent the recommended settings or the default settings. Determination of the appropriate settings is dependent upon the particular application scenario in which the board is used. page 52 Beckhoff New Automation Technology CB1056... -
Page 53: Main
Name Options: none Brand String Options: none Frequency Options: none Processor ID Options: none Stepping Options: none Number of Processors Options: none Microcode Revision Options: none Beckhoff New Automation Technology CB1056 page 53... - Page 54 Total Memory Options: none Memory Frequency Options: none System Date Options: The system date can be adjusted here. System Time Options: The system time can be adjusted here. page 54 Beckhoff New Automation Technology CB1056...
-
Page 55: Advanced
Super IO Configuration Sub menu: see "Super IO Configuration" (page 70) H/W Monitor Sub menu: see "H/W Monitor" (page 72) Serial Port Console Redirection Sub menu: see "Serial Port Console Redirection" (page 74) Beckhoff New Automation Technology CB1056 page 55... - Page 56 Network Stack Sub menu: see "Network Stack" (page 76) CPU PPM Configuration Sub menu: see "CPU PPM Configuration" (page 77) Intel(R) Gigabit Network Connection Sub menu: see "Intel(R) GigabitNetworkConnection" (page 78) page 56 Beckhoff New Automation Technology CB1056...
-
Page 57: Pci Subsystem Settings
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc. Above 4G Decoding Options: Enabled / Disabled PCI Latency Timer Options: 32, 64,...224, 248 PCI Bus Clocks PCI Express Settings Sub menu: see "PCI Express Settings" (page 58) Beckhoff New Automation Technology CB1056 page 57... - Page 58 Options: Enabled / Disabled Link Training Retry Options: Disabled / 2 / 3 / 5 Link Training Timeout (uS) Options: 10...1000 Unpopulated Links Options: Keep Link ON / Disable Link page 58 Beckhoff New Automation Technology CB1056...
-
Page 59: Acpi Settings
Enable ACPI Auto Configuration Options: Enabled / Disabled Enable Hibernation Options: Enabled / Disabled ACPI Sleep State Options: Suspend Disabled / S1 (CPU Stop Clock) Lock Legacy Resources Options: Enabled / Disabled Beckhoff New Automation Technology CB1056 page 59... -
Page 60: Cpu Configuration
Processor Cores Options: none Intel HT Technology Options: none Intel VT-x Technology Options: none Intel SMX Technology Options: none 64-bit Options: none L1 Data Cache Options: none page 60 Beckhoff New Automation Technology CB1056... - Page 61 Execute Disable Bit Options: Enabled / Disabled Intel Virtualization Technology Options: Enabled / Disabled TCC Activation Offset Options: 0...15 Primary Plane Current value Options: 0...255 Secondary Plane Current value Options: 0...255 Beckhoff New Automation Technology CB1056 page 61...
-
Page 62: Sata Configuration
Software Preserve Options: none Port X Options: Enabled / Disabled Hot Plug Options: Enabled / Disabled External SATA Options: Enabled / Disabled Spin Up Device Options: Enabled / Disabled page 62 Beckhoff New Automation Technology CB1056... -
Page 63: Pch Fw Configurations
ME Firmware Type Options: none ME Firmware SKU Options: none MDES BIOS Status Code Options: Disabled / Enabled Firmware Update Configuration Sub menu: see "Firmware Update Configuration" (page 64) Beckhoff New Automation Technology CB1056 page 63... - Page 64 │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc. ME FW Image Re-Flash Options: Disabled / Enabled page 64 Beckhoff New Automation Technology CB1056...
-
Page 65: Amt Configuration
Options: Disabled / Enabled ASF Options: Disabled / Enabled Activate Remote Assistance Process Options: Disabled / Enabled USB Configure Options: Disabled / Enabled PET Progress Options: Disabled / Enabled Beckhoff New Automation Technology CB1056 page 65... - Page 66 Chapter: BIOS Settings Advanced AMT CIRA Timeout Options: none Watchdog Options: Disabled / Enabled OS Timer Options: none BIOS Timer Options: none page 66 Beckhoff New Automation Technology CB1056...
-
Page 67: Power Controller Options
Options: none ext. USB-Port Voltage Options: Off in S3-5 / by SVCC int. USB-Port Voltage Options: Off in S3-5 / by SVCC WatchDogTimer Mode Options: Normal Mode / Compatibility Mode Beckhoff New Automation Technology CB1056 page 67... - Page 68 Chapter: BIOS Settings Advanced WDT OSBoot Timeout Options: Disabled / 45 Seconds ... 255 Seconds page 68 Beckhoff New Automation Technology CB1056...
-
Page 69: Usb Configuration
5 sec / 10 sec / 20 sec Device reset time-out Options: 10 sec / 20 sec / 30 sec / 40 sec Device power-up delay Options: Auto / Manual Device power-up delay in seconds Options: 1..40 Beckhoff New Automation Technology CB1056 page 69... -
Page 70: Super Io Configuration
│ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc. Super IO Chip Options: none Serial Port X Configuration Sub menu: see "Serial Port Configuration" (page 71) page 70 Beckhoff New Automation Technology CB1056... - Page 71 Change Settings Options: Auto / IO=3F8h; IRQ=4 / IO=3F8h; IRQ=3, ...12 / IO=2F8h; IRQ=3, ...12 / IO=3E8h; IRQ=3, ...12 / IO=2E8h; IRQ=3, ...12 Device Mode Options: Normal / High Speed Beckhoff New Automation Technology CB1056 page 71...
-
Page 72: H/W Monitor
CPU FAN Speed Options: none AUX FAN Speed Options: none +1.05V Options: none VccCore Options: none +3.3V Options: none Vcc Options: none +12V Options: none page 72 Beckhoff New Automation Technology CB1056... - Page 73 Advanced Chapter: BIOS Settings VTR Options: none Vbat Options: none Beckhoff New Automation Technology CB1056 page 73...
-
Page 74: Serial Port Console Redirection
│ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc. Console Redirection Options: Enabled / Disabled Console Redirection Settings Sub menu: see "Console Redirection Settings" (page 75) page 74 Beckhoff New Automation Technology CB1056... - Page 75 Disabled / Enabled Resolution 100x31 Options: Disabled / Enabled Legacy OS Redirection Resolution Options: 80x24 / 80x25 Putty KeyPad Options: VT100 / LINUX / XTERMR6 / SCO / ESCN / VT400 Beckhoff New Automation Technology CB1056 page 75...
-
Page 76: Network Stack
│ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc. Network Stack Options: Disabled / Enabled Ipv4 PXE Support Options: Disabled / Enabled Ipv6 PXE Support Options: Disabled / Enabled page 76 Beckhoff New Automation Technology CB1056... -
Page 77: Cpu Ppm Configuration
Options: Disabled / Enabled Config TDP LOCK Options: Disabled / Enabled Long duration power limit Options: 0-255 Long duration power maintained Options: 1-120 Short duration power limit Options: 0-255 Beckhoff New Automation Technology CB1056 page 77... -
Page 78: Intel(R) Gigabitnetworkconnection
Adapter PBA: Options: none Chip Type Options: none PCI Device ID Options: none PCI Bus:Device:Function Options: none Link Status Options: none Factory MAC Adress Options: none page 78 Beckhoff New Automation Technology CB1056... - Page 79 Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc. Link Speed Options: Auto Negotiated / 10Mbps Half / 10Mbps full / 100Mbps Half / 100Mbps Full Wake On LAN Options: Enabled / Disabled Beckhoff New Automation Technology CB1056 page 79...
-
Page 80: Chipset
└─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc. PCH-IO Configuration Sub menu: see "PCH-IO Configuration" (page 81) System Agent (SA) Configuration Sub menu: see "System Agent (SA) Configuration" (page 88) page 80 Beckhoff New Automation Technology CB1056... -
Page 81: Pch-Io Configuration
PCH LAN Controller Options: Disabled / Enabled LAN1 MAC address Options: none Wake on LAN Options: Disabled / Enabled Second LAN Controller Options: Disabled / Enabled LAN2 MAC address Options: none Beckhoff New Automation Technology CB1056 page 81... - Page 82 CLKRUN# Logic Options: Disabled SB CRID Options: Disabled / Enabled High Precision Timer Options: Disabled / Enabled Restore AC Power Loss Options: Power Off / Power On / Last State page 82 Beckhoff New Automation Technology CB1056...
- Page 83 DMI Link Extended Synch Control Options: Disabled / Enabled PCIe-USB Glitch W/A Options: Disabled / Enabled Subtractive Decode Options: Disabled PCI Express Root Port X Sub menu: see "PCI Express Settings" (page 84) Beckhoff New Automation Technology CB1056 page 83...
- Page 84 Disabled / Enabled CTO Options: Disabled / Enabled SEFE Options: Disabled / Enabled SENFE Options: Disabled / Enabled SECE Options: Disabled / Enabled PME SCI Options: Disabled / Enabled page 84 Beckhoff New Automation Technology CB1056...
- Page 85 Auto / Gen1 / Gen2 Extra Bus Reserved Options: 0...7 Reserved Memory Options: 1...20 Prefetchable Memory Options: 1...20 Reserved I/O Options: 4 / 8 / 12 / 16 / 20 Beckhoff New Automation Technology CB1056 page 85...
- Page 86 Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc. EHCI1 Options: Enabled EHCI2 Options: Enabled USB Ports Per-Port Disable Control Options: Disabled / Enabled USB Port #x Disable Options: Disabled / Enabled page 86 Beckhoff New Automation Technology CB1056...
- Page 87 Azalia Options: Disabled / Enabled / Auto Azalia PME Options: Disabled / Enabled Azalia Internal HDMI Codec Options: Disabled / Enabled Azalia HDMI codec Port X Options: Disabled / Enabled Beckhoff New Automation Technology CB1056 page 87...
-
Page 88: System Agent (Sa) Configuration
Options: Disabled / Enabled C-State Pre-Wake Options: Disabled / Enabled Graphics Configuration Sub menu: see "Graphics Configuration" (page 89) NB PCIe Configuration Sub menu: see "NB PCIe Configuration" (page 91) page 88 Beckhoff New Automation Technology CB1056... - Page 89 32M / 64M ... 480M / 512M / 1024M DVMT Total Gfx Mem Options: 128M / 256M / MAX Gfx Low Power Mode Options: Disabled / Enabled LCD Control Sub menu: see "LCD Control" (page 90) Beckhoff New Automation Technology CB1056 page 89...
- Page 90 LCD Panel Type Options: VBIOS Default / 640x480 LVDS ...1920x1080 LVDS / 2048x1536 LVDS Spread Spectrum Clock Chip Options: Off / Hardware / Software ALS Support Options: Disabled / Enabled page 90 Beckhoff New Automation Technology CB1056...
- Page 91 Sub menu: see "PEG Gen3 Root Port Preset Value for each Lane" (page 93) PEG Gen3 Endpoint Preset Value for each Lane Sub menu: see "PEG Gen3 Endpoint Preset Value each Lane" (page 94) Beckhoff New Automation Technology CB1056 page 91...
- Page 92 Disabled / Enabled Fast PEG Init Options: Disabled / Enabled RxCEM Loop back Options: Disabled / Enabled RxCEM Loop back lane Options: Lane 0...15 PCIe Gen3 RxCTLEp Setting Options: 0...15 page 92 Beckhoff New Automation Technology CB1056...
- Page 93 │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc. Gen3 Root Port Preset Value for each Lane Options: 1..11 Beckhoff New Automation Technology CB1056 page 93...
- Page 94 │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc. Gen3 Endpoint Preset Value each Lane Options: 0..11 page 94 Beckhoff New Automation Technology CB1056...
- Page 95 │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc. PEG Gen3 Endpoint Hint Value each Lane Options: 0..11 Beckhoff New Automation Technology CB1056 page 95...
- Page 96 │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc. PCIe Gen3 RxCTLEp Setting x Options: 0..15 page 96 Beckhoff New Automation Technology CB1056...
-
Page 97: Boot
Disabled / Enabled CSM16 Module Version Options: none GateA20 Active Options: Upon Request / Always INT9 Trap Response Options: Immediate / Postponed Boot mode select Options: Legacy / UEFI / DUAL Beckhoff New Automation Technology CB1056 page 97... - Page 98 Review or change the sequence of available boot devices Boot Option Priorities Options: Review or change the sequence of available boot devices CSM Parameters Sub menu: see "CSM Parameters" (page 99) page 98 Beckhoff New Automation Technology CB1056...
-
Page 99: Csm Parameters
Do not launch / UEFI only / Legacy only Launch Video OpROM policy Options: Do not launch / UEFI only / Legacy only Other PCI device ROM priority Options: UEFI OpROM / Legacy OpROM Beckhoff New Automation Technology CB1056 page 99... -
Page 100: Security
Options: Press [Enter] Secure Boot control Options: Disabled / Enabled Secure Boot Policy Sub menu: see "Secure Boot Policy" (page 101) Key Management Sub menu: see "Key Management" (page 102) page 100 Beckhoff New Automation Technology CB1056... -
Page 101: Secure Boot Policy
Always Execute / Always Deny / Allow Execute / Defer Execute / Deny Execute / Query User Fixed Media Options: Always Execute / Always Deny / Allow Execute / Defer Execute / Deny Execute / Query User Beckhoff New Automation Technology CB1056 page 101... -
Page 102: Key Management
Press [Enter] Delete the KEK Options: Press [Enter] Append an entry to KEK Options: Press [Enter] Set DB from File Options: Press [Enter] Get DB to File Options: Press [Enter] page 102 Beckhoff New Automation Technology CB1056... - Page 103 Press [Enter] Get DBX to File Options: Press [Enter] Delete the DBX Options: Press [Enter] Append an entry to DBX Options: Press [Enter] Install Factory Defaults Options: Press [Enter] Beckhoff New Automation Technology CB1056 page 103...
-
Page 104: Save & Exit
Restore Defaults Options: Press [Enter] Save as User Defaults Options: Press [Enter] Restore User Defaults Options: Press [Enter] Boot Override Options: Press [Enter] IBA GE Slot 00C8 v1381 Options: none page 104 Beckhoff New Automation Technology CB1056... -
Page 105: Bios-Update
If you try to update the BIOS using the wrong file the board will not start up again. Beckhoff New Automation Technology CB1056 page 105... -
Page 106: Mechanical Drawings
Chapter: Mechanical Drawings PCB: Mounting Holes 5 Mechanical Drawings 5.1 PCB: Mounting Holes page 106 Beckhoff New Automation Technology CB1056... -
Page 107: Pcb: Pin 1 Dimensions
PCB: Pin 1 Dimensions Chapter: Mechanical Drawings 5.2 PCB: Pin 1 Dimensions Beckhoff New Automation Technology CB1056 page 107... -
Page 108: Pcb: Die Center
Chapter: Mechanical Drawings PCB: Die Center 5.3 PCB: Die Center All dimensions are in mil (1 mil = 0,0254 mm) page 108 Beckhoff New Automation Technology CB1056... -
Page 109: Technical Data
9 up to 500Hz, 10m/s , for packaged boards AUTION Shock and vibration figures pertain to the motherboard alone and do not include additional components such as heat sinks, memory modules, cables etc. Beckhoff New Automation Technology CB1056 page 109... -
Page 110: Thermal Specifications
The end customer has the responsibility to ensure that the die temperature of the processor does not exceed 100°C. Permanent overheating may destroy the board! In case the temperature exceeds 100°C the environmental temperature must be reduced. Under certain circumstances sufficient air circulation must be provided. page 110 Beckhoff New Automation Technology CB1056... -
Page 111: Support And Service
Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products. The addresses of Beckhoff's branch offices and representatives around the world can be found on her internet pages: http://www.beckhoff.com You will also find further documentation for Beckhoff components there. - Page 112 Annex: Post-Codes page 112 Beckhoff New Automation Technology CB1056...
-
Page 113: I Annex: Post-Codes
(POST code card). The meaning of these codes is described in the document "Aptio™ 4.x Status Codes" by American Megatrends®, which can be downloaded from their website http://www.ami.com. The following additional OEM POST codes are generated: Description Code BIOS-API started PCA9535 started PWRCTRL-Firmware started Beckhoff New Automation Technology CB1056 page 113... -
Page 114: Annex: Resources
The exclusivity is not given and not possible on the PCI side. Function Address IRQ0 Timer IRQ1 PS/2 Keyboard IRQ2 (9) COM3 IRQ3 COM1 IRQ4 COM2 IRQ5 COM4 IRQ6 IRQ7 IRQ8 IRQ9 IRQ10 IRQ11 IRQ12 PS/2 Mouse IRQ13 page 114 Beckhoff New Automation Technology CB1056... -
Page 115: Pci Devices
Function Address 10-11 Standard slave address 40-41 GPIO 60-61 BIOS internal 70-73 POST code output 88-89 BIOS-defined slave address A0-A1 DIMM 1 A2-A3 DIMM 2 A4-AF BIOS internal B0-BF BIOS internal D2-D3 Clock Beckhoff New Automation Technology CB1056 page 115...
