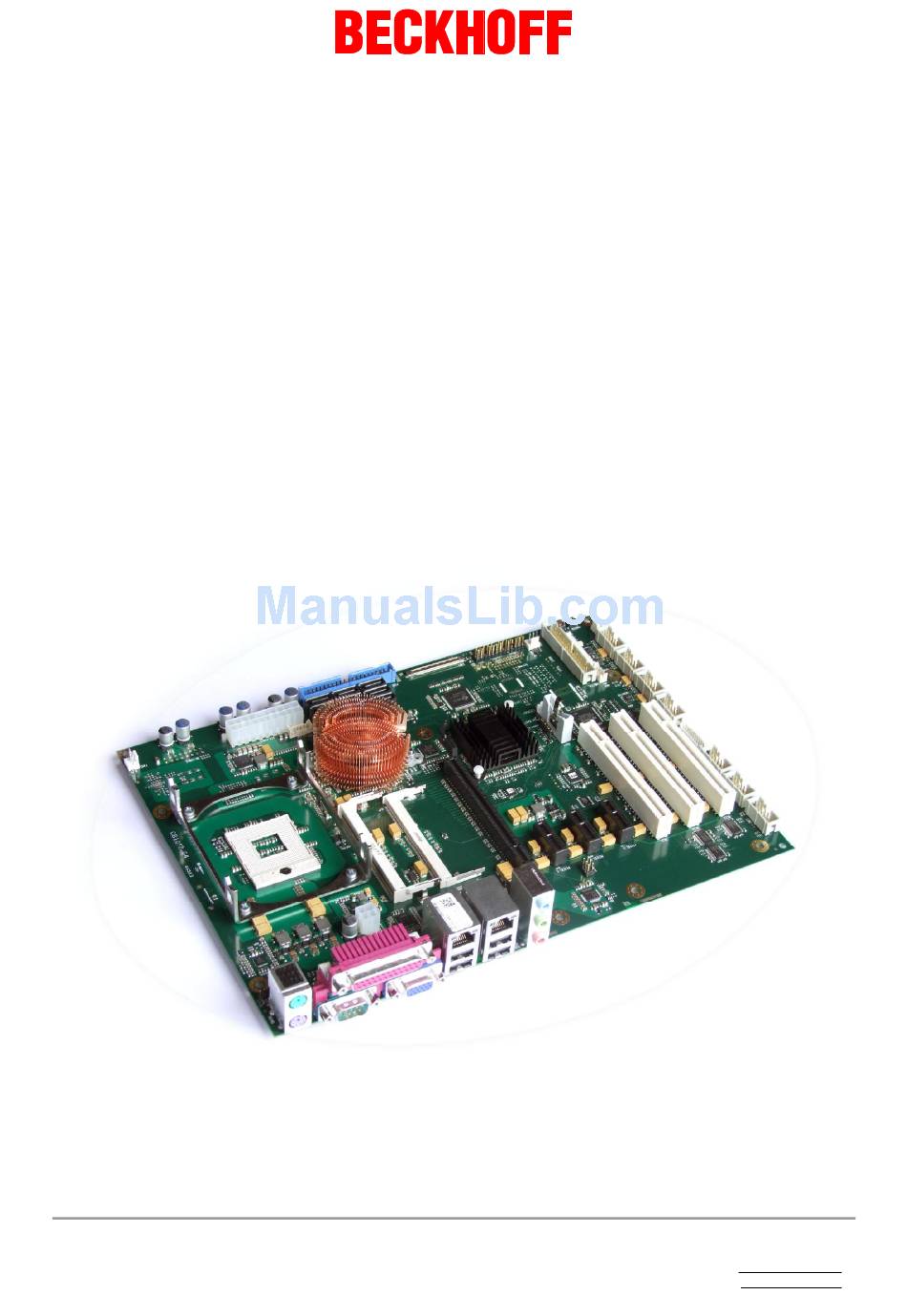

- Page 1 CB1052 Manual rev 0.1 ATX power supply Beckhoff Automation GmbH phone: +49 (0) 52 46/963-0 Eiserstr. 5 fax: +49 (0) 52 46/963-198 33415 Verl email: info@beckhoff.de Germany web: www.beckhoff.de...
-
Page 3: Table Of Contents
PCI interfaces ........................38 3.4.8 PCI-express interfaces (x1) ....................40 3.4.9 PCI-express interface (x16) ....................41 3.4.10 SMB/I2C ........................44 3.4.11 Fan Connectors ......................45 Jumper Settings ........................46 3.5.1 Clear CMOS........................46 Beckhoff New Automation Technology CB1052 page 3... - Page 4 PCB: Die Center........................78 Technical Data..........................79 Electrical Data ........................79 Environmental Conditions..................... 79 Thermal Specifications ......................80 Support and Service ........................81 Beckhoff's Branch Offices and Representatives..............81 Beckhoff Headquarters......................81 8.2.1 Beckhoff Support......................81 8.2.2 Beckhoff Service ......................81 Annex: Post-Codes........................
- Page 5 Contents PCI Devices..........................86 SMB Devices..........................86 Beckhoff New Automation Technology CB1052 page 5...
-
Page 6: Document History
All company names, brand names, and product names referred to in this manual are registered or unregistered trademarks of their respective holders and are, as such, protected by national and international law. page 6 Beckhoff New Automation Technology CB1052... -
Page 7: Introduction
1.1.2 Copyright © This documentation is copyrighted. Any reproduction or third party use of this publication, whether in whole or in part, without the written permission of Beckhoff Automation GmbH, is forbidden. Beckhoff New Automation Technology CB1052 page 7... -
Page 8: Safety Instructions
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH. 1.2.2 Description of Safety Symbols The following safety symbols are used in this documentation. -
Page 9: Essential Safety Measures
Read the operating instructions All users of the product must have read the operating instructions for the system they work with. System know-how All users must be familiar with all accessible functions of the product. Beckhoff New Automation Technology CB1052 page 9... -
Page 10: Functional Range
As far as the described motherboard was acquired as an integral component of an Industrial PC from Beckhoff Automation GmbH, this product description shall be applied only in limited scope. Only the contractually agreed specifications of the corresponding Industrial PC from Beckhoff Automation GmbH shall be relevant. -
Page 11: Overview

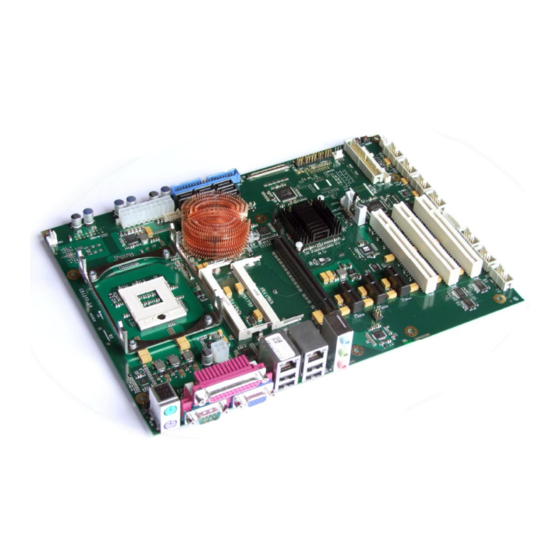

2 Overview 2.1 Features The CB1052 is a computer motherboard for industrial applications. Complying to the ATX form factor, it is equipped with an mPGA479M socket which can accomodate Intel® CPUs of the Celeron® M, Core™2 Duo and Core™2 Quad types. With its two SO-DIMM204 sockets memory can be added up to 8 GByte (DDR3-1066 max.). - Page 12 RTC with external CMOS battery ATX power supply (including 2x2pin 12V connector) Three PCI slots Three PCIe x1 slots One PCIe x16 slot Option: Touchscreen connector (4wire/5wire resistive) ATX form factor (305mm x 220mm) page 12 Beckhoff New Automation Technology CB1052...
-
Page 13: Specifications And Documents
82574L Datasheet www.intel.com § Intel® Chip Description 82567 Datasheet www.intel.com § Realtek® Chip Description ALC885/889 Datasheet www.realtek.com.tw § SMSC® Chip Description SCH3114 Datasheet www.smsc.com (NDA required) § IDT® Chip Description ICS9LPRS501 Datasheet www.idt.com Beckhoff New Automation Technology CB1052 page 13... -
Page 14: Connectors
5 volt supply PWRBTN# powerbutton ground ground 5 volt supply ground ground ground power on PWR_ON volt supply -5V standby supply 5V SVCC 5 volt supply 12 volt supply 5 volt supply page 14 Beckhoff New Automation Technology CB1052... - Page 15 Power Supply, System Connectors, CPU Chapter: Connectors Pinout ATX power connector 2x2: Description Name Name Description ground COREIN 12 volt supply ground COREIN 12 volt supply Beckhoff New Automation Technology CB1052 page 15...
-
Page 16: System
3.3 volt supply harddisk LED HDLED# reserved 5 volt supply 5 volt supply reserved ground IrDA transmit IRTX reserved ground BEEP speaker IrDA receive IRRX reserved IrDA control CIRRX ground 5 volt supply RESET# reset page 16 Beckhoff New Automation Technology CB1052... -
Page 17: Cpu Socket
Chapter: Connectors 3.1.3 CPU Socket The CB1052 board has an mPGA479M CPU socket accomodating certain versions of the following types of processors manufactured by Intel®: Celeron® M, Core™2 Duo and Core™2 Quad. The mPGA479M is a ZIF (Zero Insertion Force) socket, which means that you can insert the processor without there being any resistance. -
Page 18: Cmos Battery
The board ships with a CR2032 battery holder (Renata VBH2032-1) and 3V battery. Alternatively, an external battery can be connected via a 2pin connector (JST B2B-EH-A, mating connector: EHR-2). Name Description BATT battery 3.3 volt ground page 18 Beckhoff New Automation Technology CB1052... -
Page 19: Back Panel Connectors
(S)VCC 5 volt supply mouse clock MCLK reserved Pinout PS/2 keyboard: Description Name Name Description keyboard data KDAT MDAT mouse data ground (S)VCC 5 volt supply keyboard clock KCLK MCLK mouse clock Beckhoff New Automation Technology CB1052 page 19... -
Page 20: Parallel Port, Serial Ports, Vga
SLCT Pinout serial port (DSUB connector): Description Name Name Description data carrier detect data set ready receive data request to send transmit data clear to send data terminal ready ring indicator ground page 20 Beckhoff New Automation Technology CB1052... - Page 21 Chapter: Connectors Pinout VGA connector: Name Description GREEN green BLUE blue reserved ground ground ground ground 5 volt supply ground reserved DDDA DDC data HSYNC horizontal sync VSYNC vertical sync DDCK DDC clock Beckhoff New Automation Technology CB1052 page 21...
-
Page 22: Usb And Lan
LAN channel 0 minus LAN-1 LAN channel 1 plus LAN-1# LAN channel 1 minus LAN-2 LAN channel 2 plus LAN-2# LAN channel 2 minus LAN-3 LAN channel 3 plus LAN-3# LAN channel 3 minus page 22 Beckhoff New Automation Technology CB1052... -
Page 23: Audio Connectors
Back Panel Connectors Chapter: Connectors 3.2.4 Audio connectors Line-in, line-out, and microphone signals are provided in the form of three 3,5mm-TRS-connectors. Beckhoff New Automation Technology CB1052 page 23... -
Page 24: Sata, Pata, Fdd, Memory
PDDACK# ground interrupt signal PDIRQ reserved address bit 1 PDA1 PDMA66EN enable UDMA66 address bit 0 PDA0 PDA2 address bit 2 chip select signal 0 PDSC0# PDCS1# chip select signal 1 PHDLED ground page 24 Beckhoff New Automation Technology CB1052... -
Page 25: Sata Interfaces
3.3.2 SATA interfaces Eight SATA connectors are available to connect SATA devices. Pinout SATA: Name Description ground SATATX SATA transmit + SATATX# SATA transmit - ground SATARX SATA receive + SATARX# SATA receive - ground Beckhoff New Automation Technology CB1052 page 25... -
Page 26: Floppy Interface
MT0# motor enable 0 reserved DIR# direction reserved STP# step ground write data ground write enable ground TR0# track 0 ground WPRT# write protect ground RDATA# read data page 26 Beckhoff New Automation Technology CB1052... - Page 27 1 ground DIR# direction ground STP# step ground write data ground write enable ground TR0# track 0 ground WPRT# write protect reserved RDATA# read data ground HDSL# head select reserved disk change Beckhoff New Automation Technology CB1052 page 27...
-
Page 28: Memory
Chapter: Connectors SATA, PATA, FDD, Memory 3.3.4 Memory The CB1052 is equipped with two SO-DIMM204 sockets for DDR3-1066-RAM. For mechanical reasons it is possible that particular memory modules cannot be employed. Please ask your distributor for recommended memory modules With currently available memory modules a memory extension up to 8 GByte is possible. - Page 29 DQ41 ground ground DQS5# data strobe 5 - data mask 5 DQM5 DQS5 data strobe 5 + ground ground data 42 DQ42 DQ46 data 46 data 43 DQ43 DQ47 data 47 ground ground Beckhoff New Automation Technology CB1052 page 29...
- Page 30 58 DQ58 DQ62 data 62 data 59 DQ59 DQ63 data 63 ground ground SPD address 0 EVENT# Event 3.3 volt supply 3.3V SMBus data SPD address 1 SMBus clock termination current termination current page 30 Beckhoff New Automation Technology CB1052...
-
Page 31: Internal Connectors
Pinout 2x5 pin connector USB x/y: Description Name Name Description 5 volt for USBx 5 volt for USBy minus channel USBx USBx# USBy# minus channel USBy plus channel USBx USBx USBy plus channel USBy ground ground reserved reserved Beckhoff New Automation Technology CB1052 page 31... -
Page 32: Serial Ports Com2 To Com4
The port address and the interrupt are set via the BIOS setup. Pinout COM connector: Description Name Name Description data carrier detect data set ready receive data request to send transmit data clear to send data terminal ready ring indicator ground 5 volt supply page 32 Beckhoff New Automation Technology CB1052... -
Page 33: Lvds
LVDS odd clock - TXO1C LVDS odd clock + TXO13# LVDS odd data 3 - TXO13 LVDS odd data 3 + ground 3.3V 3.3 volt supply DDC_CLK EDID clock for LCD DDC_DAT EDID data for LCD Beckhoff New Automation Technology CB1052 page 33... - Page 34 Chapter: Connectors Internal Connectors Name Description FP_3.3V switched 3.3 volt for display FP_BL switched 5 volt for backlight 5 volt supply page 34 Beckhoff New Automation Technology CB1052...
-
Page 35: Tv-Out
Internal Connectors Chapter: Connectors 3.4.4 TV-Out The CB1052 board provides TV-out signals through an 2x5 pin connector (JST B10B-PHDSSLFSN, mating connector: PHDR-10VS). Pinout TV-out connector: Description Name Name Description TVDAC channel A TVDACA 3.3V 3.3 volt supply TVDAC channel B... -
Page 36: Cd-In
Chapter: Connectors Internal Connectors 3.4.5 CD-In In addition to the external TRS connectors mentioned above, the CB1052 offers an internal 4 pin connector (Foxconn HF1104E-P1), providing customers with even more possibilities to connect audio devices (analogue signals). Pinout CD-in connector:... -
Page 37: S/Pdif
For digital audio signals an SPDIF interface is available, which can be accessed using an internal 2x3 pin IDC socket connector with a spacing of 2,54mm. Pinout SPDIF connector: Description Name Name Description ground SPDIFO SPDIF out 3.3 volt supply 3,3V 5 volt supply ground SPDIFI SPDIF in Beckhoff New Automation Technology CB1052 page 37... -
Page 38: Pci Interfaces
Internal Connectors 3.4.7 PCI interfaces There are three standard PCI slots available on the CB1052. Please note that due to the nature of the PCI bus some signals in the following table are different from one PCI slot to the other. This applies to the test signals (A4, B4), the interrupt signals (A6, A7, B7, B8), the clock signal (B16), the grant signal (A17), the request signal (B18), and the ID-select signal (A26). - Page 39 5 ground address/data 3 address/data 2 ground address/data 0 address/data 1 5 volt supply 5 volt supply reserved 5 volt supply 5 volt supply 5 volt supply 5 volt supply 5 volt supply Beckhoff New Automation Technology CB1052 page 39...
-
Page 40: Pci-Express Interfaces (X1)
Internal Connectors 3.4.8 PCI-express interfaces (x1) The CB1052 board has three slots for PCIe-x1 expansion cards. Please note that some signals in the following table are different from one PCIe slot to the other. This applies to the clock signals (A13, A14), the receive signals (A16, A17), and the transmit signals (B14, B15). -
Page 41: Pci-Express Interface (X16)
Chapter: Connectors 3.4.9 PCI-express interface (x16) One slot for PCI-express-x16-cards makes the expansion options on the CB1052 complete. You can use this slot either for PCIe-x16 graphic adapters or for ADD2 cards (SDVO). PCIe-x4 devices will not work with this slot. - Page 42 14 + ground PET14# transmit lane 14 - receive lane 14 + PER14 ground receive lane 14 - PER14# ground ground PET15 transmit lane 15 + ground PET15# transmit lane 15 - page 42 Beckhoff New Automation Technology CB1052...
- Page 43 PER2 SDVO_FLDSTALL# PER2# PET3 SDVOB-CLK PET3# SDVOB-CLK# PRSNT2# SDVO-DAT PET4 SDVOC-RED PET4# SDVOC-RED# PET5 SDVOC-GREEN PET5# SDVOC-GREEN# SDVOC_INT PER5 SDVOC_INT# PER5# PET6 SDVOC_BLUE PET6# SDVOC_BLUE# PET7 SDVOC_CLK PET7# SDVOC_CLK# PRSNT2# SDVO+PCIe PRSNT2# DDPC-DAT Beckhoff New Automation Technology CB1052 page 43...
-
Page 44: Smb/I2C
Internal Connectors 3.4.10 SMB/I2C The CB1052 can communicate with external devices via the SMBus protocol or the I2C protocol. The signals for these protocols are available through a 2x5 pin connector (JST B10B-PHDSSLFSN, mating connector: PHDR-10VS). The SMBus signals are processed by the chipset, the I2C signals are processed by the SIO unit. -
Page 45: Fan Connectors
Four 3 pin connectors are available for controlling and monitoring external fans (12 volt). For the monitoring the fans must provide a corresponding speed signal. Pinout fan connector: Name Description ground 12 volt supply regulated TACHO fan monitoring signal The FAN4 connector doesn't have pin 3 connected (N/C). Beckhoff New Automation Technology CB1052 page 45... -
Page 46: Jumper Settings
If you reset the CMOS this does not only bring all settings made in BIOS setup back to default values, it also clears the date and time information stored in CMOS. So don't forget that, after the Clear CMOS procedure, you will have to set the clock again. page 46 Beckhoff New Automation Technology CB1052... -
Page 47: Jumper: Keyboard Power (Kbpwr)
VCC or standby power supply SVCC. You can switch between the two by using the KBPWR jumper. For VCC you need to short pins 1 and 2, for SVCC please short pins 2 and 3. Beckhoff New Automation Technology CB1052 page 47... -
Page 48: Bios Settings
(usually somewhere above the disabled item on the same screen). Use the arrow buttons to navigate from one item to another. For selecting an item press Enter which will open either a sub menu or a dialog screen. page 48 Beckhoff New Automation Technology CB1052... -
Page 49: Standard Cmos Features
Sub menu: see "PATA channel" (p. 51) ü Halt On Options: All Errors / No Errors / All, But Keyboard ü Base Memory Options: none ü Extended Memory Options: none ü Total Memory Options: none Beckhoff New Automation Technology CB1052 page 49... -
Page 50: Sata Channels
None / Auto ü Access Mode Options: Large / Auto ü Capacity Options: none ü Cylinder Options: none ü Head Options: none ü Precomp Options: none ü Landing Zone Options: none ü Sector Options: none page 50 Beckhoff New Automation Technology CB1052... -
Page 51: Pata Channel
None / Auto ü Access Mode Options: Large / Auto ü Capacity Options: none ü Cylinder Options: none ü Head Options: none ü Precomp Options: none ü Landing Zone Options: none ü Sector Options: none Beckhoff New Automation Technology CB1052 page 51... -
Page 52: Advanced Bios Features
ü Boot Other Device Options: Enabled / Disabled ü Boot Up NumLock Status Options: Off / On ü Gate A20 Option Options: Normal / Fast ü Typematic Rate Setting Options: Enabled / Disabled page 52 Beckhoff New Automation Technology CB1052... - Page 53 ü MPS Version Control For OS Options: 1.1 / 1.4 ü OS Select For DRAM > 64MB Options: Non-OS2 / OS2 ü Full Screen LOGO Show Options: Enabled / Disabled ü Summary Screen Show Options: Enabled / Disabled Beckhoff New Automation Technology CB1052 page 53...
-
Page 54: Cpu Feature
Disable / C2 / C3 / C4 / Deep C4 / C6 ü Execute Disable Bit Options: Enabled / Disabled ü GV3 PStates Options: Only maximum speed / All PStates ü Virtualization Technology Options: Enabled / Disabled page 54 Beckhoff New Automation Technology CB1052... -
Page 55: Hard Disk Boot Priority
<Page Up>, <Page Down>, <+> and <-> have a different function than in the rest of the setup: They serve to move the items of the list up or down. Beckhoff New Automation Technology CB1052 page 55... -
Page 56: Advanced Chipset Features
ü On-Chip Frame Buffer Size Options: 32MB / 64MB / 128MB ü DVMT Mode Options: Disable / Enable ü Total GFX Memory Options: 128MB / 256MB / MAX. ü PAVP Mode Options: Disable / PAVP-Lite / PAVP-High page 56 Beckhoff New Automation Technology CB1052... - Page 57 Advanced Chipset Features Chapter: BIOS Settings ü Boot Display Options: VBIOS Default / CRT ü Panel Scaling Options: Auto / Force / Off / Maintain Aspect Ratio Beckhoff New Automation Technology CB1052 page 57...
-
Page 58: Pci Express Root Port Function
Auto / Enabled / Disabled ü PCIe 4 -> LAN Options: Auto / Enabled / Disabled ü PCIe 5 -> JMicron Options: Auto / Enabled / Disabled ü PCI-E Compliancy Mode Options: v1.0a / v1.0 page 58 Beckhoff New Automation Technology CB1052... -
Page 59: Integrated Peripherals
Sub menu: see "OnChip IDE Devices" (p. 60) ü Onboard Device Sub menu: see "Onboard Devices" (p. 62) ü SuperIO Device Sub menu: see "SuperIO Devices" (p. 63) ü USB Device Setting Sub menu: see "USB Device Setting" (p. 64) Beckhoff New Automation Technology CB1052 page 59... -
Page 60: Onchip Ide Devices
Auto / Mode 0 / Mode 1 / Mode 2 / Mode 3 / Mode 4 ü IDE Secondary Master UDMA Options: Disabled / Auto ü IDE Secondary Slave UDMA Options: Disabled / Auto page 60 Beckhoff New Automation Technology CB1052... - Page 61 Integrated Peripherals Chapter: BIOS Settings ü SATA Mode Options: IDE / RAID / AHCI ü LEGACY Mode Support Options: Enabled / Disabled Beckhoff New Automation Technology CB1052 page 61...
-
Page 62: Onboard Devices
PCIe-LAN is controlled as PCI Express Port 4 ↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults ü HD Audio Options: Auto / Disabled ü ICH9-LAN Options: Enabled / Disabled page 62 Beckhoff New Automation Technology CB1052... -
Page 63: Superio Devices
ü Parallel Port Mode Options: SPP / EPP1.9 + SPP / ECP / EPP1.9 + ECP / PRINTER / EPP1.7 + SPP / EPP1.7 + ü ECP Mode Use DMA Options: 1 / 3 Beckhoff New Automation Technology CB1052 page 63... -
Page 64: Usb Device Setting
ü USB 2.0 Controller Options: Enabled / Disabled ü USB Operation Mode Options: Full/Low Speed / High Speed ü USB Keyboard Function Options: Enabled / Disabled ü USB Storage Function Options: Enabled / Disabled page 64 Beckhoff New Automation Technology CB1052... -
Page 65: Power Management Setup
Options: No / Yes ü Suspend Type Options: Stop Grant / PwrOn Suspend ü MODEM Use IRQ Options: NA / 3 / 4 / 5 / 7 / 9 / 10 / 11 Beckhoff New Automation Technology CB1052 page 65... - Page 66 ü PCI PIRQ[A-D]# Options: Enabled / Disabled ü HPET Support Options: Enabled / Disabled ü HPET Mode Options: 32-bit mode / 64-bit mode ü Intel DTS Feature Sub menu: see "Intel DTS Feature" (p. 68) page 66 Beckhoff New Automation Technology CB1052...
-
Page 67: Pci Express Pm Function
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults ü PEG Port ASPM Options: Disabled / L0s / L1/L0s ü Root Port ASPM Options: Disabled / L0s / L1 / L1/L0s ü DMI Port ASPM Options: Enabled / Disabled Beckhoff New Automation Technology CB1052 page 67... -
Page 68: Intel Dts Feature
ü Critical Trip Point Options: POR / 15°C / 23°C / 31°C / 39°C / 47°C / 55°C / 63°C / 71°C / 79°C / 87°C / 95°C / 103°C / 111°C / 119°C / 127°C page 68 Beckhoff New Automation Technology CB1052... -
Page 69: Pnp/Pci Configuration
Auto / 3 / 4 / 5 / 7 / 9 / 10 / 11 / 12 / 14 / 15 ü INT Pin 7 Assignment Options: Auto / 3 / 4 / 5 / 7 / 9 / 10 / 11 / 12 / 14 / 15 Beckhoff New Automation Technology CB1052 page 69... - Page 70 ü INT Pin 8 Assignment Options: Auto / 3 / 4 / 5 / 7 / 9 / 10 / 11 / 12 / 14 / 15 ü Maximum Payload Size Options: none page 70 Beckhoff New Automation Technology CB1052...
-
Page 71: Irq Resources
ü IRQ-11 assigned to Options: PCI Device / Reserved ü IRQ-12 assigned to Options: PCI Device / Reserved ü IRQ-14 assigned to Options: PCI Device / Reserved ü IRQ-15 assigned to Options: PCI Device / Reserved Beckhoff New Automation Technology CB1052 page 71... -
Page 72: Pc Health Status
ü +5 V Options: none ü +12 V Options: none ü VBatt Options: none ü Fan1 Speed Options: none ü Fan2 Speed Options: none ü Fan3 Speed Options: none ü Board Revision Options: none page 72 Beckhoff New Automation Technology CB1052... -
Page 73: Frequency/Voltage Control
Phoenix – AwardBIOS CMOS Setup Utility Frequency / Voltage Control Spread Spectrum [Disabled] Item Help ↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults ü Spread Spectrum Options: Enabled / Disabled Beckhoff New Automation Technology CB1052 page 73... -
Page 74: Load Fail-Safe Defaults
Forgotten or lost passwords are a frequent problem. 4.14 Save & Exit Setup Settings are saved and the board is restarted. 4.15 Exit Without Saving This option leaves the setup without saving any changes. page 74 Beckhoff New Automation Technology CB1052... -
Page 75: Bios Update
If you try to update the BIOS using the wrong file the board will not start up again. Beckhoff New Automation Technology CB1052 page 75... -
Page 76: Mechanical Drawing
Chapter: Mechanical Drawing PCB: Mounting Holes 6 Mechanical Drawing 6.1 PCB: Mounting Holes A true dimensioned drawing can be found in the PC/104 specification. All dimensions are in mil (1 mil = 0,0254 mm) page 76 Beckhoff New Automation Technology CB1052... -
Page 77: Pcb: Pin 1 Dimensions
PCB: Pin 1 Dimensions Chapter: Mechanical Drawing 6.2 PCB: Pin 1 Dimensions All dimensions are in mil (1 mil = 0,0254 mm) Beckhoff New Automation Technology CB1052 page 77... -
Page 78: Pcb: Die Center
Chapter: Mechanical Drawing PCB: Die Center 6.3 PCB: Die Center All dimensions are in mil (1 mil = 0,0254 mm) page 78 Beckhoff New Automation Technology CB1052... -
Page 79: Technical Data
9 up to 500Hz, 10m/s , for packaged boards AUTION Shock and vibration figures pertain to the motherboard alone and do not include additional components such as heat sinks, memory modules, cables etc. Beckhoff New Automation Technology CB1052 page 79... -
Page 80: Thermal Specifications
The end customer has the responsibility to ensure that the die temperature of the processor does not exceed 100°C. Permanent overheating may destroy the board! In case the temperature exceeds 100°C the environmental temperature must be reduced. Under certain circumstances sufficient air circulation must be provided. page 80 Beckhoff New Automation Technology CB1052... -
Page 81: Support And Service
Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products. The addresses of Beckhoff's branch offices and representatives around the world can be found on her internet pages: http://www.beckhoff.com You will also find further documentation for Beckhoff components there. -
Page 82: I Annex: Post-Codes
Test the interrupt Mask bits of IRQ-channel 1 of the interrupt controller 8259. Test the interrupt Mask bits of IRQ-channel 2 of the interrupt controller 8259 Testing the function of the interrupt controller (8259). Initialise EISA slot (if existent). page 82 Beckhoff New Automation Technology CB1052... - Page 83 4. Initialise the ACPI table (top of memory). 5. Initialise and link ROMs on ISA cards 6. Assignment of PCI-IRQs 7. Initialising of the advanced power management (APM) 8. Set back the IRQ-register. Beckhoff New Automation Technology CB1052 page 83...
- Page 84 Unpacking of the packed BIOS program codes into the random access memory. Copying of the BIOS program code into the shadow RAM (segments E000 & F000) via chipset hook. Testing of the CMOS read/write functionality Boot trial over boot-loader-routine (software-interrupt INT 19h) page 84 Beckhoff New Automation Technology CB1052...
-
Page 85: Annex: Resources
The exclusivity is not given and not possible on the PCI side. Address Function IRQ0 Timer IRQ1 PS/2 Keyboard IRQ2 (9) COM3 IRQ3 COM1 IRQ4 COM2 IRQ5 COM4 IRQ6 IRQ7 LPT1 IRQ8 IRQ9 IRQ10 IRQ11 Beckhoff New Automation Technology CB1052 page 85... -
Page 86: Pci Devices
PCI Slot 3 E SMB Devices Address Function 10-11 Standard slave address 60-61 Reserved by BIOS 88-89 BIOS defined slave address A0-A1 DIMM 1 A2-A3 DIMM 2 A4-AF Reserved by BIOS D2-D3 ICS9LPRS501 page 86 Beckhoff New Automation Technology CB1052...
