@ptitude Observer Monitor or Analyst IMx Service login computer to an existing
database for a control or processing system, if desired. @ptitude Observer Monitor or
Analyst IMx Service, @ptitude Observer or Analyst clients and the database can be
separated from each other as long as they are on the same network where ODBC calls
can travel freely.
It is also possible to connect different types of on-line units in the same network, for
example, IMx-S together with other IMx units and/or MasCon systems.

IMx-S Unit

IMx-S 16
•
Up to 16 analogue channels.
•
Up to 8 digital sensors, where 4 of the digital input channels are configurable for all
standard trigger sensors and 4 channels for square pulses with trigger level 12 to
24 V.
•
Each IMx-S 16 unit has 8 MB flash memory with the following storage capacity:
–
–
–
SKF Multilog On-Line System IMx-S
User Manual – Revision S
Figure 1 - 2.

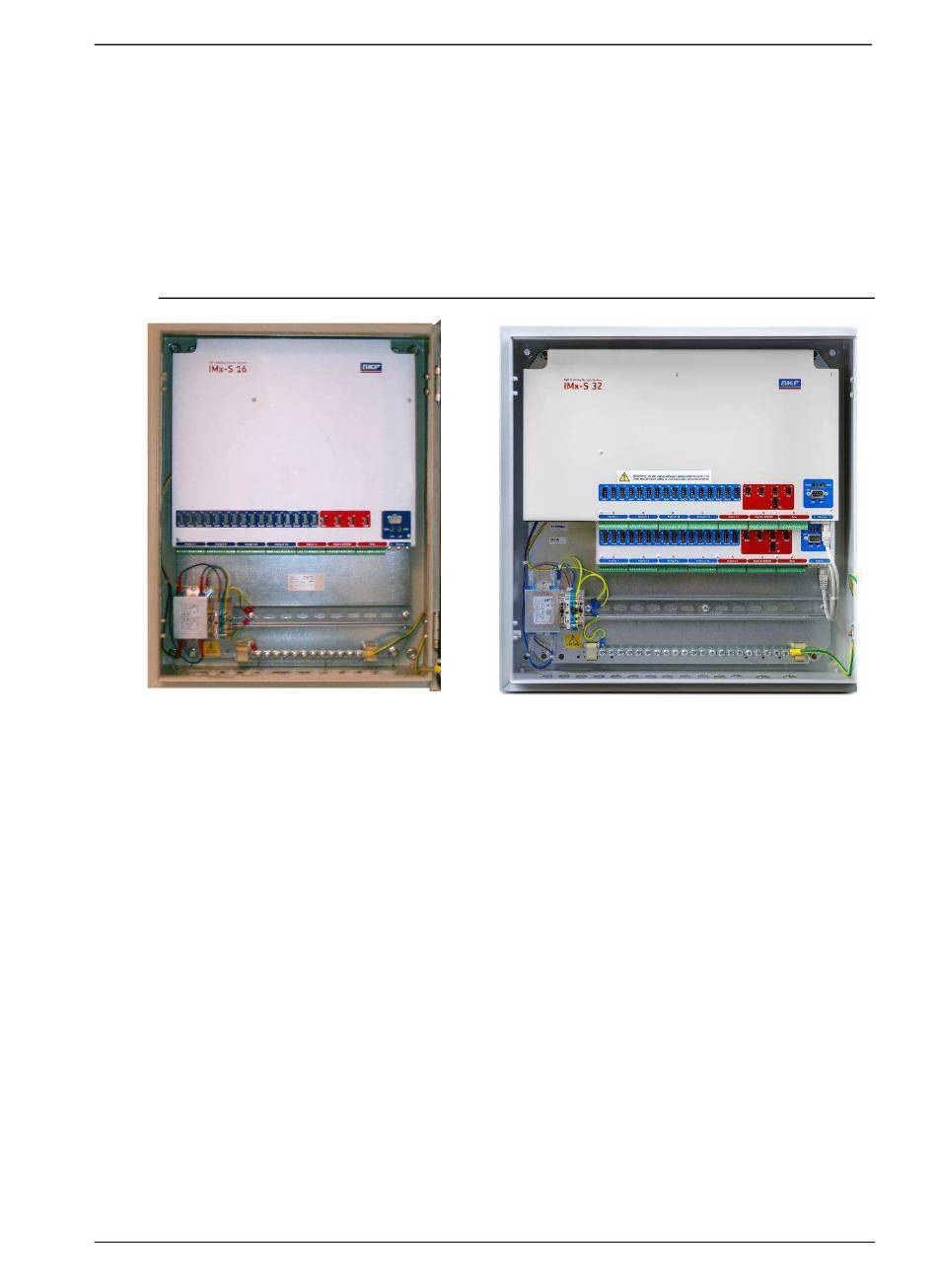

SKF Multilog On-line System IMx-S 16 (left) and IMx-S 32 (right).
2 MB for firmware, configuration files, etc.
2 MB for trend value buffer.
About 13 000 vibration trend values can be buffered.
Speed and process data use half the space of vibration.
4 MB for spectra and time signal buffer.
About 250 spectra using 1 600 lines with phase and time signal can be
buffered.
If more lines are used, the number of spectra is reduced.
