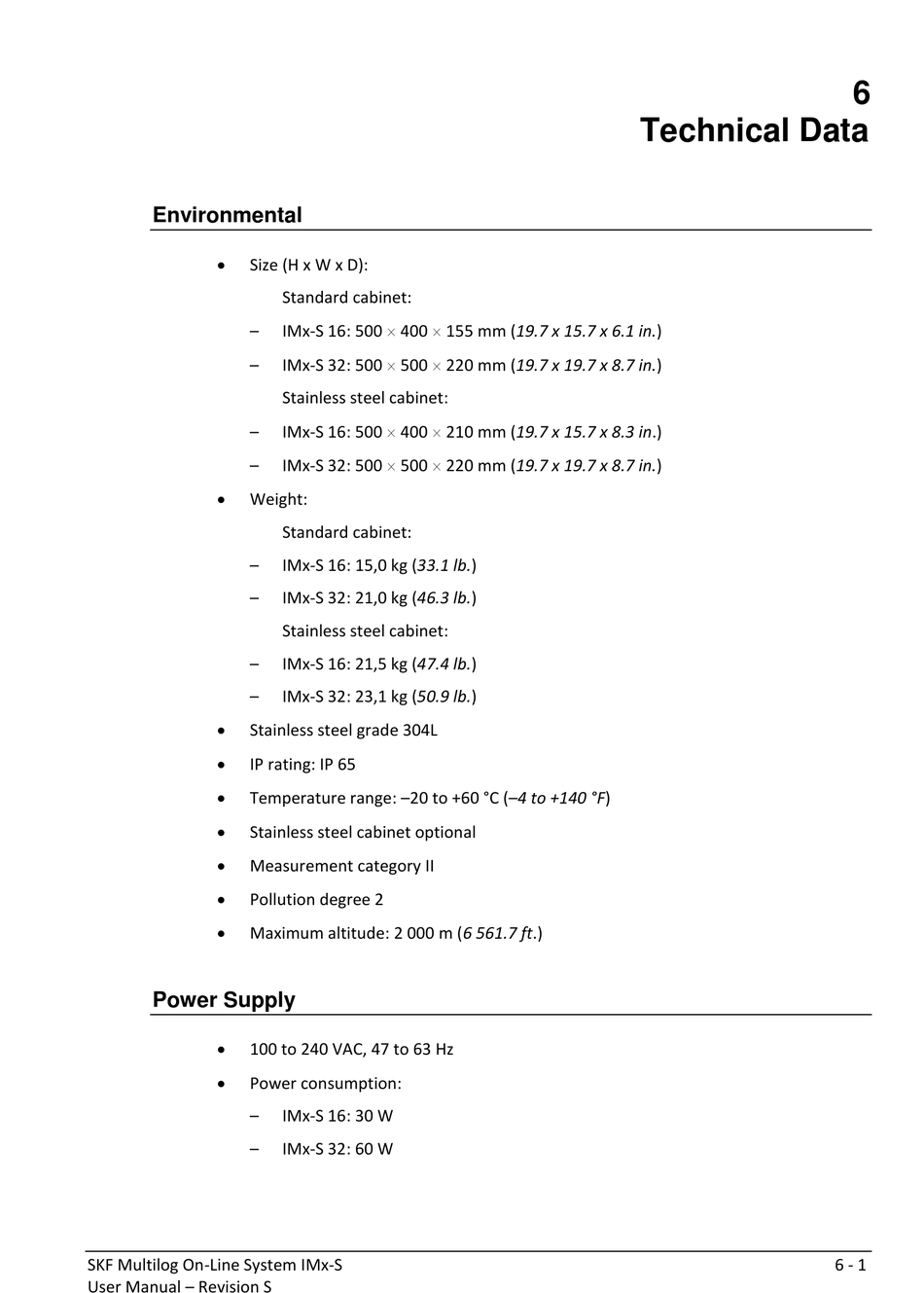

Technical Data; Environmental; Power Supply - SKF Multilog IMx-S Series User Manual

Environmental

•
Size (H x W x D):
–
–
–
–
•
Weight:
–
–
–
–
•
Stainless steel grade 304L
•
IP rating: IP 65
•
Temperature range: –20 to +60 °C (–4 to +140 °F)
•
Stainless steel cabinet optional
•
Measurement category II
•
Pollution degree 2
•
Maximum altitude: 2 000 m (6 561.7 ft.)

Power Supply

•
100 to 240 VAC, 47 to 63 Hz
•
Power consumption:
–
–
SKF Multilog On-Line System IMx-S
User Manual – Revision S
Standard cabinet:
IMx-S 16: 500  400  155 mm (19.7 x 15.7 x 6.1 in.)
IMx-S 32: 500  500  220 mm (19.7 x 19.7 x 8.7 in.)
Stainless steel cabinet:
IMx-S 16: 500  400  210 mm (19.7 x 15.7 x 8.3 in.)
IMx-S 32: 500  500  220 mm (19.7 x 19.7 x 8.7 in.)
Standard cabinet:
IMx-S 16: 15,0 kg (33.1 lb.)
IMx-S 32: 21,0 kg (46.3 lb.)
Stainless steel cabinet:
IMx-S 16: 21,5 kg (47.4 lb.)
IMx-S 32: 23,1 kg (50.9 lb.)
IMx-S 16: 30 W
IMx-S 32: 60 W

Technical Data
