WisyCom MRK960 User Manual page 8

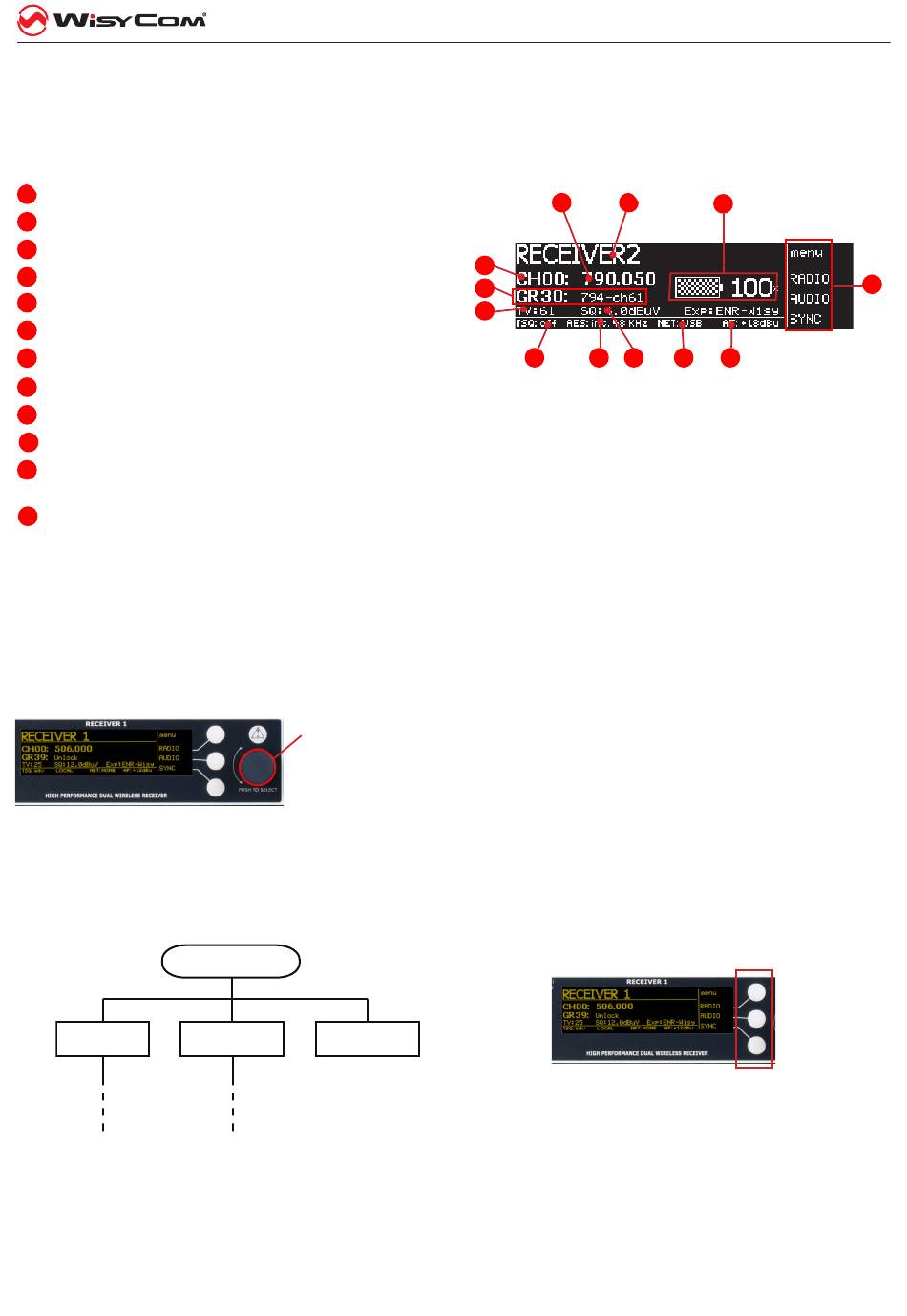

LCD display: Main view
All the basic information on the receiver status are readable in the main view of the LCD display.
The main view has the following info:
1 receiver name,
2 current tuning frequency
current channel number
3
current group number and group name
4
5
TV channel used for the current frequency
6
Tone Squelch current setup
7
AES work clock status (since fw 1.1.0.H or above)
Squelch level (microVolt)
8
9 NET connection to a host PC (USB or Ethernet)
Analog audio output level at nominal FM deviation
10
status of the output lines (audio line, audio com, gpi) and detection of the digital data carrier (i.e. transmit-
11
ter battery data carrier or tone squelch),
transmitter battery charge status.
12
Thru the main menu on the LCD display and the LED bars for the RF level and modulation the user has the
complete monitoring in real time of the wireless channel in use.
Menu tree
To access the configuration menu of the receiver is necessary to press the rotary knob (at the right of the dis-
to the right of the display (see picture hereafter).
Press the knob
RADIO
Pag. 8
play). This allows you to access the main menu.
Pressing firt the rotary know shows a hidden window (area 11 the image
of the main view) with three main headings: "RADIO", "AUDIO", "SYNC".
To activate one of the items in the menu, press the corresponding button
AUDIO SYNC
MRK960
2 1
3
4
5
6 7 8
dual true diversity receiver
12
9 10
11
