WisyCom MRK960 User Manual page 20

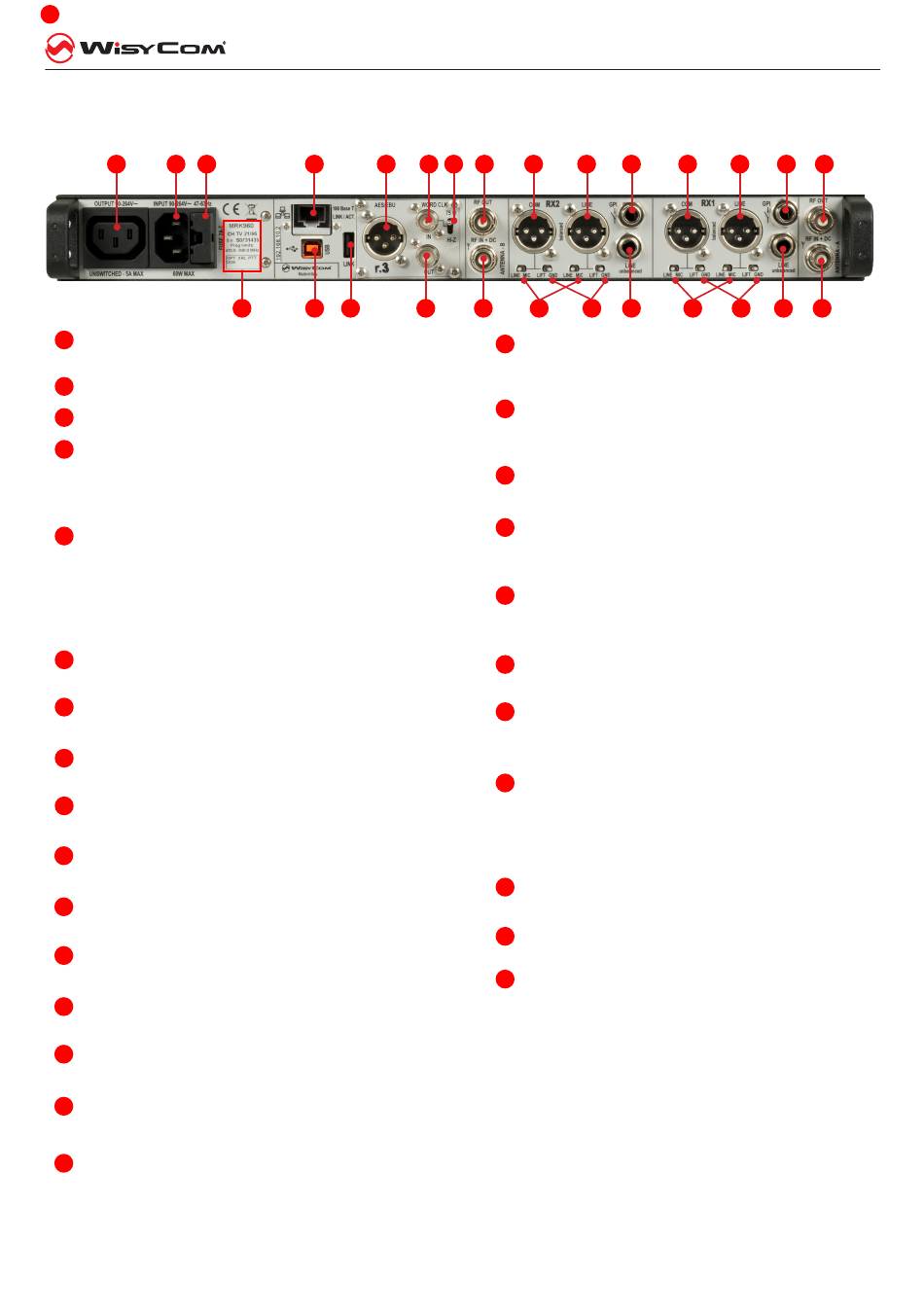

Rear panel
1 2 3
1Mains output. Do not connect more than 8
1
units.
Mains socket input.
2
Mains fuse (2A-T).
3
Ethernet connector RJ45 for LAN connection of
4
the receiver. The leds on the connectore indi-
cate the status of the connection (Link and Ac-
tivity).
AES/EBU XLR 3 pin output connector, digital
5
audio output transformer isolated, balanced.
This is part of the AES/EBU optional board, to-
ghether with 6, 7 and 22. Here it is possible to
install different option like Ethersound© I/O.
(Optional)
Word clock input for external syncronization of
6
digital audio output.
75 ohms termination switch for word clock in-
7
put.
Antenna B input, BNC connector, DC output for
8
booster power supply.
XLR 3 pin male connector, COM audio output of
9
the receiver 2, balanced. (Optional)
XLR 3 pin male connector, LINE audio output of
10
the receiver 2, balanced.
GPI output of the receiver 2, 1/4" (6,3mm) ste-
11
reo jack socket. (Optional)
XLR 3 pin male connector, COM audio output of
12
the receiver 1, balanced. (Optional)
XLR 3 pin male connector, LINE audio output of
13
the receiver 1, balanced.
GPI output of the receiver 1, 1/4" (6,3mm) ste-
14
reo jack socket. (Optional)
Antenna A input, BNC connector, DC output for
15
booster power supply.
Unbalanced LINE audio output of receiver 1,
16
1/4" (6,3mm) stereo jack socket.
Pag. 20
4
5
25 24 23
6 7 8 9 10
22 27 21 20
Switches for shorting the pin 1 of the XLR con-
17
nectors of receiver 1 to the receiver ground or
not.
Switches for attenuating the audio output le-
18
vel on the XLR connectors. The attenuation is
30dB.
Unbalanced LINE audio output of receiver 2,
19
1/4" (6,3mm) stereo jack socket.
Switches for shorting the pin 1 of the XLR con-
20
nectors of receiver 2 to the receiver ground or
not.
Switches for attenuating the audio output le-
21
vel on the XLR connectors. The attenuation is
30dB.
Word clock output, for daisy chain connection.
22
BNC connector. (Optional)
LINK connection, for cascade connection of re-
23
ceivers, for remote control functionality. USB-A
connector.
USB-B connector for PC connection if this
24
MRK960 is a subnet controller. If this MRK960
is part of a subnet, this connector must be con-
nected to the LINK connector of the previous
MRK960.
Product identification label.
25
Antenna A output, BNC connector (for antenna
26 splitting)
Antenna B output, BNC connector (for antenna
27
slipping)
MRK960 dual true diversity receiver
11 12 13
19 18 17
14 15
16 26
