Field Service Bulletin 801270
MAX200 U
6. Splice the lead pair marked 83 that indicates continuity to TB2 with the remote
switch black lead marked 34 as follows (see Figure 4):
• Cut off the white lead pair above the 83 fork connector.
• Strip back the insulation on both leads 3/8" (10 mm), twist leads together
and crimp into one end of a butt splice.
• Cut off the remote switch black lead marked 34 above the fork connector.
• Strip back the insulation on the lead 3/8" (10 mm) and then crimp the
lead into the other end of the butt splice.
Remote
Switch

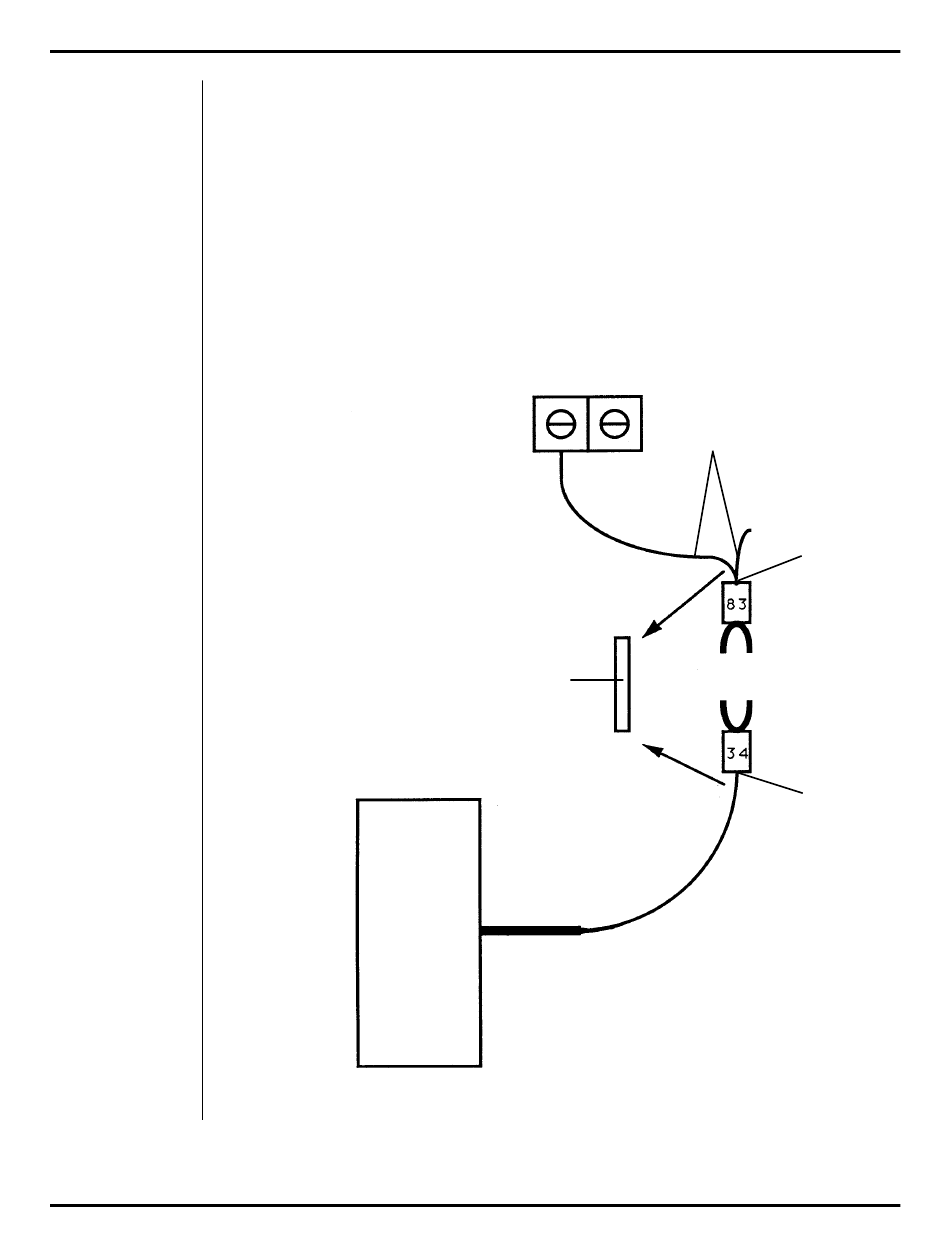

Figure 4 Splicing Remote Switch Wire 34 to Power Supply 83 Wires
NDERWATER
TB2
Butt splice
T S
ORCH UPPLEMENT
White lead pair
Cut here
Cut here
