Setup
Diver Safety Switch Connections
Field Service Bulletin 801270
See Section 3, Setup , in the MAX200 instruction manual 800870 to make all connections
to the MAX200 system.
To provide the diver with a margin of safety, underwater cutting also requires connecting
the remote switch 028328 in series with the torch start switch.
1. Looking at the power supply from the front, remove its right side cover.
2. Remove the power supply rear cover.
3. Route the remote switch cable through the feed-through at the rear of the power
supply. See Figure 1.

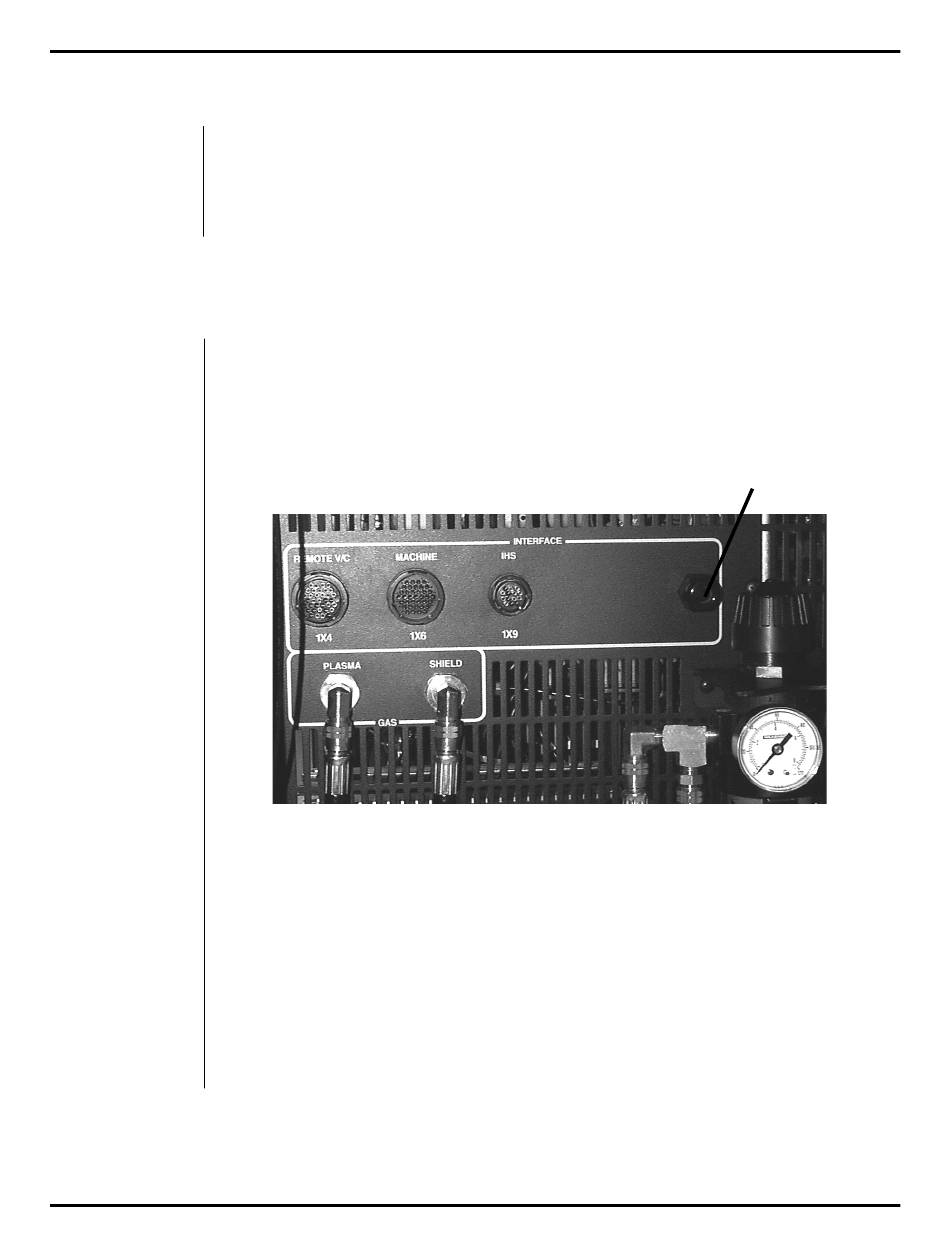

Figure 1 Remote Switch Feed-Through Location
MAX200 U
NDERWATER
T S
ORCH UPPLEMENT
Feed Through
Page 3
