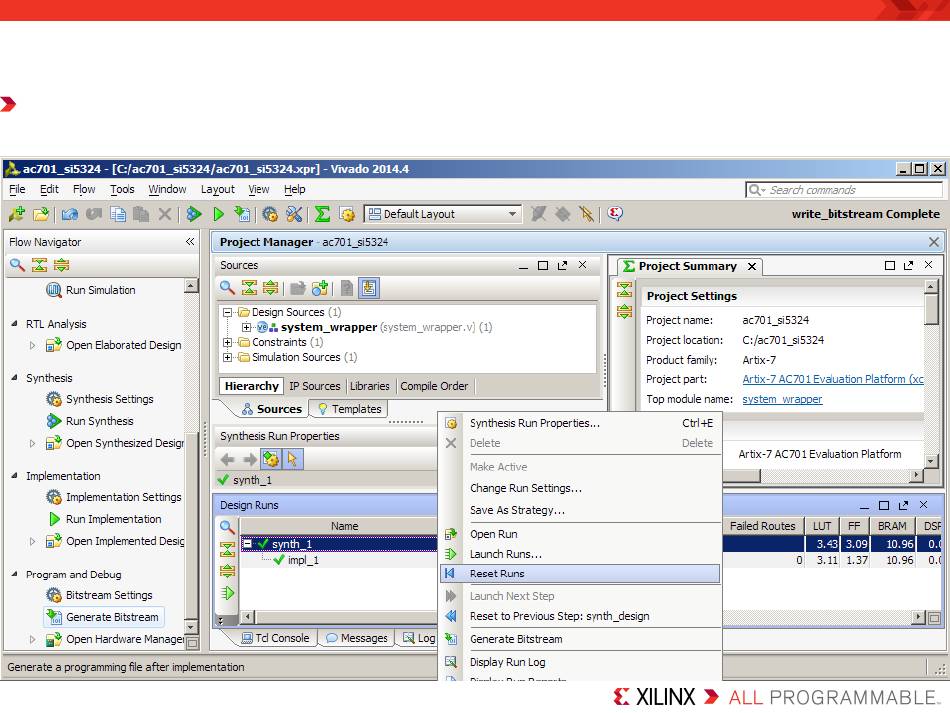

Compile AC701 Si5324 Design
The design is fully implemented; you can recompile, or export to SDK
– To recompile, right-click synth_1, select Reset Runs then Generate Bitstream
Note: Presentation applies to the AC701
