Gude Expert Power Control 8032-1 Manual page 52

Configuration

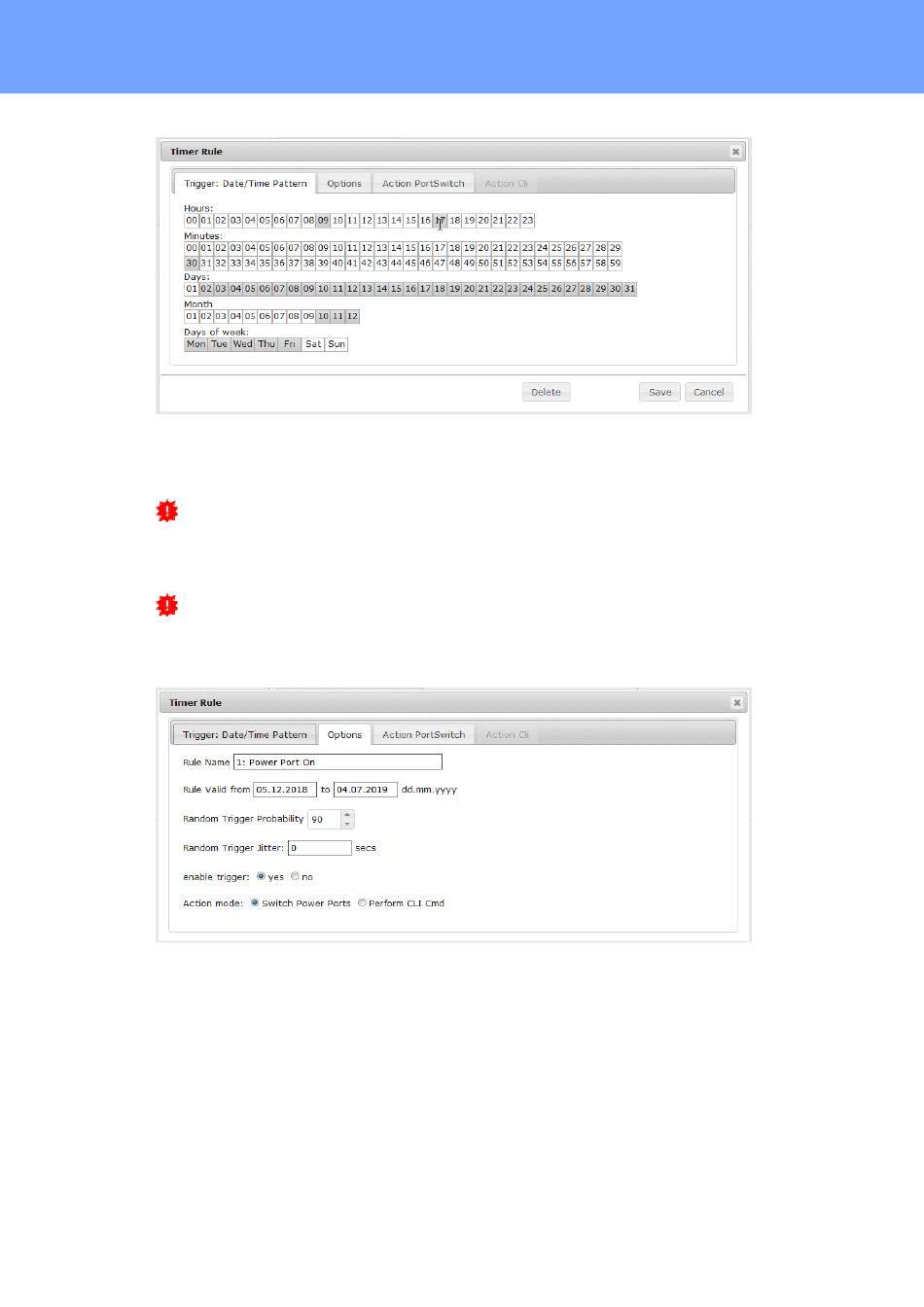

The action will now not only start at 9:30, but also at 17:30. There are more changes:
The timer is only active between October and December, also the action does not take
place on the first day of a month.
Since all fields in the mask are always taken into account, it is not possible to
define the times 9:30 and 17:10 in a single timer rule. You need a second rule for this.
If you set hours 9 and 17, as well as minutes 10 and 30, then the four times 9:10, 9:30,
17:10 and 17:30 would be programmed.
In order to change a field in this input mask without changing the state of the other
fields, the Ctrl key must be pressed during the mouse click.
With this rule, the time period in the "Options" tab is limited to the period between
December 5, 2018 and July 4, 2019. In this example, the timer rule is executed with a
random trigger probability of 90%.
