TP48200A-DX12A1 Telecom Power
User Manual

3.2 Power Distribution Unit

Table 3-1 Power distribution specifications
Item
Input system
AC power distribution
DC power distribution
Battery route

3.3 Rectifier

Rectifiers convert AC input into stable DC output.

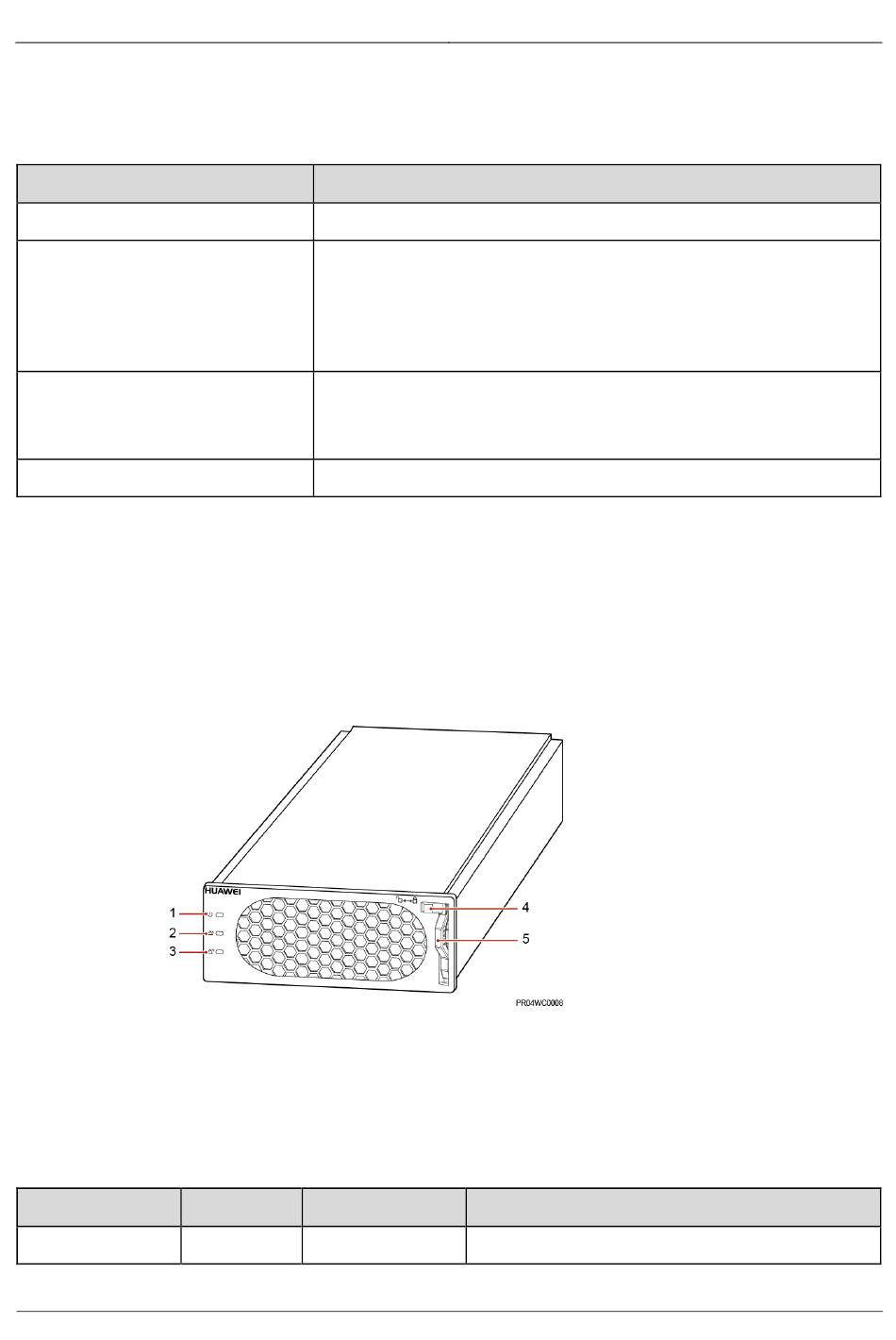

Figure 3-5 Rectifier
(1) Run indicator
(4) Locking latch
Table 3-2 Rectifier indicator description
Indicator
Run indicator
Issue 07 (2019-11-15)
TP48200A-DX12A1 (DC2)
220/380 V AC three-phase

AC input: two 3-pole 40 A circuit breakers, with a knob-type dual
power switch
 AC output: one German standard socket (with a 10 A RCD), one
1-pole 10 A circuit breaker, and AC light power terminals and one
time relay (5 A resistive load or 1 A capacitive load)

BLVD circuit breakers: 2x32 A/1P, 2x20 A/1P, 2x16 A/1P, 2x10
A/1P, 2x6 A/1P
 LLVD circuit breakers: 3x63 A/1P
One 2-pole 125 A circuit breaker
Color Status
Green Steady on
Copyright © Huawei Technologies Co., Ltd.
(2) Alarm indicator
(5) Handle
Description
The rectifier has an AC power input.
3 Components
(3) Fault indicator
22
