TP48200A-DX12A1 Telecom Power
User Manual

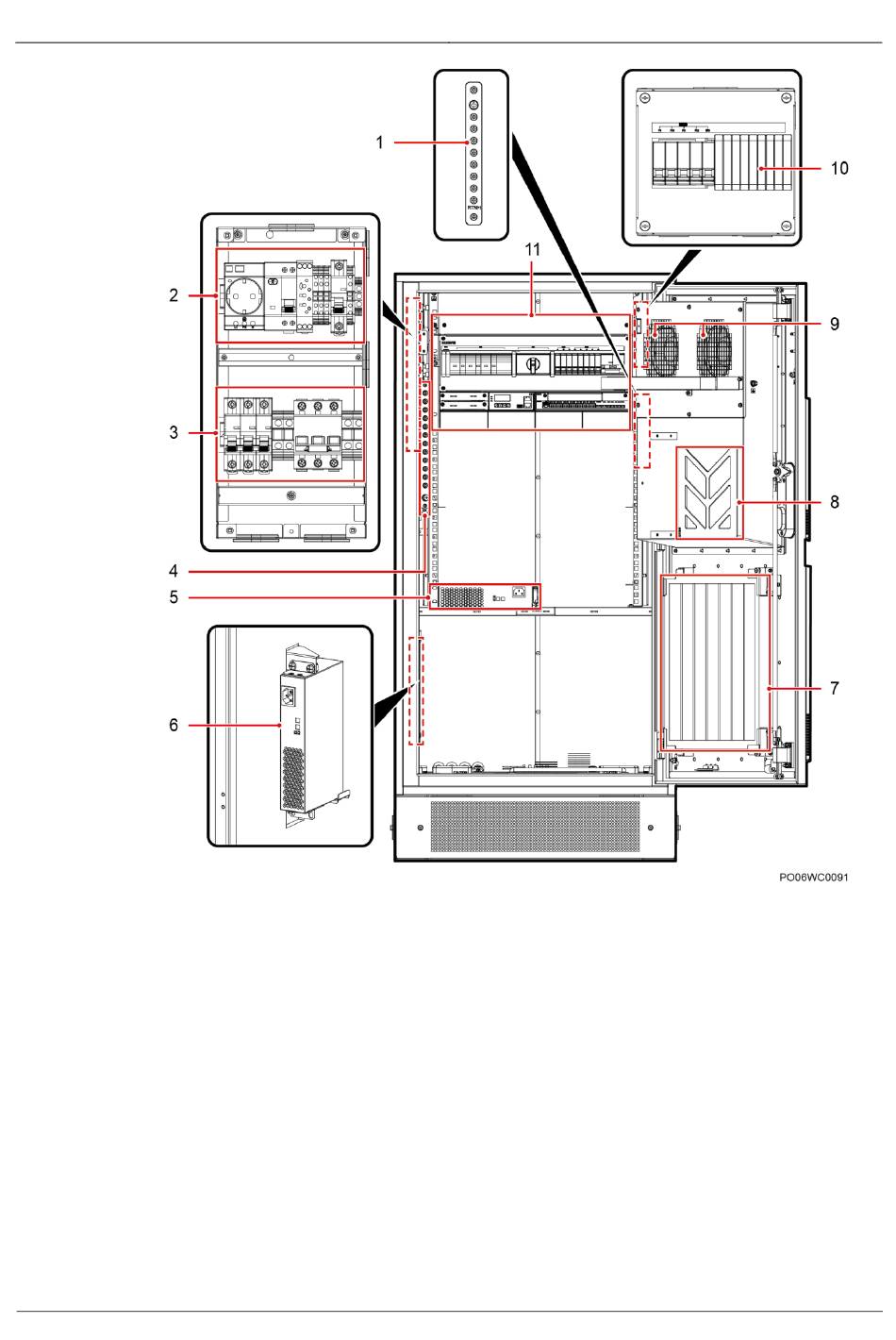

(1) RTN+ busbar
(4) Cabinet ground bar
(7) Air filter
(10) Battery low voltage disconnection
(BLVD) output box
Issue 07 (2019-11-15)
Copyright © Huawei Technologies Co., Ltd.
(2) AC output
(3) AC input unit
unit
(5) Heater
(6) Heater (standard)
(optional)
(8) Folder
(9) Direct ventilation
fan
(11) Power
subrack
3 Components
19
