TP48200A-DX12A1 Telecom Power
User Manual

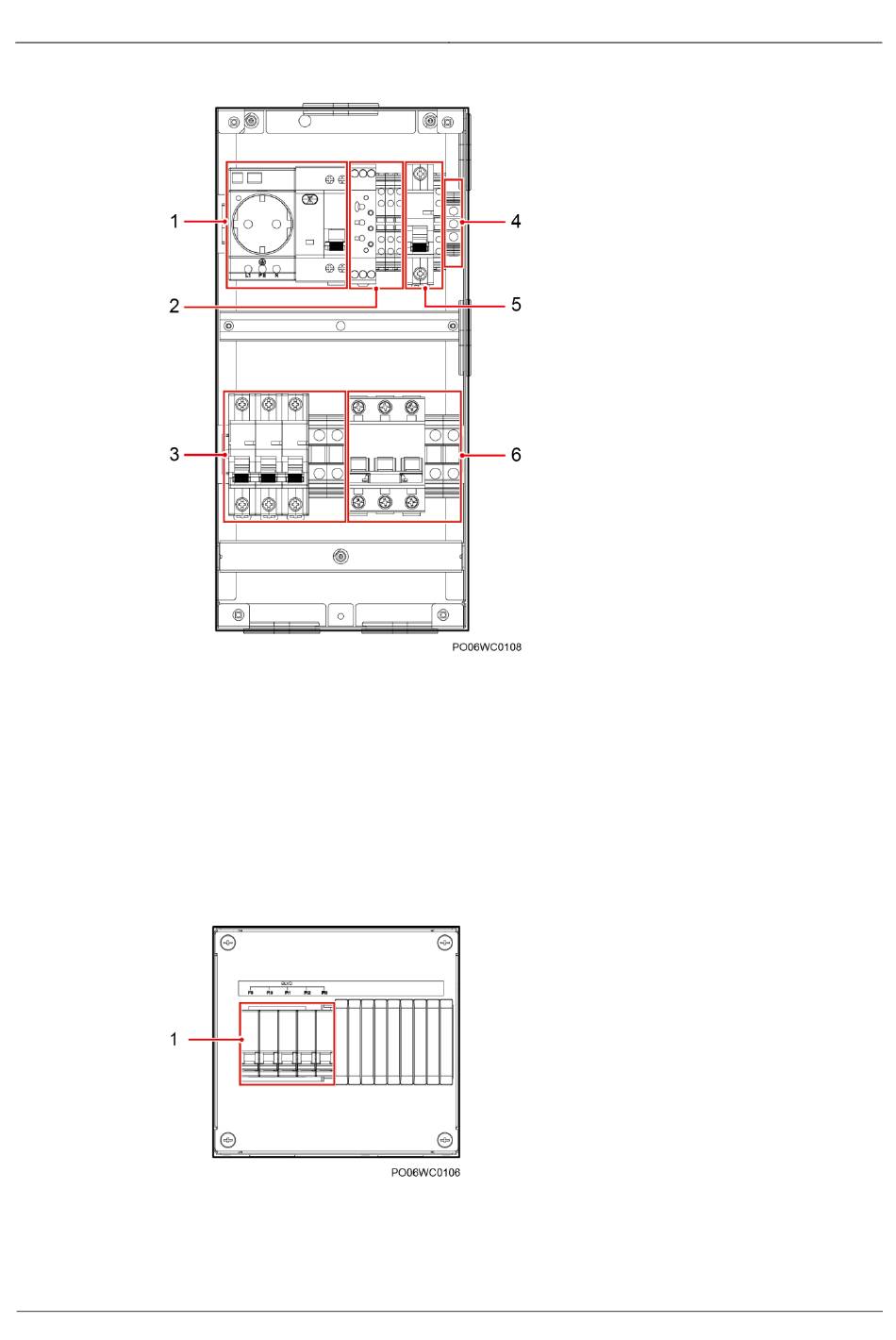

Figure 3-3 AC box without cover on TP48200A-DX12A1 (DC2)
(1) German standard maintenance
socket and protective circuit
breaker
(4) PE terminal
Figure 3-4 DC output box on TP48200A-DX12A1 (DC2)
(1) BLVD circuit breakers
Issue 07 (2019-11-15)
Copyright © Huawei Technologies Co., Ltd.
(2) AC light power
terminals and time
relay
(5) AC output circuit
breaker and terminal
3 Components
(3) AC input circuit breaker
and terminals
(6) Emergency AC input
circuit breaker and
terminals
