TP48200A-DX12A1 Telecom Power
User Manual

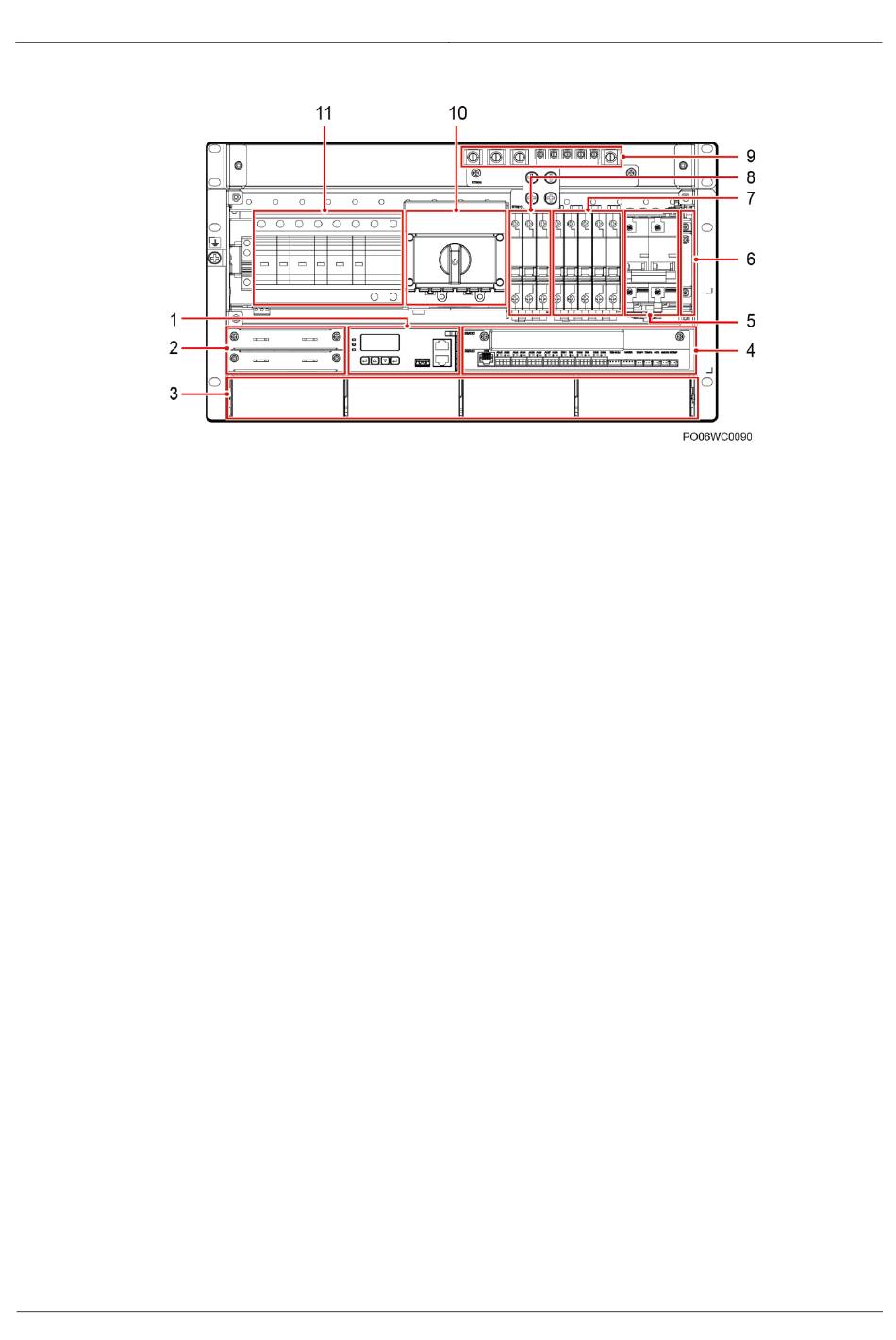

Figure 3-2 Power subrack on TP48200A-DX12A1 (DC2)
(1) SMU02B
(4) UIM02C
(7) BLVD circuit
breakers
(10) AC input
transfer switch
Issue 07 (2019-11-15)
(2) Space for NIM01C
(5) Battery circuit breaker
(8) Load low voltage disconnection
(LLVD) circuit breakers
(11) AC surge protective device (SPD)
Copyright © Huawei Technologies Co., Ltd.
3 Components
(3) Space for rectifiers
(6) Battery switch
(behind the cover)
(9) RTN+ busbar
