CAUTION:
make sure to disconnect at storage unit.
Failure to do so may cause personal injury
or property damage.
If you have a problem, question, or request, call
your local dealer, or Coalesse at 1.800.627.6770
Or visit our website: www.coalesse.com
©
2010 Coalesse
San Francisco, California U.S.A.
Printed in U.S.A.
Before moving this product,

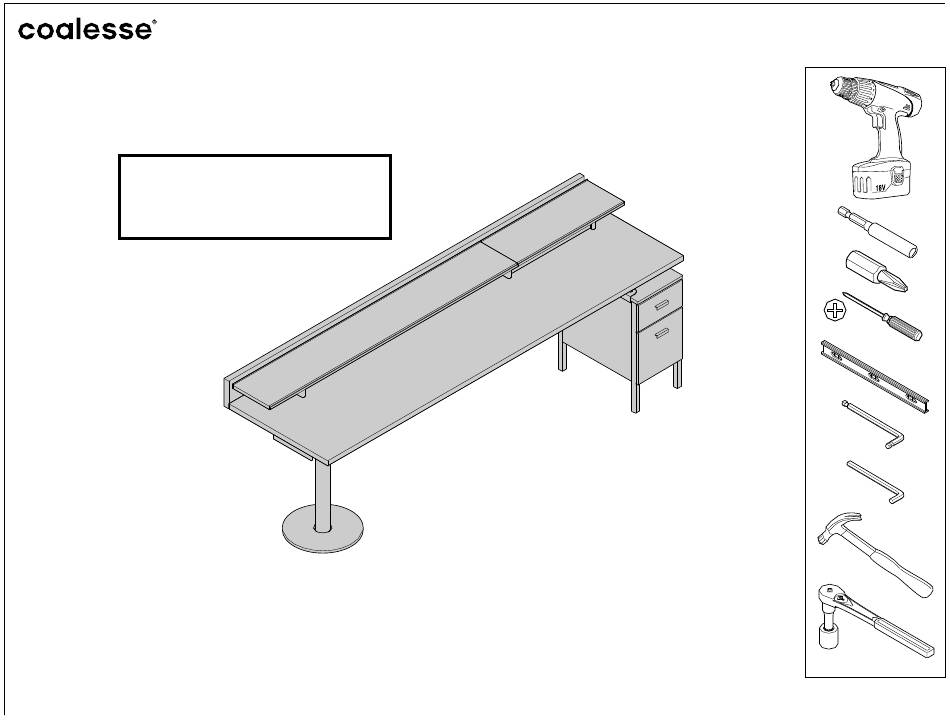

Topo
Biplane Assembly Instructions
5/32" BALL TIP
1/8"
7/16" SOCKET
Page 1 of 10
939500422 Rev D

Advertisement

loading
Need help?

Need help?

Do you have a question about the Topo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Coalesse Topo

  • Page 1 Failure to do so may cause personal injury or property damage. 5/32" BALL TIP 1/8" If you have a problem, question, or request, call your local dealer, or Coalesse at 1.800.627.6770 Or visit our website: www.coalesse.com 7/16" SOCKET © 2010 Coalesse Page 1 of 10 San Francisco, California U.S.A.
  • Page 2 Pull drawer forward from the pedestal (1a). Push tab on each side of the drawer rail (1b). Remove file drawer completely then remove box drawer. Push slide rails back into pedestal. LOOSEN SCREW Remove inner screws and loosen outer screws on trim piece (2a) then remove trim piece from pedestal REMOVE SCREW...
  • Page 3 Insert the pedestal attachment bracket where the Turn the worksurface upside down. trim piece was (3a). Use the same screws that held the trim piece to secure the new pedestal attachment TIP: Place the notched end of the worksurface bracket (3b). Place drawers back into pedestal. near the pedestal as shown.
  • Page 4 Attach the base (5a) and hyperglide (5b). Install cams to the correct depth by pushing the cam to the bottom of the hole (there are two different depths) and in the correct orientation (with arrow pointing in the direction of the corresponding hole) (5c).
  • Page 5 SLOT NOTE: Adjust hyperglide to contact the top of the storage unit. SLOT Place the t-nuts onto the pedestal attachment bracket loosely and orient as shown (6a). Flip workstation onto pedestal attachment bracket (6b). The tube ends of the clamp and t-nuts should fit into the slots in the rails: A to A and B to B (6c).
  • Page 6 NOTE: If a power strip has been ordered, install per the installation instructions with the power strip before step 7. Insert dowels (lightly hammer into place) and Drive remaining screw for PVD box into pins into holes on backsplash (7a). Align the backsplash.
  • Page 7 TOP VIEW OF DESK ALIGN Slide PVD shelf into fixed shelf assembly (9a). Align entire PVD SHELF shelf assembly with worksurface and feed bolts through (9b). Check height of PVD shelf relative to the fixed shelf. If uneven, loosen bolts on bushings, make appropriate adjustments to the height and retighten bolts (9c).
  • Page 8 Adjust table to desired height by locating each clamp on the pedestal attachment bracket and performing steps 10a through 10d. Place level onto worksurface (10e). Lift table and spin leg clockwise to extend or counter-clockwise to retract. Repeat on extension. Page 8 of 10 939500422 Rev D...
  • Page 9 BASE Attaching the Worksurface Extension MOUNTING BRACKET Turn the extension worksurface upside down. TIP: Place the extension worksurface near the base with the counterbored holes towards the worksurface as shown. Attach the base. WORKSTATION Attach the mounting bracket to the underside of the workstation as shown.
  • Page 10 MOUNTING BRACKET Attaching the Storage Extension Worksurface Turn the storage extension worksurface upside down. TIP: Place the storage extension worksurface near the base with the counterbored holes towards the worksurface as shown. Attach the mounting bracket to the underside of the workstation as shown.
