Montara650

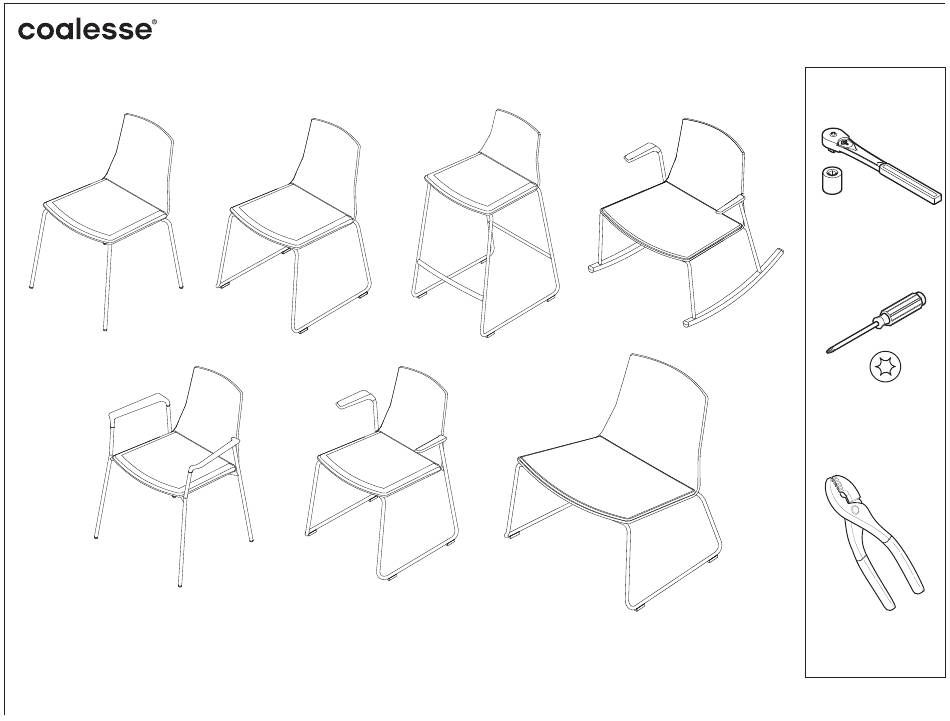

Seating Customer Service Instruction
10mm
If you have a problem, question, or request, call
your local dealer, or Coalesse at 1.800.627.6770
Or visit our website: www.coalesse.com
©
2016 Coalesse
San Francisco, California U.S.A.
Page 1 of 9
Printed in U.S.A.
74446 Rev C
