If you have a problem, question, or request, call
your local dealer, or Coalesse at 1.800.627.6770
Or visit our website: www.coalesse.com
©
2014 Coalesse
San Francisco, California U.S.A.
Printed in U.S.A.
™

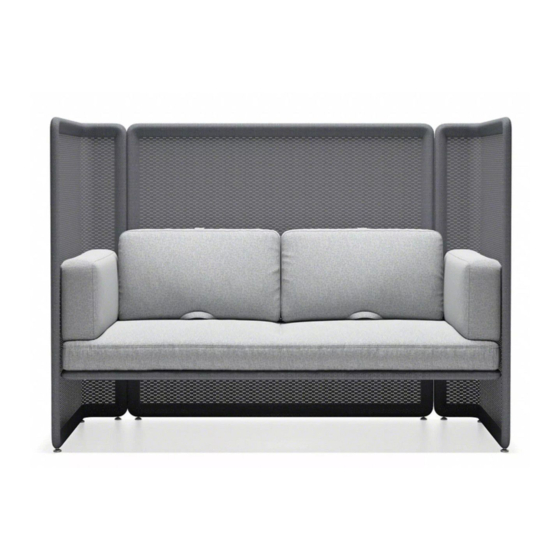

Lagunitas
Arm, Corner & Straight Back Cushion Replacement
STRAIGHT
BACK CUSHIONS
ARM CUSHIONS
CORNER
BACK CUSHIONS
Page 1 of 7
902507402 Rev A
Advertisement
Table of Contents
Related Manuals for Coalesse Lagunitas Arm, Corner & Straight Back Cushion
Summary of Contents for Coalesse Lagunitas Arm, Corner & Straight Back Cushion
- Page 1 CORNER STRAIGHT BACK CUSHIONS BACK CUSHIONS ARM CUSHIONS If you have a problem, question, or request, call your local dealer, or Coalesse at 1.800.627.6770 Or visit our website: www.coalesse.com © 2014 Coalesse San Francisco, California U.S.A. Page 1 of 7 Printed in U.S.A.
- Page 2 SEAT CUSHION SEAT CUSHION Remove Corner Back Cushions and Arm Cushions Remove the seat cushion by lifting up (they are attached with velcro). Remove the socket head bolt and washer that attaches the back mounting bracket to the seat frame. With the bolts removed, slide the mounting brackets forward about a 1/2 inch to disengage the mounting tabs in the rear rail.
- Page 3 Remove Corner Back Cushions and Arm Cushions (cont.) CORNER BACK CUSHION Remove the arm &/or corner back cushion by lifting up. ARM CUSHION Removal of Removal of Arm Cushions Corner Back Cushions Page 3 of 7 902507402 Rev A...
- Page 4 Corner Back Cushions Remove Corner Back Cushions and Arm Cushions (cont.) SOCKET HEAD BOLT Remove the mounting brackets by removing the socket head bolts from the back of the cushion. Reinstall a new cushion by reversing step 5 and tightening the bolts to 100 in-lbs. MOUNTING BRACKET Place the cushion assembly onto the seat frame (reversing...
- Page 5 Articulating Back Replacement Remove the seat cushion by lifting up (seat cushion is attached with velcro). Remove the socket head bolt and washer that attaches the back mounting bracket to the seat frame. With the bolts removed, slide the mounting brackets forward about a 1/2 inch to disengage the mounting tabs in the rear rail.
- Page 6 STRAIGHT BACK CUSHION Articulating Back Replacement (cont.) Remove the straight back cushions by lifting up. Page 6 of 7 902507402 Rev A...
- Page 7 Articulating Back Replacement (cont.) Rotate the mounting bracket assembly 180 degrees so you gain access to the socket head bolts. Remove the mounting bracket assembly by removing the socket head bolts from the back of the cushion. MOUNTING BRACKET ASSEMBLY Reinstall a new cushion by reversing step 6 and tightening the bolts to 100 in-lbs.
